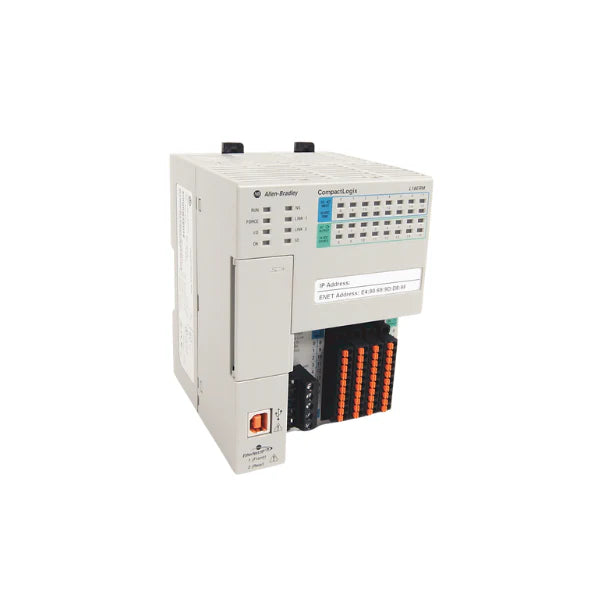

Allen-Bradley 1769-L18ERM-BB1B

Overview

Experience robust and efficient automation control with the Allen-Bradley 1769-L18ERM-BB1B CompactLogix 5370 L1 Programmable Automation Controller. This versatile controller ingeniously integrates a powerful processor, comprehensive embedded I/O, and advanced communication capabilities into a single, compact unit. Designed for modern industrial environments, the 1769-L18ERM-BB1B provides a streamlined solution for applications demanding high performance in a small footprint. With its 512 KB of user memory, engineers can execute complex control strategies effortlessly. The integration of dual Ethernet/IP ports, enhanced with Device Level Ring (DLR) capability, ensures seamless and resilient networking. Furthermore, its ability to support up to 2 axes of motion control over Ethernet/IP makes it an ideal choice for synchronized and precise motion applications, offering a comprehensive and scalable platform for a wide array of automation tasks.

Key Features

• Integrated Design: Combines processor, embedded I/O, and communication ports into a single, compact unit, reducing wiring and simplifying installation.
• Ample User Memory: Equipped with 512 KB of user memory to handle sophisticated control programs and data logging requirements.
• Embedded Digital I/O: Features 16 digital inputs (24V DC sink) and 16 digital outputs (24V DC source) for direct connection to sensors and actuators.
• Dual Ethernet/IP Ports with DLR: Provides robust and redundant network connectivity, ensuring high availability and fault tolerance for critical applications.
• 2-Axis Motion Control: Supports up to two CIP motion axes over Ethernet/IP, enabling precise and synchronized motion for robotic and positioning applications.
• Scalable I/O Expansion: Allows for seamless expansion with support for up to 8 local POINT I/O modules, offering flexibility to adapt to evolving application needs.
• Integrated 1 GB SD Card: Includes a Secure Digital (SD) card slot with a 1 GB SD card for convenient program storage, data logging, and easy system recovery.

Technical Specifications

• Model: 1769-L18ERM-BB1B
• Series: CompactLogix 5370 L1
• Power Supply: 24V DC
• Mounting: DIN rail
• Operating Temperature: 0°C to +60°C
• Dimensions (W x H x D): 100 mm x 131.6 mm x 105 mm
• Weight: Approximately 0.7 kg
• Certifications: CE, UL, cUL, ATEX, Class I Div 2

Applications

• Compact Machine Control: Ideal for small to medium-sized machines requiring integrated control and communication.
• Material Handling Systems: Optimizes conveyor systems, robotic pick-and-place, and automated storage and retrieval systems with integrated motion.
• Packaging Equipment: Enhances the precision and speed of packaging machinery, including fillers, sealers, and labelers.
• OEM Automation Solutions: Provides a versatile and cost-effective control platform for original equipment manufacturers building specialized automated systems.
• Process Control: Suitable for batch processing and continuous control applications where compact size and reliable operation are critical.
• Facility Automation: Can be applied in building management systems and utility control for monitoring and operating various plant equipment.

Why Choose This Model?

• All-in-One Solution: Consolidates processing power, I/O, and motion control into a single, highly efficient unit, reducing complexity and installation time.
• Enhanced Network Reliability: Dual Ethernet/IP ports with Device Level Ring (DLR) functionality offer superior network uptime and resilience, minimizing production downtime.
• Flexible Expansion Capabilities: Easily adapts to changing application requirements through seamless integration with up to 8 local POINT I/O modules, providing a future-proof solution.
• Space-Saving Design: Its compact form factor is perfect for installations where panel space is at a premium, without sacrificing performance or functionality.
• Simplified Motion Integration: Built-in support for 2-axis CIP motion over Ethernet/IP simplifies the development and deployment of precise motion control applications.
• Trusted Allen-Bradley Quality: Benefit from the renowned reliability, performance, and global support associated with Allen-Bradley industrial automation products.

Order Now

Elevate your automation systems with the Allen-Bradley 1769-L18ERM-BB1B CompactLogix 5370 L1 controller. Leverage its integrated features, robust communication, and scalable design to optimize your operations. Enjoy fast shipping and worldwide delivery options to get your system up and running quickly. Discover the complete range of CompactLogix Controllers and explore our extensive Allen-Bradley Industrial Automation Products master category for drives, motors, HMIs, and accessories.
