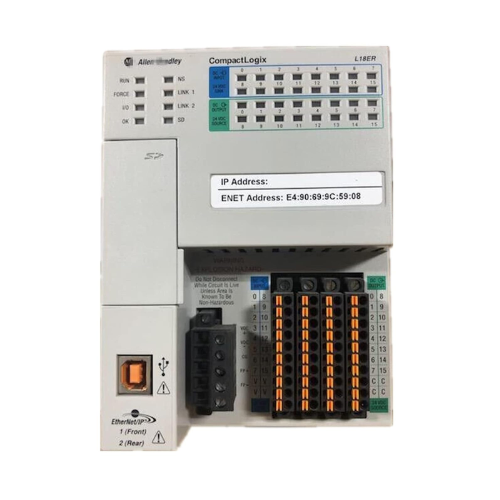

Allen-Bradley 1769-L18ER-BB1B

Overview

The Allen-Bradley 1769-L18ER-BB1B is a high-performance CompactLogix 5370 L1 controller meticulously engineered for compact automation systems where space is at a premium and robust performance is non-negotiable. This versatile controller seamlessly integrates 512 KB of user memory, comprehensive embedded digital I/O, and dual EtherNet/IP ports, facilitating integrated communication and precise motion control across EtherNet/IP networks. It represents an ideal solution for a multitude of industrial applications, delivering reliability and efficiency in a compact form factor that is synonymous with the Allen-Bradley brand.

Designed for optimal integration, the 1769-L18ER-BB1B controller provides a powerful and cost-effective solution for small to medium-sized applications. Its compact footprint does not compromise on functionality, offering advanced control capabilities that enhance operational efficiency and reduce overall system complexity. Whether you're modernizing an existing setup or designing a new automation system, this CompactLogix controller stands out as a superior choice for intelligent and flexible control.

Key Features

• Integrated Memory: Features 512 KB of user memory, providing ample space for complex application programs and data storage.
• Embedded Digital I/O: Comes equipped with 16 digital inputs and 16 24V DC digital outputs, streamlining wiring and panel design.
• Dual EtherNet/IP Ports: Two 1 Gb EtherNet/IP ports enable high-speed communication and support Device Level Ring (DLR) topology for network resilience.
• CIP Motion Support: Capable of controlling up to 2 axes of CIP Motion, offering integrated motion control solution over Ethernet.
• USB Programming Port: Includes a convenient USB port for easy and direct programming and configuration.
• Expandable Architecture: Supports the addition of up to 4 local 1769 I/O modules, allowing for scalable system expansion.
• Integrated Real-Time Clock: Ensures accurate time-stamping and scheduling within your automation processes.

Technical Specifications

• Model: 1769-L18ER-BB1B
• Series: CompactLogix 5370 L1
• Power Supply Voltage: 24V DC
• Current Draw: 900 mA at 5V DC
• I/O Memory: 0.38 MB
• Program Scan Time: 1 µs per instruction
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Mounting: DIN rail compatible for easy installation.
• Dimensions (W x H x D): 140 mm x 110 mm x 105 mm
• Weight: Approximately 0.8 kg
• Certifications: CE, UL, c-UL, ATEX, Class I Div 2, ensuring compliance with global industrial standards.

Applications

• Compact Machines and Skid Systems: Perfectly suited for applications where space is confined, yet high performance is required.
• Material Handling: Provides reliable control for conveyors, sorters, and other material handling equipment, optimizing throughput.
• Packaging Lines: Enhances the efficiency and precision of packaging machinery, reducing downtime and improving production rates.
• Small Process Control Systems: Delivers robust and stable control for various small-scale process automation tasks.
• Building Automation: Can be integrated into intelligent building systems for enhanced control of HVAC, lighting, and security.
• Water/Wastewater Treatment: Offers reliable control for pumping stations and filtration systems in municipal and industrial settings.

Why Choose This Model?

• All-in-One Solution: The 1769-L18ER-BB1B provides an integrated control solution with embedded I/O, reducing the need for additional modules and simplifying system architecture.
• Enhanced Network Connectivity: Dual EtherNet/IP ports with DLR support offer superior network flexibility and fault tolerance, ensuring continuous operation.
• Optimized for Space: Its compact design allows for installation in tight panel spaces, making it ideal for applications with strict footprint requirements.
• Reliable Allen-Bradley Quality: Built with the renowned quality and durability of Allen-Bradley products, guaranteeing long-term performance and minimal maintenance.
• Scalable and Flexible: While compact, its ability to integrate with additional 1769 I/O modules means your system can grow as your needs evolve.
• Cost-Effective Performance: Delivers advanced control capabilities at a competitive price point, offering excellent value for small to medium automation projects.

Order Now

Elevate your automation system with the Allen-Bradley 1769-L18ER-BB1B CompactLogix 5370 L1 Controller. Benefit from fast shipping and worldwide delivery options to get your project moving without delay. Explore the full range of our CompactLogix Controllers and discover why Allen-Bradley remains the trusted name in industrial automation. Visit our Allen-Bradley Industrial Automation Products master category to view our complete inventory of controllers, drives, motors, HMIs, and accessories, and find the perfect components to complete your industrial solution.
