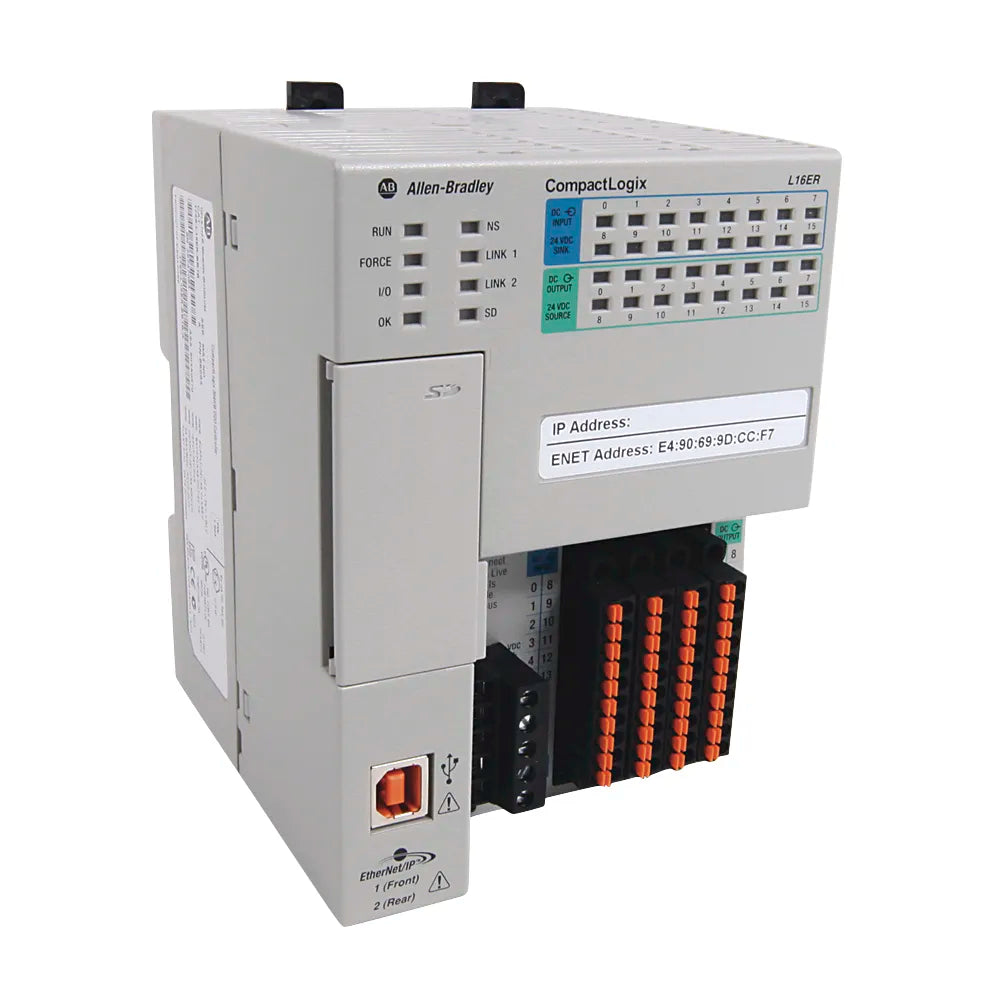

Allen-Bradley 1769-L16ER-BB1B

Overview

The Allen-Bradley 1769-L16ER-BB1B is a high-performance CompactLogix 5370 L1 processor module meticulously engineered for the demands of modern industrial automation. This robust controller seamlessly integrates EtherNet/IP communication, comprehensive integrated I/O, and flexible expansion capabilities, making it an indispensable component for a wide array of applications. Its dual Ethernet ports, equipped with Device Level Ring (DLR) functionality, guarantee unparalleled network redundancy and reliability, minimizing downtime and ensuring continuous operational efficiency. With 384KB of user memory, this powerful controller is capable of executing complex control programs with speed and precision. Its integrated I/O includes 16 x 24V DC digital inputs and 16 x 24V DC digital outputs, allowing for direct and efficient control of field devices. Furthermore, the 1769-L16ER-BB1B supports up to 6 expansion modules via 1734 POINT I/O, providing exceptional system scalability to adapt to evolving automation requirements. Designed for compact installations, it operates on a 24V DC power supply and utilizes a POINT I/O backplane, solidifying its position as an ideal compact yet powerful control solution. Enhanced with a 1GB SD card (expandable to 2GB), this processor module ensures efficient data storage, reliable backup, and streamlined system configuration, making it a cornerstone for advanced industrial control.

Key Features

• CompactLogix 5370 L1 Processor Module: Optimized design for space-saving installations in industrial control panels without compromising performance.
• Dual Ethernet Ports with DLR: Provides robust network redundancy and high-availability communication through Device Level Ring (DLR) support.
• 384KB User Memory: Ample memory ensures efficient execution of complex control programs and data handling for demanding applications.
• Integrated 16 x 24V DC Digital Inputs & 16 x 24V DC Digital Outputs: Direct and precise control over field devices, reducing wiring and simplifying system architecture.
• Expandable with 6 Modules (1734 POINT I/O): Offers significant system scalability and flexibility to integrate additional I/O and specialized modules as needs grow.
• 4 EtherNet/IP Nodes Supported: Facilitates seamless integration into broader industrial networks, enhancing connectivity and data exchange.
• 1 x USB Programming/Downloading Port: Enables rapid and convenient configuration, programming, and firmware updates for streamlined system management.

Technical Specifications

• Model: 1769-L16ER-BB1B
• Processor Series: CompactLogix 5370 L1
• Memory: 384KB User Memory
• Ethernet Ports: 2 x EtherNet/IP with DLR Capability
• USB Port: 1 x USB for Programming/Downloading
• Integrated I/O: 16 Digital Inputs (24V DC), 16 Digital Outputs (24V DC)
• I/O Expansion Capacity: 6 Modules via 1734 POINT I/O
• EtherNet/IP Nodes: Up to 4
• Power Supply: 24V DC
• SD Card Support: 1GB (included), expandable to 2GB
• Mounting Type: DIN Rail

Applications

• Factory Automation: Provides real-time control and communication for optimizing manufacturing processes and improving productivity.
• Process Control Systems: Supports stable, scalable, and reliable automation solutions for diverse industrial processes.
• Machine Interface Management: Enables direct and efficient control of digital inputs/outputs for various machinery.
• SCADA & Distributed I/O Systems: Seamlessly integrates via EtherNet/IP for comprehensive supervisory control and data acquisition, spanning across distributed architectures.
• Packaging and Material Handling: Ideal for controlling high-speed and precision-driven packaging and material handling lines.

Why Choose This Model?

• Optimized Performance: Experience efficient processing and reliable control even in the most demanding industrial environments.
• Enhanced Connectivity: Dual Ethernet with DLR capability ensures robust and redundant network communication, a critical factor for uptime.
• Integrated & Expandable I/O: Enjoy the convenience of integrated I/O along with the flexibility to expand, adapting to changing application requirements effortlessly.
• Compact Design: Its small footprint and DIN rail mounting make it an ideal choice for space-constrained control panels without sacrificing functionality.
• Data Storage & Backup: The included 1GB SD card and expansion up to 2GB provide secure data storage and easy backup, protecting your valuable operational data.

Order Now

Unlock the full potential of your industrial automation with the Allen-Bradley 1769-L16ER-BB1B CompactLogix Ethernet Processor. Benefit from fast shipping and worldwide delivery options to get your system up and running without delay.

Return to our CompactLogix Controllers main category to explore all models and specifications within this esteemed family. For a complete range of industrial automation solutions, including controllers, drives, motors, HMIs, and accessories, visit our Allen-Bradley Industrial Automation Products master category.
