Allen-Bradley 1769-IQ32K

Overview

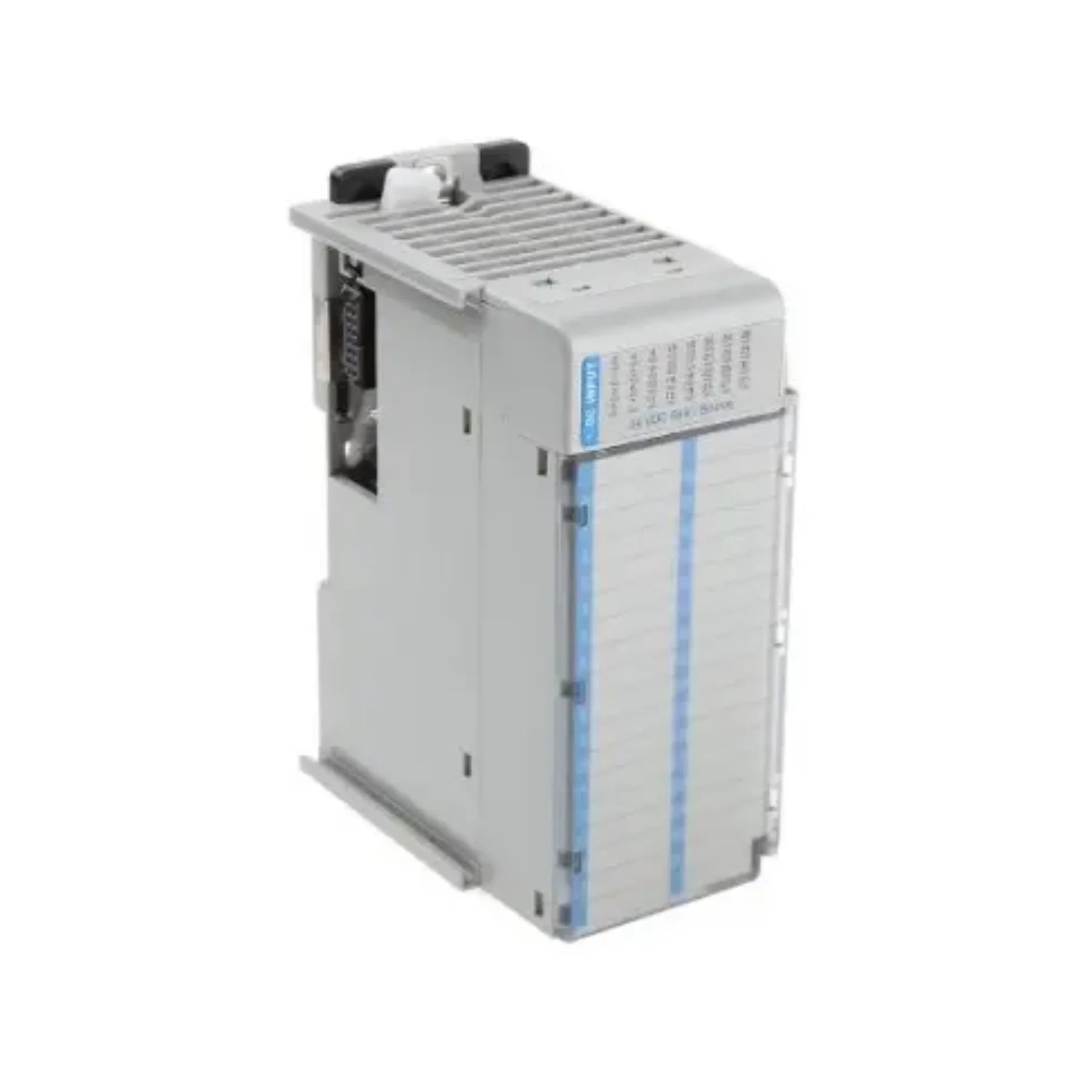

Unlock superior control and efficiency in your automation systems with the Allen-Bradley 1769-IQ32K, a high-density 32-point 24V DC digital input module. Engineered within the renowned Compact I/O™ family, this module is specifically designed for space-constrained industrial applications where reliability and performance are paramount. Its robust conformal coating provides exceptional protection against humidity and corrosion, making it an ideal choice for the most demanding operating environments. Seamlessly compatible with both CompactLogix™ and MicroLogix™ 1500 programmable logic controller platforms, the 1769-IQ32K ensures effortless integration and expanded input capabilities.

The 1769-IQ32K maximizes input density without significantly increasing your control panel's footprint, allowing for streamlined designs and reduced installation costs. Whether you are upgrading an existing system or implementing a new one, this Allen-Bradley digital input module delivers the precision and durability expected from a global leader in industrial automation.

Key Features

• High-Density 32-Point Digital Input: Provides extensive input capacity in a compact form factor, perfect for complex applications.
• 24VDC Sourcing/Sinking Compatibility: Offers versatile integration with a wide range of industrial sensors and devices.
• Conformal Coating for Harsh Environments: Delivers enhanced protection against moisture, dust, and corrosive elements, extending lifespan.
• CompactLogix™ and MicroLogix™ 1500 Integration: Ensures seamless compatibility and ease of use within existing Rockwell Automation systems.
• Clear LED Status Indicators: Individual LEDs for each input point allow for quick and easy diagnostics and troubleshooting.
• Flexible Mounting Options: Designed for convenient DIN rail or panel mounting, adapting to various installation requirements.
• Robust Rockwell Automation Quality: Built to the highest standards of reliability and performance for continuous industrial operation.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1769-IQ32K
• Input Type: Digital (Sinking/Sourcing)
• Number of Inputs: 32
• Voltage Range: 10–30V DC (nominal 24V DC)
• Input Delay Time: Off to On: 8 ms | On to Off: 8 ms
• Backplane Current (5V): 135 mA
• Backplane Current (24V): 0 mA
• Isolation Voltage: 75V DC working
• Input Current @ 24V DC: 6.4 mA per point
• Commons: 4 (8 points per common)
• Mounting: DIN rail or panel mount
• Dimensions (HxWxD): 118 mm x 35 mm x 87 mm
• Weight: Approximately 280 g
• Operating Temperature: 0 to 60 °C
• Certifications: UL, CE, CSA

Applications

• Advanced Machine Automation: Ideal for systems requiring a large number of digital inputs from various sensors and control devices.
• Space-Constrained PLC Panels: Its compact design makes it perfect for installations where panel space is at a premium.
• Harsh Industrial Environments: The conformal coating ensures reliable operation in high humidity, dusty, or corrosive atmospheres.
• Process Control and Monitoring: Effectively acquires input signals from push buttons, limit switches, proximity sensors, and other field devices.
• Building Management Systems: Can be integrated for monitoring a multitude of environmental or security inputs.
• Material Handling Systems: Provides precise input acquisition for conveyor lines, robotic cells, and sorting equipment.

Why Choose This Model?

• Unmatched Input Density: Efficiently expands your system's input capacity without demanding additional valuable panel real estate.
• Exceptional Durability: The conformal coating significantly extends the module's lifespan and ensures consistent performance in challenging conditions.
• Seamless System Integration: Designed for effortless compatibility with your existing CompactLogix or MicroLogix 1500 platforms, simplifying upgrades.
• Reliable Performance: Backed by the trusted reputation and engineering excellence of Rockwell Automation, guaranteeing long-term operational stability.
• Simplified Diagnostics: Individual LED indicators for each input streamline troubleshooting, minimizing downtime and maintenance efforts.
• Global Certifications: UL, CE, and CSA certifications confirm adherence to international safety and quality standards, allowing for worldwide deployment.

Order Now

Elevate the capabilities of your CompactLogix or MicroLogix system today with the Allen-Bradley 1769-IQ32K 32-point digital input module. Experience the benefits of high-density input, robust environmental protection, and the reliability that only Allen-Bradley can provide. Integrate this powerful module into your control architecture for efficient and precise digital input handling across all your critical applications.

Explore our full range of CompactLogix Controllers and discover all available models and specifications within this versatile family. For a comprehensive look at our industrial automation offerings, visit our main Allen-Bradley Industrial Automation Products category, featuring a complete selection of controllers, drives, motors, HMIs, and accessories.
