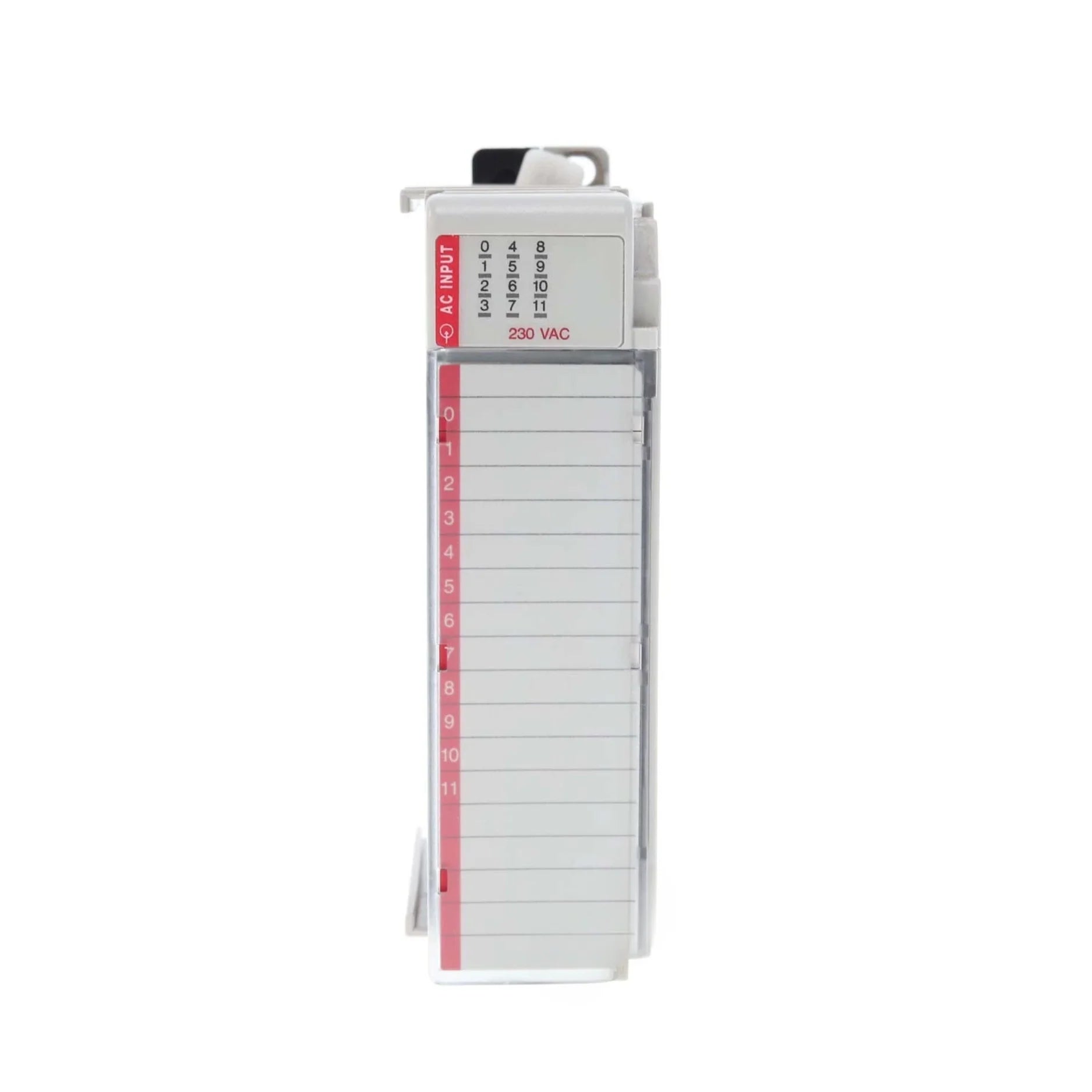

Allen-Bradley 1769-IM12

Overview

Elevate the performance and reliability of your industrial automation systems with the Allen-Bradley 1769-IM12, a high-performance 12-channel AC input module. Specifically engineered for seamless integration with 240V AC signals, this robust module is an indispensable component for CompactLogix and MicroLogix control platforms. Part of the renowned Compact I/O series, the 1769-IM12 delivers unparalleled precision in signal acquisition, ensuring accurate data transfer and enhanced operational efficiency. Its isolated design and internally connected commons provide superior electrical protection and simplified wiring, making it a reliable choice for managing critical input signals in diverse industrial environments.

Key Features

• 12 Discrete AC Input Channels: Provides ample capacity for multiple signal monitoring with a single group of 12 internally connected commons.
• 240V AC Voltage Input: Reliably processes high-voltage AC signals, making it ideal for a wide range of industrial applications.
• Seamless CompactLogix & MicroLogix Integration: Designed for optimal compatibility with these popular control systems, ensuring effortless setup and operation.
• Compact & Efficient Form Factor: Its space-saving design is perfect for installations where panel real estate is at a premium, allowing for more efficient system layouts.
• Internally Connected Commons: Simplifies wiring and reduces installation time by providing a single common connection for all input channels.
• Flexible Mounting Options: Supports both DIN rail and panel mount installations, offering versatility to suit various enclosure configurations.
• Advanced Diagnostics: Features individual input LEDs for quick and easy status monitoring, aiding in troubleshooting and maintenance.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1769-IM12
• Input Type: AC Discrete
• Number of Inputs: 12
• Voltage Range: 159–264V AC @ 47–63 Hz
• Input Delay Time: 20 ms (on/off)
• Backplane Current (5V): 130 mA
• Backplane Current (24V): 0 mA
• Isolation Voltage: 265V AC (continuous), basic insulation
• Commons: Internally connected (single group)
• Mounting: DIN rail or panel mount
• Removable Terminal Block: Yes (sold separately)
• Status Indicators: Individual input LEDs
• Operating Temperature: 0 to 60 °C (32 to 140 °F)
• Dimensions (HxWxD): 118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in)
• Weight: Approximately 280 g (0.62 lbs)
• Certifications: UL, CE, CSA

Applications

• Industrial Control Panels: Perfectly suited for integrating 220–240V AC inputs into complex control systems, ensuring reliable data acquisition.
• Legacy System Modernization: Facilitates seamless interfacing with older equipment and sensors, extending the lifespan and functionality of existing infrastructure.
• Factory Automation: Essential for highly automated manufacturing environments to monitor machinery, sensors, and process conditions with precision.
• Equipment Monitoring & Diagnostics: Provides accurate status indication for various pieces of equipment, aiding in preventative maintenance and operational oversight.
• Building Management Systems: Can be utilized to integrate and monitor AC signals from various building utilities and security systems.

Why Choose This Model?

• Unmatched Precision for 240V AC: Engineered to accurately handle and process high-voltage AC inputs, ensuring data integrity and system stability.
• Optimized for Compact I/O Architecture: Experience perfect compatibility and integration within your CompactLogix or MicroLogix systems for streamlined operation.
• Superior Reliability & Durability: Built with Rockwell Automation's renowned quality standards, guaranteeing long-term performance in demanding industrial environments.
• Simplified Installation & Maintenance: Features like the removable terminal block (not included) and individual input LEDs significantly reduce setup time and facilitate efficient troubleshooting.
• Global Industry Standard: Leverages Allen-Bradley's reputation as a leader in industrial automation, providing a trusted and widely supported solution.
• Enhanced System Efficiency: By providing accurate and timely input data, the 1769-IM12 helps optimize control processes and overall system performance.

Order Now

Upgrade your industrial control system today with the Allen-Bradley 1769-IM12 AC input module. Capitalize on its robust design, precise signal handling, and seamless integration capabilities to enhance the efficiency and reliability of your CompactLogix or MicroLogix platforms. Experience the confidence that comes with using a genuine Allen-Bradley product, backed by decades of industrial innovation.
