Allen-Bradley 1769-IF4XOF2

Overview

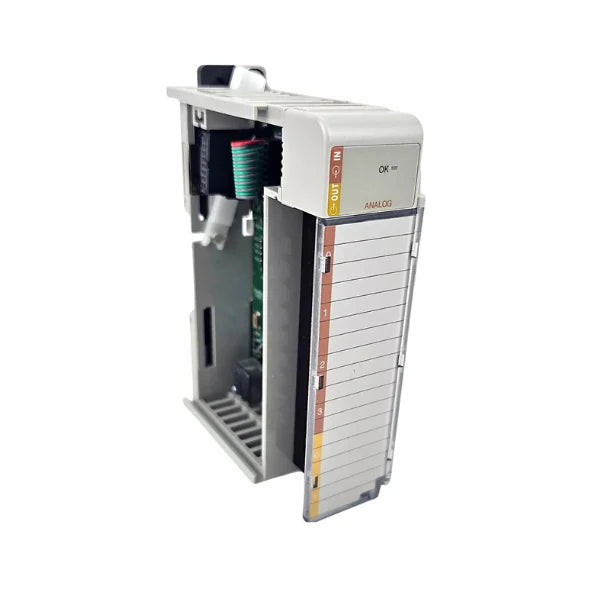

The Allen-Bradley 1769-IF4XOF2 is a cutting-edge Compact I/O analog combination module engineered to streamline your industrial automation applications. This versatile unit expertly integrates four analog inputs and two analog outputs into a single, space-efficient design, making it an invaluable component for control systems where panel real estate is at a premium. Specifically designed for seamless compatibility with Allen-Bradley CompactLogix and MicroLogix 1500 programmable logic controllers, the 1769-IF4XOF2 supports a broad spectrum of voltage and current signal ranges, ensuring precise and reliable analog signal integration across diverse industrial environments. From meticulous process monitoring to dynamic actuator control and comprehensive sensor feedback, this module is the ideal solution for sophisticated analog measurement and control requirements within a unified, high-performance package.

Key Features

• Integrated Analog I/O: Combines 4 configurable analog inputs and 2 analog outputs, optimizing system architecture and reducing wiring complexity.
• Versatile Signal Support: Accommodates both voltage (±10V, 0–10V, 0–10V) and current (0–20 mA, 4–20 mA, 4–20 mA) signal types for broad application flexibility.
• Exceptional Precision: Boasts high resolution (15 bits for inputs, 14 bits for outputs) and accuracy (±0.5% full scale typical) for critical control applications.
• Compact & Robust Design: Minimizes panel footprint, offering significant space savings in control cabinets without compromising on industrial durability.
• Effortless Installation & Maintenance: Features a removable terminal block (RTB) for quick, tool-free wiring and simplified module replacement.
• Seamless Controller Integration: Fully compatible with Allen-Bradley CompactLogix and MicroLogix 1500 controllers for existing and new system designs.
• Standardized Mounting: Designed for convenient DIN-rail mounting, ensuring straightforward integration into standard industrial enclosures.

Technical Specifications

The Allen-Bradley 1769-IF4XOF2 is built to the highest industrial standards, offering robust performance and reliable operation. Here's a detailed breakdown of its technical attributes:

• Catalog Number: 1769-IF4XOF2
• Analog Inputs: 4 channels
• Analog Input Voltage Ranges: ±10V, 0–10V
• Analog Input Current Ranges: 0–20 mA, 4–20 mA
• Analog Outputs: 2 channels
• Analog Output Voltage Range: 0–10V
• Analog Output Current Range: 4–20 mA
• Input Resolution: 15 bits
• Output Resolution: 14 bits
• Accuracy: ±0.5% full scale (typical)
• Backplane Current Draw (5V DC): 120 mA
• Backplane Current Draw (24V DC): 50 mA
• Mounting Type: DIN Rail
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Removable Terminal Block: Included
• Module Type: Compact I/O Analog Combination Module
• Compatibility: CompactLogix and MicroLogix 1500 Controllers

Applications

The versatility of the Allen-Bradley 1769-IF4XOF2 makes it an ideal choice for a wide array of industrial applications requiring integrated analog control and measurement:

• Advanced Industrial Process Control: Perfectly suited for sophisticated control loops where simultaneous sensor input and actuator output are critical for maintaining process stability and efficiency.
• Original Equipment Manufacturer (OEM) Machinery: Provides a cost-effective and space-saving solution for integrating analog signals within custom-built machinery, enhancing functionality and reducing overall system complexity.
• Precise Environmental Monitoring: Essential for accurate monitoring and control of variables such as temperature, pressure, flow, and level in critical manufacturing and environmental systems.
• Optimized Automation Panels: An excellent fit for compact or mid-sized automation systems where efficient use of panel space and integrated I/O functionality are paramount.
• Energy Management Systems: Facilitates the monitoring and control of various analog parameters in energy distribution and consumption systems, contributing to greater efficiency.
• Material Handling and Packaging: Enables precise control of motion, speed, and positioning functions in automated material handling and packaging lines.

Why Choose the 1769-IF4XOF2?

• Unmatched Integration: Consolidates both analog input and output capabilities into a single module, drastically simplifying system design and wiring.
• Supreme Flexibility: Offers a wide selection of configurable voltage and current ranges, ensuring adaptability to diverse sensors and actuators.
• Space & Cost Efficiency: Its compact footprint and combined functionality significantly reduce the required panel space and overall system costs.
• Guaranteed Reliability: Built by Allen-Bradley, a leader in industrial automation, ensuring robust performance and long-term operational stability in demanding environments.
• Enhanced System Performance: Delivers high resolution and accuracy, leading to more precise control and improved operational efficiency for your applications.
• Global Availability & Support: Readily available for worldwide shipping, backed by expert support to ensure seamless integration and sustained operation.

Order Now

Unlock superior analog control and measurement capabilities for your CompactLogix or MicroLogix 1500 system with the Allen-Bradley 1769-IF4XOF2. This essential combination I/O module is in stock and ready to ship globally, ensuring rapid delivery to your facility. Expedite your project and enhance your automation solution today. For a comprehensive selection of compatible products, explore our CompactLogix Controllers main category or delve into the full spectrum of industrial automation solutions within our Allen-Bradley Industrial Automation Products master category, featuring controllers, drives, motors, HMIs, and accessories.
