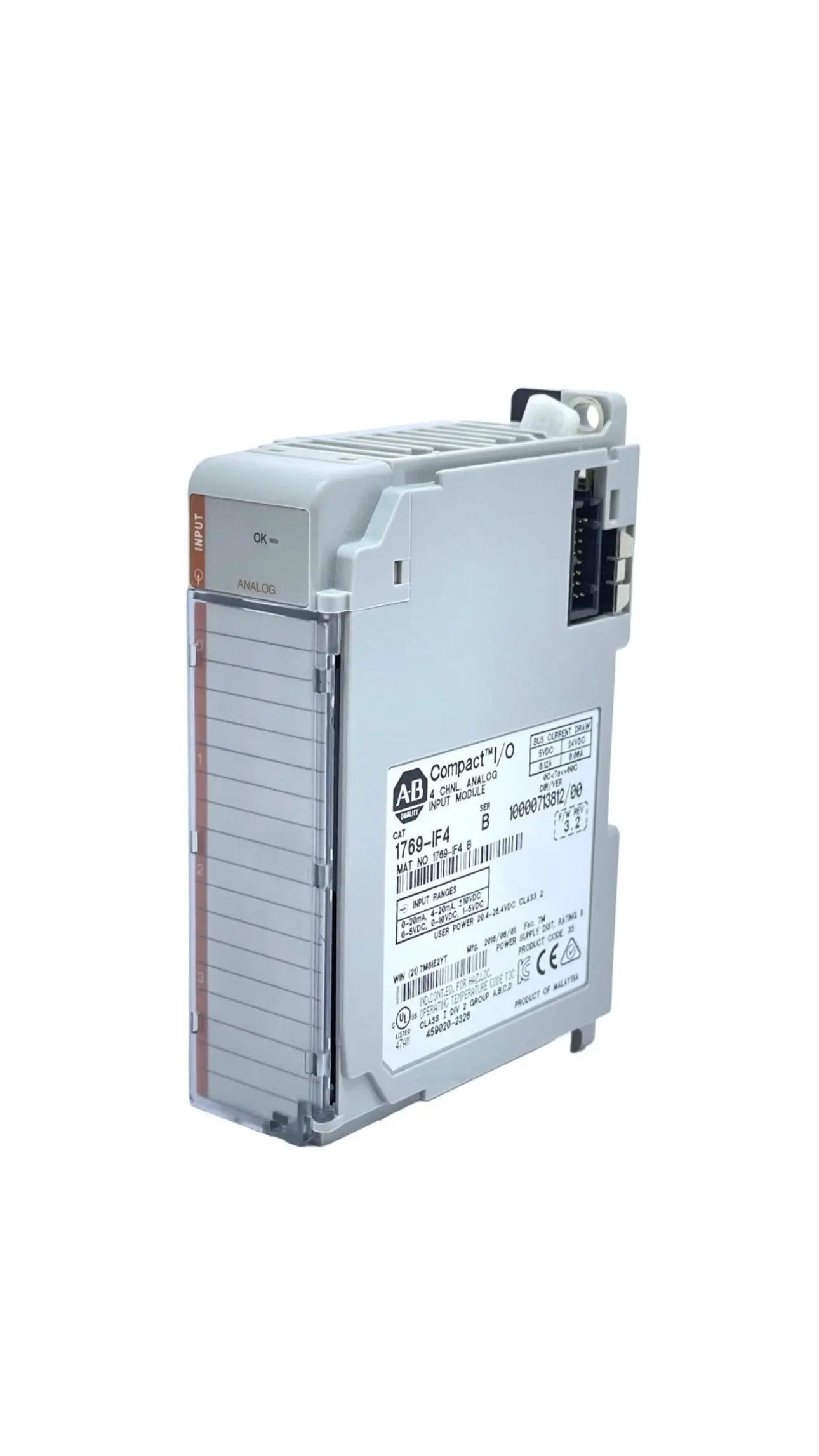

Allen-Bradley 1769-IF4

Overview

The Allen-Bradley 1769-IF4 is an advanced 4-channel analog input module specifically engineered for the demanding environments of industrial automation and process control. As a key component within CompactLogix and MicroLogix 1500 systems, this module excels at providing precise acquisition and processing of analog signals. It offers versatile compatibility with a wide range of analog sensors and actuators, supporting both voltage and current input signals to ensure comprehensive monitoring and control capabilities. Designed for reliability and accuracy, the 1769-IF4 is a cornerstone for applications requiring real-time data acquisition and meticulous analog input processing, contributing to optimal system performance and operational efficiency.

Key Features

• High-Precision Analog Input: Delivers exceptional accuracy for critical signal acquisition in industrial settings.
• Versatile 4-Channel Input: Accommodates multiple sensor connections, enhancing system flexibility.
• Broad Input Signal Support: Compatible with both voltage (±10V, 0-10V) and current (4-20mA, 0-20mA) inputs for diverse applications.
• Superior Accuracy & Resolution: Ensures the capture of precise and reliable data with 16-bit resolution.
• Space-Saving Compact Design: Optimizes control panel real estate and simplifies the installation process.
• Seamless Allen-Bradley Integration: Fully compatible with CompactLogix and MicroLogix 1500 systems for effortless setup.
• Real-time Diagnostic Indicators: Equipped with LED status indicators for immediate operational feedback and troubleshooting.

Technical Specifications

The Allen-Bradley 1769-IF4 module is built to rigorous industrial standards, ensuring dependable performance. It features four analog input channels supporting various voltage and current ranges. The 16-bit resolution guarantees highly accurate data acquisition, crucial for critical control applications. Its robust construction allows for operation in challenging environments, with an operating temperature range of 0°C to 60°C. The module's design facilitates easy mounting on DIN rails or panels, offering flexibility in installation within existing or new control systems.

• Model: 1769-IF4
• Series Compatibility: CompactLogix / MicroLogix 1500
• Input Channels: 4 Analog Inputs
• Input Type: Voltage & Current
• Voltage Range: 0-10V, ±10V
• Current Range: 4-20mA, 0-20mA
• Resolution: 16-bit
• Update Time: Varies per configuration (configurable for optimal performance)
• Mounting: DIN Rail / Panel Mount
• Operating Temperature: 0°C to 60°C (32°F to 140°F)

Applications

• Industrial Process Monitoring: Essential for precise measurement of temperature, pressure, flow sensors, ensuring optimal process control.
• Advanced Automation & Control Systems: Provides the foundation for real-time analog signal acquisition, critical for complex industrial operations.
• Machine Automation & Robotics: Facilitates smooth and precise control of robotic movements and automated machinery through accurate analog feedback.
• SCADA & Remote Monitoring Systems: Enhances data collection and analysis capabilities for supervisory control and remote operational oversight.
• Water & Wastewater Treatment Facilities: Crucial for controlling flow rates, chemical dosing systems, and monitoring environmental parameters with high accuracy.
• Energy Management Systems: Supports efficient monitoring and control of various energy parameters, optimizing consumption and distribution.

Why Choose This Model?

• Unmatched Reliability: Engineered by Allen-Bradley, a leader in industrial automation, for robust and long-lasting performance in demanding environments.
• Exceptional Precision: 16-bit resolution ensures highly accurate data acquisition, critical for applications where exact measurements are paramount.
• Maximized Compatibility: Designed for seamless integration with widely used CompactLogix and MicroLogix 1500 systems, simplifying system expansion and upgrades.
• Operational Flexibility: Supports a broad spectrum of voltage and current input signals, offering adaptability for diverse sensor and application requirements.
• Optimized for Space and Efficiency: Its compact design saves valuable panel space and streamlines installation, reducing setup time and costs.
• Enhanced Diagnostics: Integrated LED status indicators provide immediate visual feedback, enabling quick troubleshooting and minimizing downtime.

Order Now

Enhance your industrial automation capabilities with the Allen-Bradley 1769-IF4 analog input module. Benefit from fast shipping and reliable worldwide delivery to get your systems up and running without delay.

Explore our comprehensive CompactLogix Controllers main category to discover all available models and specifications within this product family.

For a complete range of industrial automation solutions, including controllers, drives, motors, HMIs, and accessories, visit our Allen-Bradley Industrial Automation Products master category.
