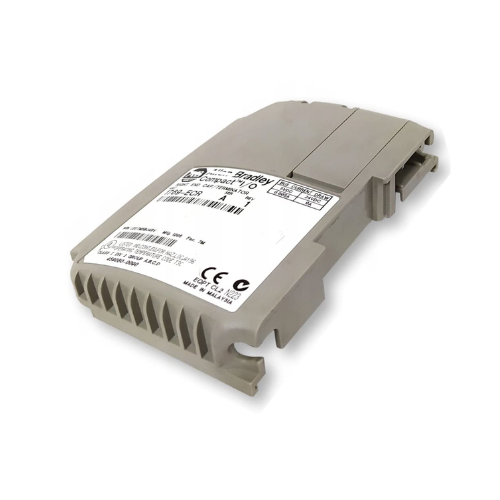

Allen-Bradley 1769-ECR

Overview

The Allen-Bradley 1769-ECR is an essential right end cap/terminator specifically engineered for seamless integration with CompactLogix and Compact I/O 1769 systems. This crucial component plays a vital role in maintaining the integrity of your industrial automation setup by properly terminating the communication bus. Its function ensures stable signal transmission, prevents data errors, and guarantees optimal system performance across all modular controller configurations. Designed for reliability and ease of use, the 1769-ECR is an indispensable part of any robust 1769 I/O system, safeguarding against communication disruptions and contributing to efficient operational workflows.

Key Features

• Optimal Signal Integrity: Reliably terminates the 1769 I/O communication bus, preventing signal reflection and ensuring data accuracy.
• Seamless Compatibility: Engineered for perfect integration with Allen-Bradley CompactLogix controllers and 1769 I/O modules, guaranteeing hassle-free setup.
• Effortless Installation: Designed for quick and straightforward attachment to the right end of any 1769 I/O bank, minimizing downtime.
• Robust Industrial Design: Built to withstand demanding industrial environments with a wide operating temperature range of 0°C to +60°C (32°F to 140°F).
• Compact and Lightweight: With dimensions of approximately 6.35 cm x 13.97 cm x 16.51 cm and weighing only 0.136 kg, it adds minimal footprint to your system.
• Certified Reliability: Bears essential certifications including CE, UL, c-UL, Class I Div 2, and ATEX, confirming its adherence to international safety and quality standards.
• Minimal Power Consumption: Features an efficient design with a current draw of 5 mA at 5V DC and 0 mA at 24V DC, contributing to energy efficiency.

Technical Specifications

• Catalog Number: 1769-ECR
• Series: CompactLogix
• Function: Right End Cap/Terminator for 1769 I/O Communication Bus
• Operating Temperature: 0°C to +60°C (32°F to 140°F)
• Dimensions (Approximate): 6.35 cm (H) x 13.97 cm (W) x 16.51 cm (L)
• Weight (Approximate): 0.136 kg
• Current Draw:
  • 5V DC: 5 mA
  • 24V DC: 0 mA
• Certifications: CE, UL, c-UL, Class I Div 2, ATEX

Applications

• CompactLogix Controller Systems: Crucial for ensuring the proper and reliable termination of the communication bus within all modular CompactLogix setups, preventing data loss and enhancing system stability.
• 1769 I/O Module Assemblies: Essential for maintaining optimal signal integrity and communication across various 1769 I/O module configurations, critical for precise control and data acquisition.
• Industrial Automation Networks: Provides a foundational component for robust and error-free communication in diverse industrial automation environments utilizing Allen-Bradley 1769 systems.
• Process Control Applications: Enhances the reliability of control signals in process automation, where consistent and uninterrupted data flow is paramount for operational safety and efficiency.
• Machine Control Systems: Supports the integrity of communication within machine control architectures, ensuring that commands and feedback are transmitted accurately and promptly.
• Distributed Control Systems (DCS): Utilized to finalize communication segments within DCS implementations based on 1769 technology, guaranteeing network stability and performance.

Why Choose This Model?

• Unwavering System Reliability: The 1769-ECR is paramount for ensuring the critical termination of the communication bus, which directly translates to a highly reliable and stable control system devoid of communication errors.
• Effortless Integration: Crafted specifically for the Allen-Bradley ecosystem, this end cap guarantees a perfect fit and seamless integration with your existing CompactLogix and 1769 I/O modules, simplifying installation and reducing setup time.
• Peace of Mind Through Certification: With a comprehensive suite of certifications including CE, UL, c-UL, Class I Div 2, and ATEX, you can trust in the 1769-ECR's adherence to the highest international standards for safety and performance.
• Durable for Demanding Environments: Its robust construction and wide operating temperature range ensure that the 1769-ECR can withstand the harsh conditions prevalent in industrial settings, offering long-term operational stability.
• Optimized Performance: By preventing signal reflections and ensuring proper bus termination, this component directly contributes to the enhanced performance and responsiveness of your entire automation system.
• Allen-Bradley Quality Assurance: As a genuine Allen-Bradley component, the 1769-ECR is backed by a legacy of quality, innovation, and support, ensuring the highest standards of manufacturing and reliability.

Order Now

Enhance the reliability and performance of your Allen-Bradley CompactLogix and 1769 I/O systems today. Order the Allen-Bradley 1769-ECR right end cap/terminator for fast shipping and worldwide delivery. Ensure your communication bus is properly terminated for optimal signal integrity and system functionality. Return to our CompactLogix Controllers main category to explore all models and specifications in this family. Visit our Allen-Bradley Industrial Automation Products master category for the complete range of controllers, drives, motors, HMIs, and accessories.
