Allen-Bradley 1769-ASCII

Overview

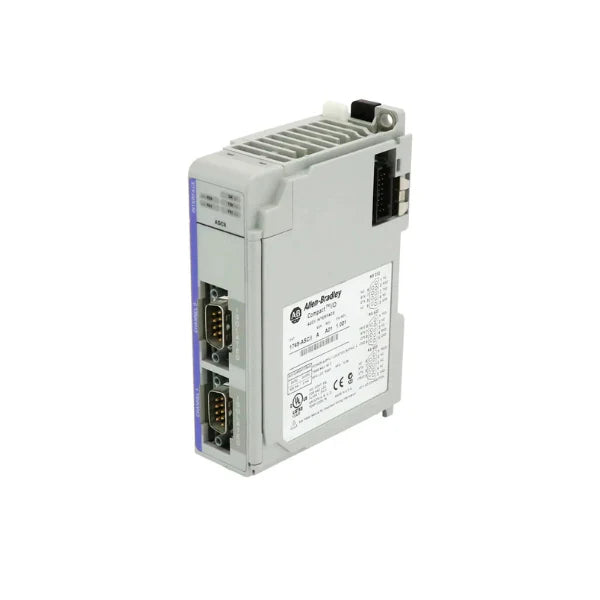

Unlock seamless communication between your CompactLogix or MicroLogix 1500 systems and a wide array of serial devices with the Allen-Bradley 1769-ASCII 2-channel serial ASCII module. This versatile module is engineered to bridge the gap, offering robust RS232, RS422, and RS485 communication protocols. It's the perfect solution for integrating critical ASCII-based peripherals like precision barcode scanners, industrial printers, advanced sensors, and custom-engineered control hardware directly into your existing automation infrastructure. Each of the two independent channels provides unparalleled flexibility, allowing you to configure and manage diverse serial equipment and protocols without compromise. Elevate your control system's capabilities and simplify complex integrations with this essential communication module.

Key Features

• Dual Independent Channels: Equipped with two distinct serial ports, ensuring maximum operational flexibility for simultaneous device management.
• Universal Protocol Support: Compatible with RS232, RS422, and RS485 standards, offering broad connectivity options for various serial devices.
• High-Speed Communication: Achieves impressive baud rates of up to 115.2 Kbps for rapid and efficient data exchange.
• CompactLogix & MicroLogix 1500 Ready: Specifically designed for seamless integration with Allen-Bradley CompactLogix and MicroLogix 1500 control systems.
• Space-Saving Design: Features a compact form factor for efficient DIN rail mounting, optimizing control panel real estate.
• Effortless Device Integration: Simplifies connectivity with non-Allen-Bradley serial devices, expanding your system's peripheral compatibility.
• Independent Channel Configuration: Each channel can be uniquely configured to match specific device requirements, enhancing adaptability.

Technical Specifications

• Model: 1769-ASCII
• Channels: 2 independent serial channels
• Supported Interfaces: RS232, RS422, RS485
• Baud Rates: Configurable from 300 to 115200 bps
• Power Supply: Draws power directly from the I/O backplane of the CompactLogix system.
• Mounting: Designed for convenient DIN rail installation or panel mounting via the CompactLogix chassis.
• Operating Temperature: Rugged design for operation in environments ranging from 0°C to +60°C.
• Dimensions: Standard 1769 I/O module size, ensuring compatibility within existing CompactLogix setups.
• Certifications: UL, CE, c-UL compliant, ensuring adherence to global safety and quality standards.

Applications

• Precision Barcode Scanning Systems: Facilitates reliable ASCII string communication for accurate product identification and tracking.
• Industrial Labeling & Printing Solutions: Enables seamless serial control of printers for on-demand labeling and documentation.
• Advanced Weigh Scales & Measurement Devices: Integrates digital serial input from scales for precise weight and dimension measurement in various industries.
• Legacy Device Modernization: Provides essential communication pathways for integrating older RS-protocol devices into contemporary control systems.
• Machine-to-Machine (M2M) Data Exchange: Optimizes serial data transfer between automated machinery, enhancing interconnected operations.
• Custom Control Hardware Integration: Perfect for connecting specialized, non-standard serial devices to your CompactLogix or MicroLogix 1500 architecture.

Why Choose This Model?

• Unmatched Versatility: The 1769-ASCII offers multi-protocol support (RS232, RS422, RS485), providing a single solution for diverse serial communication needs.
• Enhanced Flexibility: With dual independent channels, you gain the freedom to connect and manage two separate serial devices simultaneously, each with its unique configuration.
• Seamless System Integration: Designed for effortless compatibility with Allen-Bradley CompactLogix and MicroLogix systems, ensuring quick setup and reliable performance.
• Space and Cost Efficient: Its compact DIN rail mountable design saves valuable panel space and reduces the need for multiple, specialized communication modules.
• Future-Proof Your Automation: Enables integration with a broad spectrum of serial devices, from current technology to legacy equipment, safeguarding your investment.
• Proven Reliability: Allen-Bradley's reputation for industrial-grade quality means this module is built to perform consistently in demanding environments.

Order Now

The Allen-Bradley 1769-ASCII 2-channel serial ASCII module is currently in stock and available for worldwide shipping. Elevate your automation capabilities today. Contact us for expert configuration support, to explore compatible CompactLogix controllers, or to inquire about our comprehensive starter bundles designed for quick deployment. Don't miss the opportunity to optimize your system's communication. For a complete overview of our CompactLogix controller family, navigate to our CompactLogix Controllers main category. Additionally, discover the full range of Allen-Bradley industrial automation solutions, including controllers, drives, motors, HMIs, and accessories, by visiting our Allen-Bradley Industrial Automation Products master category.
