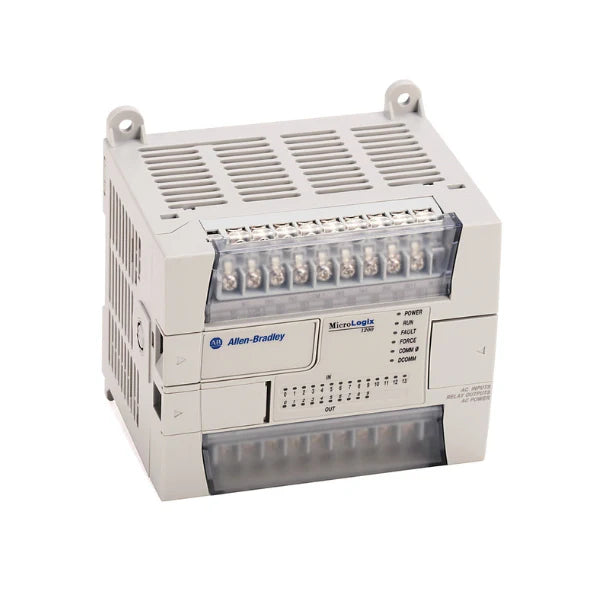

Allen-Bradley 1762-L24BXB

Overview

The Allen-Bradley 1762-L24BXB MicroLogix 1200 Programmable Logic Controller (PLC) is engineered for optimal performance within compact automation systems. This robust unit delivers a seamless blend of power and precision, making it an ideal choice for small to medium-scale industrial applications. As a key component of the esteemed MicroLogix family, the 1762-L24BXB stands out for its affordability, exceptional capability, and user-friendly design, ensuring efficient and reliable control across diverse environments. Its integrated communication options and flexible I/O configurations provide a solid foundation for any modern control system.

Equipped with 14 digital inputs, including four high-speed 20 kHz inputs, and 10 digital outputs (comprising six relay and four transistor outputs), this PLC guarantees versatile and dependable control for a broad spectrum of operational demands. The inclusion of an integrated RS-232 communication port, supporting popular protocols such as DF1, DH-485, and Modbus RTU, facilitates effortless system integration and data exchange, ensuring your automation processes run smoothly and efficiently. The 1762-L24BXB is designed for expandability, allowing you to scale your system as your needs evolve.

Key Features

• Versatile Digital I/O: Features 14 digital inputs (including 4 high-speed 20 kHz inputs) and 10 digital outputs (6 relay, 4 transistor) for comprehensive control.
• Integrated Communication: Built-in RS-232 port supports DF1, DH-485, and Modbus RTU protocols for flexible connectivity.
• System Expandability: Seamlessly integrate up to 6 additional 1762 I/O modules to scale your automation system.
• Ample Program Memory: 4 KB of user program memory provides significant space for complex and flexible application development.
• High-Speed Processing: Four dedicated high-speed inputs are ideal for precise pulse counting and advanced motion control tasks.
• Compact & Robust Design: Optimized for installations with limited space, housed in a durable casing built for harsh industrial environments.
• Cost-Effective Performance: Delivers advanced automation capabilities at an accessible price point, maximizing your ROI.

Technical Specifications

• Model Number: 1762-L24BXB
• Series: MicroLogix 1200
• Brand: Allen-Bradley
• Power Supply: 24V DC
• Digital Inputs: 14 (4 fast 20 kHz inputs)
• Digital Outputs: 10 (6 relay, 4 transistor)
• Communication Port: RS-232 (supports DF1, DH-485, Modbus RTU)
• User Program Memory: 4 KB
• I/O Expansion: Supports up to 6 additional 1762 I/O modules
• Dimensions (H x W x D): 90 mm x 180 mm x 87 mm (3.5 x 7.1 x 3.4 inches)
• Weight: 1.25 lbs (0.57 kg)
• Operating Temperature: 0°C to 55°C (32°F to 131°F)

Applications

• Advanced Material Handling: Precisely control conveyor systems, robotic arms, and sorting machinery for enhanced efficiency.
• Packaging & Assembly Automation: Optimize processes like labeling, filling, sealing, and quality inspection in manufacturing lines.
• Building Management Systems: Efficiently manage and automate lighting, HVAC, access control, and comprehensive security systems.
• OEM Equipment Integration: Ideal for embedding within specialized machinery and custom industrial equipment requiring reliable control.
• Water/Wastewater Treatment: Automate pump control, filtration processes, and monitoring systems for environmental applications.
• Food & Beverage Processing: Implement precise control over mixing, cooking, and packaging stages to ensure product consistency and safety.

Why Choose This Model?

• Optimal Balance of Power & Size: The 1762-L24BXB offers high-performance automation in an exceptionally compact footprint, perfect for space-constrained applications.
• Enhanced Productivity: With high-speed inputs and reliable digital outputs, this PLC ensures quick response times and precise control, boosting overall operational efficiency.
• Future-Proof Scalability: The ability to connect up to six 1762 I/O modules means your system can grow and adapt alongside your evolving business needs.
• Seamless Integration: Broad communication protocol support simplifies integration into existing systems, reducing setup time and potential compatibility issues.
• Rugged Industrial Reliability: Engineered by Allen-Bradley for durability, the 1762-L24BXB operates dependably in the most demanding industrial environments.
• Exceptional Value: Experience industry-leading Allen-Bradley quality and performance without compromising your budget, making it an excellent investment.

Order Now

Elevate your industrial control systems with the Allen-Bradley 1762-L24BXB MicroLogix 1200 Programmable Logic Controller. Contact us today for competitive pricing and benefit from our fast, reliable shipping services, ensuring minimal downtime for your operations. Expand your automation possibilities and explore our full inventory of Allen-Bradley MicroLogix 1200 Controllers for flexible, high-performance solutions tailored to your needs. Discover the complete range of Allen-Bradley MicroLogix PLC Series products, offering diverse models, detailed technical specifications, and worldwide shipping.
