Allen-Bradley 1762-IQ16

Overview

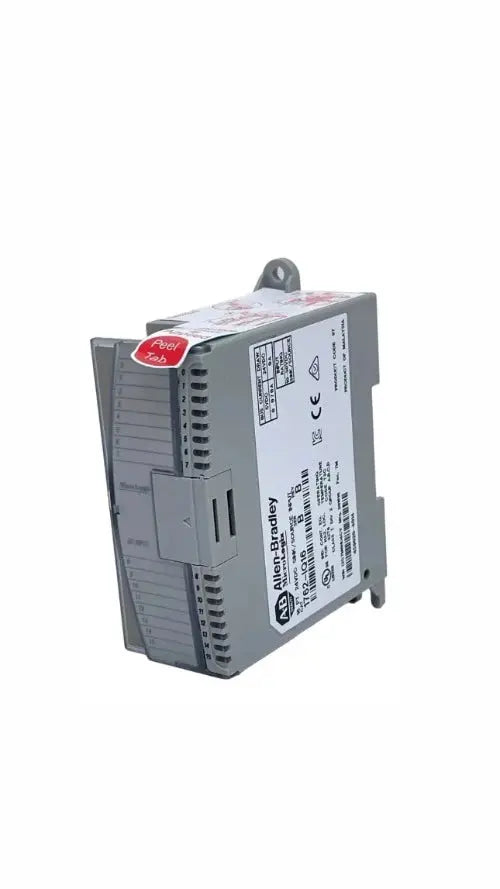

Elevate your industrial control systems with the Allen-Bradley 1762-IQ16 MicroLogix 1200 16-Point 24V DC Sink/Source Input Module. This robust digital input module is meticulously engineered to expand the capabilities of your MicroLogix 1200 controllers, providing seamless integration and reliable performance for a wide array of industrial automation applications. Designed for demanding environments, the 1762-IQ16 delivers precise digital signal acquisition, ensuring your operations run smoothly and efficiently. Its compact footprint, combined with DIN rail and panel mount options, allows for flexible installation in various control panel configurations while optimizing space.

The 1762-IQ16 stands out with its versatile sink/source input capability, accommodating diverse wiring schemes and sensor types. Whether you're monitoring discrete devices in machine automation, managing processes, or implementing industrial monitoring solutions, this module provides the dependable input expansion necessary for modern industrial setups. With fast signal response times and a wide operating voltage range, it ensures quick and accurate data capture, minimizing delays and enhancing overall system responsiveness.

Key Features

• 16 High-Density Digital Input Points: Significantly expands the input capacity of MicroLogix 1200 controllers, enabling comprehensive monitoring of numerous devices.
• Versatile 24V DC Sink/Source Inputs: Offers exceptional flexibility to support both sinking and sourcing configurations, compatible with a broad range of industrial sensors and switches.
• Optimized Wide Operating Voltage Range: Operates reliably across various conditions, from 10-26.4V DC at 55°C (131°F) to 10-30V DC at 30°C (86°F), ensuring stable performance in diverse industrial settings.
• Rapid Signal Response Time: Features an impressive 8ms on/off delay, guaranteeing quick and accurate acquisition of digital signals crucial for time-sensitive applications.
• Compact & Flexible Mounting: Designed for space-saving DIN rail and panel mounting, facilitating efficient layout and installation within control cabinets.
• Integrated LED Status Indicators: Provides instant visual feedback on input status, simplifying diagnostics and significantly reducing troubleshooting time.
• Enhanced Electrical Isolation: Boasts 1,500V AC isolation voltage, protecting your control system from electrical noise and surges, ensuring data integrity and system longevity.

Technical Specifications

• Model: 1762-IQ16
• Series: MicroLogix 1200 Expansion Module
• Number of Inputs: 16
• Input Type: 24V DC Sink/Source
• Operating Voltage Range:
  • 10-26.4V DC @ 55°C (131°F)
  • 10-30V DC @ 30°C (86°F)
• Nominal Input Impedance: 3 kΩ
• Maximum Signal Delay: 8ms (On/Off)
• Backplane Current Draw: 85mA at 5V DC
• Isolation Voltage: 1,500V AC
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Mounting: DIN Rail or Panel Mount

Applications

• Advanced Industrial Automation Systems: Essential for building scalable control architectures requiring precise and dependable digital signal acquisition.
• Efficient Machine Control and Monitoring: Ideal for integrating new sensors and switches to enhance the efficiency and automation of manufacturing equipment.
• Robust Factory and Process Automation: Supports a wide range of sensor and switch inputs, perfect for optimizing production lines and complex industrial processes.
• MicroLogix 1200 System Expansion: Seamlessly integrates with existing MicroLogix 1200 PLC systems to significantly increase input capacity and operational flexibility.
• Energy Management and Building Automation: Applicable in systems requiring the monitoring of discrete environmental or operational parameters.

Why Choose This Model?

• Unmatched Reliability and Durability: Engineered by Allen-Bradley, a leader in industrial automation, ensuring long-term, dependable performance in harsh environments.
• Superior Flexibility with Sink/Source Inputs: Easily adapts to various wiring configurations and sensor technologies, simplifying system design and integration.
• Seamless Integration with MicroLogix 1200: Designed specifically to extend the capabilities of your MicroLogix 1200 controllers, guaranteeing compatibility and expanding system functionality without complex reconfigurations.
• Optimized for Space and Efficiency: Its compact design and versatile mounting options allow for maximum space utilization within control panels, contributing to a more organized and efficient setup.
• Enhanced Diagnostics and Reduced Downtime: LED indicators provide immediate status updates, enabling quick troubleshooting and minimizing costly operational interruptions.
• Investment in Proven Technology: Leveraging Allen-Bradley's reputation for quality and innovation, the 1762-IQ16 offers a reliable and future-proof solution for your digital input needs.

Order Now

Upgrade your industrial automation capabilities with the Allen-Bradley 1762-IQ16 MicroLogix 1200 16-Point 24V DC Sink/Source Input Module. Benefit from its robust design, versatile features, and seamless integration to enhance your control systems. Experience fast shipping and worldwide delivery to ensure your project stays on schedule.

Looking for more options to complete your setup? Explore our full range of Allen-Bradley MicroLogix 1200 Controllers for flexible, compact automation solutions tailored to your specific requirements. Additionally, you can browse the complete Allen-Bradley MicroLogix PLC Series for all models, detailed technical specifications, and global availability to find the perfect components for your industrial needs.
