Allen-Bradley 1756-TBNH

Overview

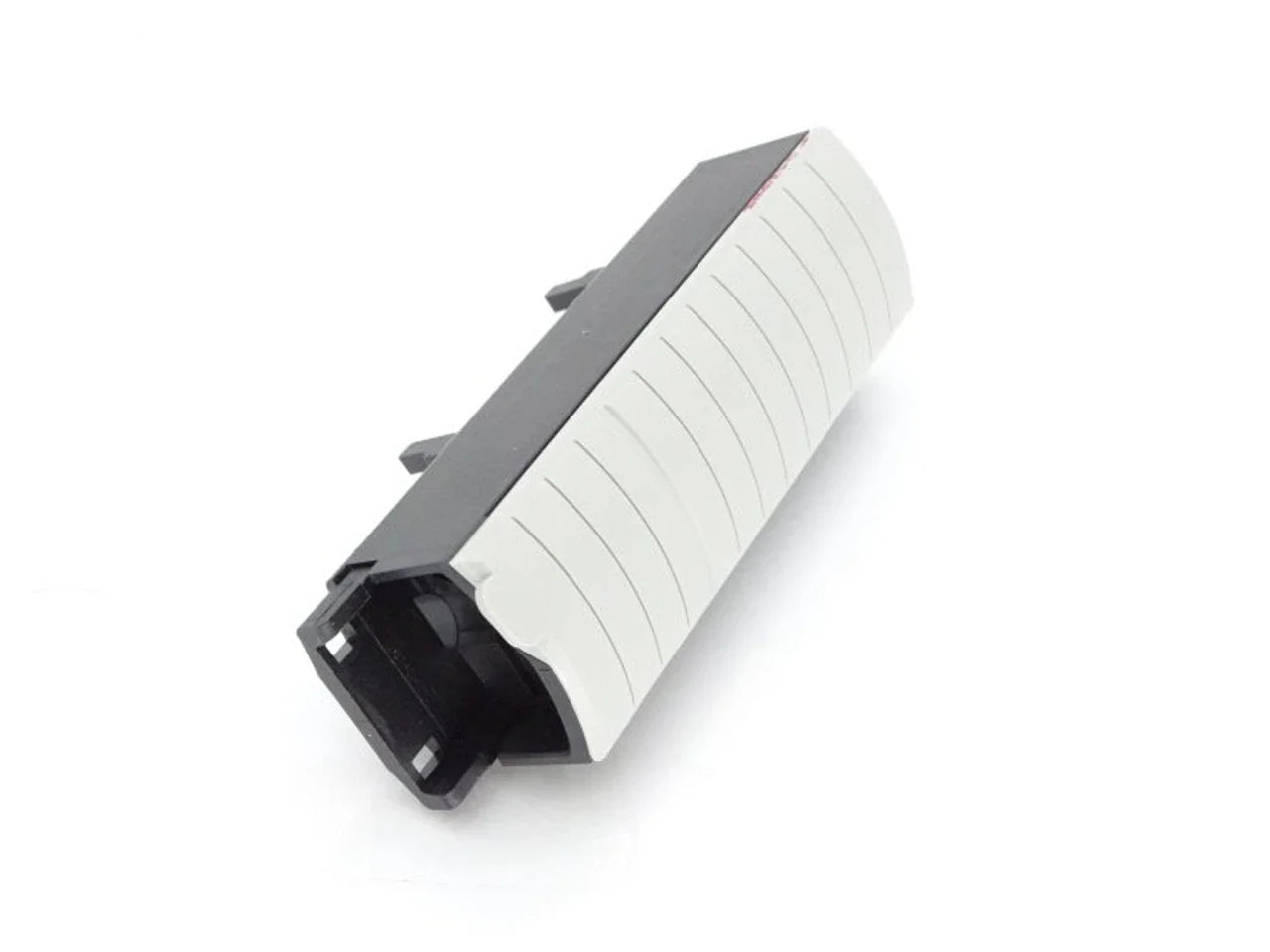

The Allen-Bradley 1756-TBNH ControlLogix I/O Terminal Base is an essential component for robust industrial automation systems. Designed to seamlessly integrate with ControlLogix I/O modules, this terminal base acts as the central hub for efficient power distribution and reliable communication within your control system. Its compact design and DIN rail mounting capability optimize space and simplify installation, making it an ideal choice for a wide range of applications.

Engineered to meet the demands of modern industrial environments, the 1756-TBNH ensures seamless connectivity between your ControlLogix controller and various I/O modules. With support for up to 8 I/O modules, it offers the flexibility needed to integrate diverse input and output types, enhancing the overall functionality and responsiveness of your automation processes.

Key Features

• Eight-Slot Capacity: Accommodates up to 8 ControlLogix I/O modules, allowing for versatile system expansion and configuration.
• Efficient Power Distribution: Reliably distributes 24V DC power to connected I/O modules, streamlining wiring and ensuring consistent operation.
• DIN Rail Mounting: Facilitates quick and easy installation, providing flexibility in cabinet layout and reducing setup time.
• Seamless ControlLogix Integration: Ensures robust communication with the ControlLogix backplane, guaranteeing reliable data exchange between the controller and I/O modules.
• Secure Spring Clamp Connectors: Provides fast, secure, and tool-less wiring connections, minimizing installation effort and improving system reliability.
• Compact and Space-Saving Design: Optimizes control cabinet space, crucial for efficient panel design and reduced footprint.
• Industrial Certifications: UL, CE, and cUL certified, guaranteeing compliance with global safety and quality standards for industrial applications.

Technical Specifications

• Model: 1756-TBNH
• Series: ControlLogix
• Type: I/O Terminal Base
• Compatible With: ControlLogix I/O modules
• Number of Slots: Supports up to 8 I/O modules
• Communication: Compatible with ControlLogix backplane
• Power Distribution: 24V DC to connected I/O modules
• Dimensions: 4.52 x 8.39 x 5.28 inches (114.7 x 213.8 x 134.6 mm)
• Weight: 1.12 kg (2.47 lbs)
• Mounting: DIN rail mounting
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Certifications: UL, CE, and cUL certified
• Voltage Range: 24V DC input
• Connector Type: Spring Clamp Connectors
• Environmental Rating: Designed for industrial environments (dust and moisture protection)

Applications

• Industrial Automation Systems: Essential for complex automation setups requiring multiple I/O modules, such as automated assembly lines and material handling.
• Machine Control: Ideal for integrating diverse sensors, actuators, and control devices in advanced machine control applications.
• Process Control: Perfect for process control systems, facilitating the management and communication of multiple I/O signals.
• Discrete Manufacturing: Enhances efficiency and reliability in discrete manufacturing processes by providing robust I/O expansion.
• Building Management Systems: Can be utilized in integrated building management systems for industrial facilities, managing various inputs and outputs.

Why Choose This Model?

• Unmatched Reliability: Built by Allen-Bradley, a leader in industrial automation, ensuring robust and long-lasting performance.
• Ease of Integration: Specifically designed for ControlLogix systems, guaranteeing seamless compatibility and simplified setup.
• Optimized Performance: Efficient power distribution and secure connections contribute to system stability and uptime.
• Space and Cost Efficiency: Its compact design and ability to support multiple modules reduce the need for additional hardware and cabinet space.
• Global Compliance: With UL, CE, and cUL certifications, this terminal base meets stringent international safety and quality standards.

Order Now

Elevate your industrial control system with the Allen-Bradley 1756-TBNH ControlLogix I/O Terminal Base. Experience enhanced connectivity, reliable power distribution, and simplified installation for your most demanding automation challenges. Contact us today to secure your essential automation components and optimize your operational efficiency.
