Allen-Bradley 1756-PLS

Overview

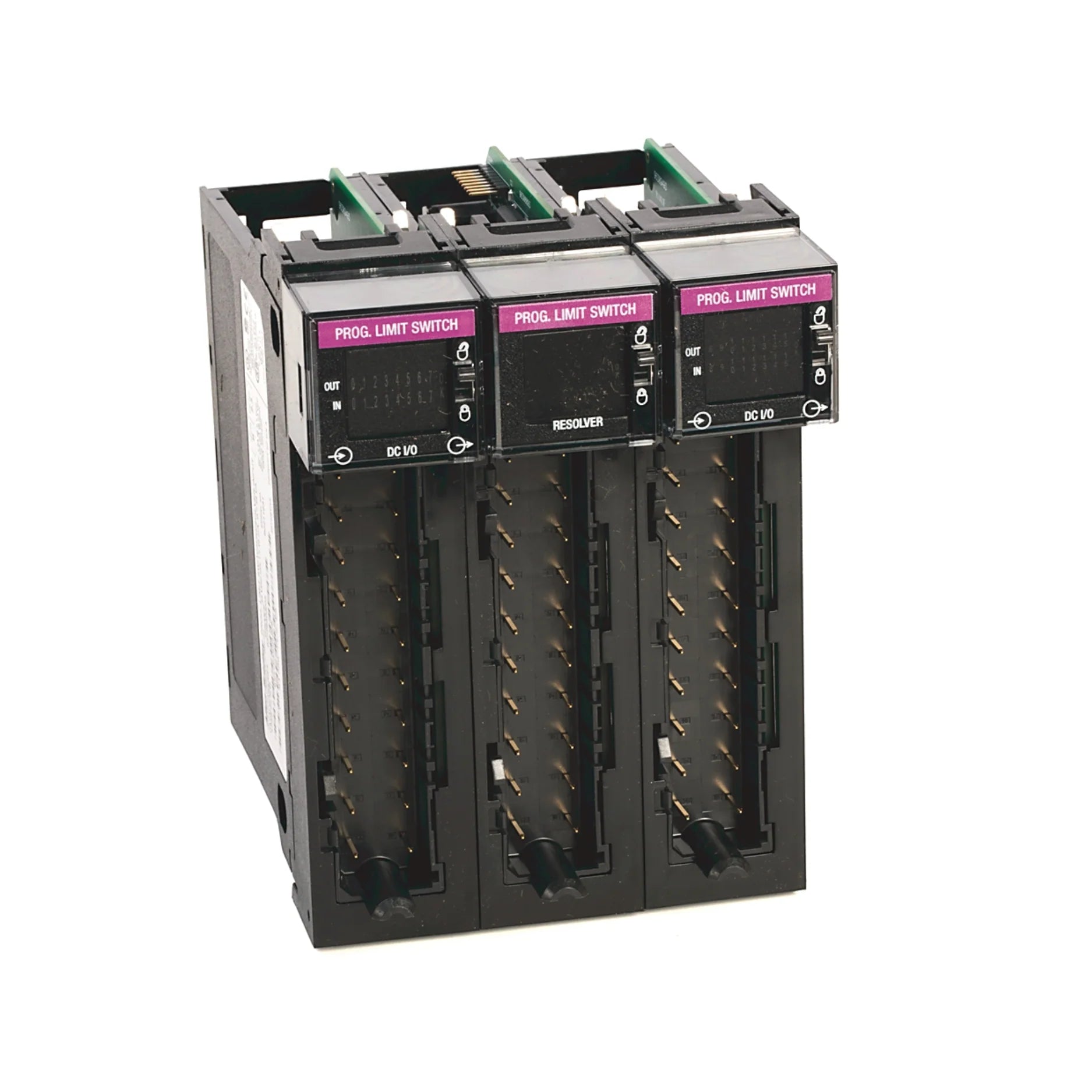

The Allen-Bradley 1756-PLS is a cutting-edge programmable limit switch (PLS) module engineered for the demanding world of motion control and precision timing within the ControlLogix platform. This robust, 3-slot wide module integrates seamlessly with a resolver interface, delivering unparalleled real-time response by leveraging precise position feedback. Equipped with 4 groups of 4 configurable inputs and outputs, the 1756-PLS is your ideal solution for achieving tight synchronization between machine motion and discrete outputs with remarkable microsecond-level accuracy.

Whether your application involves intricate rotary indexing, high-speed packaging lines, precise labeling, or rigorous press operations, the 1756-PLS empowers you to optimize performance and throughput. Its advanced capabilities make it an indispensable component for industries where exact timing and reliable control are paramount.

Key Features

• Advanced Programmable Limit Switch (PLS) Technology: Delivers superior control for high-speed industrial processes.
• Seamless ControlLogix Integration: Designed to be fully compatible and integrated within the Allen-Bradley ControlLogix architecture for easy setup and operation.
• Precision Resolver Interface: Utilizes resolver-based position feedback for ultra-accurate and reliable motion sensing.
• Configurable 4x4 I/O Groups: Provides 4 groups of 4 inputs and outputs (16 total inputs and 16 total outputs) for flexible application control.
• Microsecond-Level Output Response: Ensures exceptionally fast and precise output timing, critical for demanding synchronous operations.
• Compact 3-Slot Module Design: Optimizes cabinet space within your ControlLogix chassis without compromising functionality.
• Software Configurable: Allows for custom limit switch profiles and easy adjustment to specific application requirements.

Technical Specifications

• Model: 1756-PLS
• Platform: Allen-Bradley ControlLogix
• Module Type: Programmable Limit Switch (PLS)
• Inputs/Outputs: 4 groups × 4 channels each (16 inputs, 16 outputs)
• Feedback Type: Resolver interface
• Slot Width: 3 standard ControlLogix slots
• Connectors: Three 20-pin interfaces
• Mounting: ControlLogix chassis
• Operating Temperature: 0°C to +60°C
• Certifications: UL, CE, c-UL
• Response Time: Microsecond-level precision for output events.

Applications

• High-Speed Packaging Equipment: Achieve perfect output synchronization with rotary motion for efficient and consistent packaging.
• Labeling & Printing Machines: Implement precise cut, mark, or apply control based on exact position for superior product quality.
• Stamping & Press Automation: Drive limit switch logic with unparalleled accuracy based on shaft position for enhanced safety and productivity.
• Motion-Based Triggers: Utilize rotary encoder or resolver-based precision control for a wide array of industrial triggers.
• Robotics and Automation: Integrate into complex robotic systems requiring accurate positional feedback and synchronized actions.
• Material Handling Systems: Optimize conveyor and sorting systems with precise position-based control.

Why Choose This Model?

• Unmatched Precision: Experience ultra-fast and exceptionally accurate response times driven by reliable resolver position feedback.
• Enhanced Flexibility: Benefit from highly flexible and programmable I/O logic, adaptable to specific position or machine cycle requirements.
• Optimized Performance: Specifically engineered and optimized for high-performance motion control environments, maximizing your operational efficiency.
• Seamless Integration: Enjoy the benefits of full integration within the ubiquitous Allen-Bradley ControlLogix architecture, simplifying installation and configuration.
• Global Availability & Support: The Allen-Bradley 1756-PLS is a globally recognized product, ensuring spare parts and technical support are readily accessible.
• Robust & Reliable: Built to Allen-Bradley's stringent quality standards, ensuring long-term reliability and performance in demanding industrial settings.

Order Now

The Allen-Bradley 1756-PLS is currently in stock and available for worldwide shipping. Enhance your motion control applications with this high-performance programmable limit switch today. For a complete solution, inquire about compatible resolver cables, terminal connectors, and motion controller compatibility with our sales team.

Explore our main ControlLogix Controllers category to discover other models and specifications within this extensive product family. For a comprehensive overview of all controllers, drives, motors, HMIs, and accessories, please visit our Allen-Bradley Industrial Automation Products master category.
