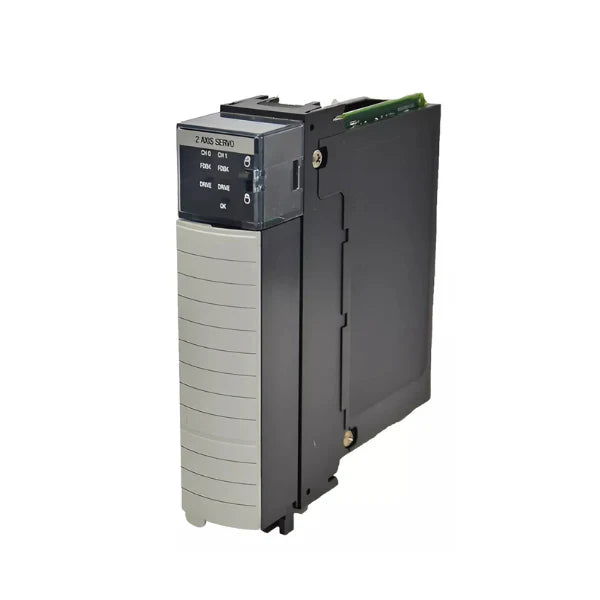

Allen-Bradley 1756-M02AE

Overview

Elevate your industrial automation and motion control systems with the Allen-Bradley 1756-M02AE ControlLogix Servo Analog Encoder Module. This high-performance module is engineered for seamless integration into ControlLogix Programmable Automation Controllers (PACs), providing precise analog input for demanding applications. Designed for systems requiring accurate position feedback, the 1756-M02AE features two single-ended analog input channels, making it ideal for motion control setups utilizing encoder feedback. At DD Parts Solution, we supply only new and unused 1756-M02AE modules, guaranteeing peak performance and reliability for your critical control processes. Each module is backed by a 1-year warranty and is readily available from our USA warehouse, ensuring swift delivery and unparalleled peace of mind. Upgrade or maintain your ControlLogix system with the superior quality and robust design synonymous with Allen-Bradley, all facilitated by the dependable service of DD Parts Solution.

Key Features

• Dual Analog Input Channels: Equipped with two single-ended analog input channels for versatile encoder feedback in motion control.
• High-Resolution Performance: Delivers exceptional accuracy with 16-bit servo output resolution and an absolute position range of ±1,000,000,000 encoder counts.
• ControlLogix System Compatibility: Seamlessly integrates with Allen-Bradley ControlLogix PACs for unified system management and expanded capabilities.
• New Condition & Guaranteed Quality: All modules are guaranteed new and unused, ensuring optimal performance and longevity for your industrial environment.
• Comprehensive 1-Year Warranty: Purchase with confidence, knowing your investment is protected by a full one-year warranty.
• In-Stock & Ready to Ship: Located in our USA warehouse for immediate dispatch, ensuring fast and efficient delivery to your facility.
• Robust Industrial Design: Built to withstand the rigors of industrial applications with a robust design and 50V continuous isolation voltage.

Technical Specifications

• Number of Channels: 2 single-ended
• Input Type: Incremental AB quadrature with marker
• Servo Output Type: Analog voltage (±10V)
• Servo Output Resolution: 16 bits
• Absolute Position Range: ±1,000,000,000 encoder counts
• Rate: 5 kHz
• Backplane Current (5.1V DC): 700 mA
• Backplane Current (24V DC): 2.5 mA
• Power Dissipation: 5.5 W
• Operating Voltage: 24V DC (Class 2 source)
• Isolation Voltage: 50V Continuous
• Module Type: Servo Analog Encoder Module
• Series: ControlLogix
• Removable Terminal Blocks: 1756-TBCH, 1756-TBS6H
• Slot Width: 1

Applications

• Precision Motion Control: Essential for servo drives and actuators requiring highly accurate encoder feedback.
• Advanced Process Control: Ideal for systems where precise position sensing and control are paramount.
• Automated Manufacturing: Enhances the accuracy and reliability of machine automation in various manufacturing processes.
• Industrial Robotics: Supports the precise movement and positioning required in robotic applications.
• High-Speed Production Lines: Critical for maintaining synchronization and accuracy in fast-paced industrial environments.
• Test and Measurement Systems: Provides reliable analog inputs for accurate data acquisition in industrial testing.

Why Choose This Model?

• Optimize Your ControlLogix System: Specifically designed to extend the capabilities of your existing Allen-Bradley ControlLogix infrastructure.
• Unmatched Positional Accuracy: The 16-bit resolution and vast absolute position range ensure unparalleled precision in motion applications.
• Robust and Reliable Performance: Engineered by Allen-Bradley for continuous operation in demanding industrial settings, minimizing downtime.
• Seamless Integration: Effortlessly integrates into your ControlLogix chassis, simplifying installation and configuration.
• Long-Term Value: A new module with a 1-year warranty provides a cost-effective solution for sustaining and enhancing your automation systems.
• Expert Support from DD Parts Solution: Benefit from our commitment to competitive pricing, fast shipping, and exceptional customer service, starting from our USA fulfillment center.

Order Now

Secure the Allen-Bradley 1756-M02AE ControlLogix Servo Analog Encoder Module today from DD Parts Solution and take a decisive step towards optimizing your industrial automation processes. With our in-stock inventory, 1-year warranty, and commitment to fast shipping from our USA warehouse, integrating this high-performance module into your system has never been easier or more reliable. Explore our complete range of ControlLogix Controllers and other Allen-Bradley Industrial Automation Products to discover how DD Parts Solution can fulfill all your industrial equipment needs.
