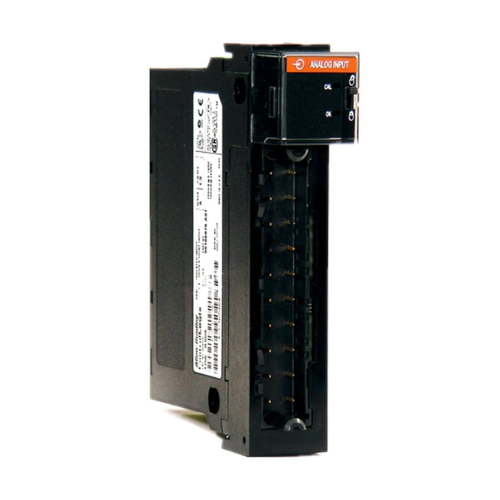

Allen-Bradley 1756-IF8I

Overview

The Allen-Bradley 1756-IF8I is a high-performance, 8-channel isolated analog input module specifically engineered for demanding ControlLogix systems. Designed to deliver unparalleled precision in industrial process and control applications, this module boasts 24-bit resolution and configurable notch filtering, ensuring exceptional signal acquisition and integrity. Its eight individually isolated differential input channels expertly handle both voltage and current signals, minimizing noise interference and maximizing data reliability. With a software-configurable internal loop power source per channel and a robust 36-pin interface, the 1756-IF8I offers unmatched flexibility and seamless integration into complex automation architectures. Experience superior accuracy, reduced wiring complexity, and enhanced operational efficiency with this essential ControlLogix component.

Key Features

• 8 Individually Isolated Analog Inputs: Each channel operates independently, preventing cross-talk and ensuring signal purity.
• Voltage & Current Input Support: Universally compatible with a wide range of industrial sensors and transmitters.
• 24-Bit High-Resolution: Captures even the most subtle signal variations for precise data analysis and control.
• Differential Inputs with Notch Filter: Effectively eliminates common-mode noise and suppresses unwanted frequencies.
• Internal Loop Power Option: Built-in, software-configurable loop power simplifies wiring and reduces external component needs.
• Hot-Swappable & ControlLogix Compatible: Facilitates easy maintenance and seamless integration into existing systems.
• Robust 36-Pin Terminal Interface: Ensures secure, organized, and reliable wiring connections.

Technical Specifications

• Catalog Number: 1756-IF8I
• Number of Inputs: 8 isolated differential channels
• Signal Types: Voltage (±10V), Current (0–20 mA, 4–20 mA)
• Resolution: 24 bits
• Input Isolation: Channel-to-channel and channel-to-backplane
• User-Selectable Loop Power: Yes (internal or external per channel)
• Notch Filter: Built-in, software-configurable
• Accuracy: ±0.03% of full scale (typical)
• Backplane Current: ~350 mA @ 5.1V DC
• Connector: 36-pin RTB (removable terminal block)
• Operating Temperature: 0°C to +60°C
• Mounting: ControlLogix chassis
• Compatible Software: Studio 5000 Logix Designer

Applications

• Precision Process Control: Ideal for critical instrumentation and high-accuracy analog sensor integration.
• Machine Automation: Provides reliable and accurate input for motion, position, and other crucial feedback systems.
• Loop-Powered Sensor Integration: Internal power option simplifies setup for a wide array of loop-powered devices.
• High Electrical Isolation Needs: Essential for environments where signal integrity is paramount and cross-talk must be prevented.
• Data Acquisition Systems: Delivers clean, high-resolution data for advanced monitoring and analysis.
• Harsh Industrial Environments: Engineered to perform reliably in demanding operational conditions.

Why Choose This Model?

• Unmatched Signal Purity: Full channel-to-channel isolation safeguards against noise and ensures data accuracy.
• Simplified System Design: Integrated loop power capability reduces the need for external power supplies and complex wiring.
• Superior Data Resolution: The 24-bit resolution captures minute signal changes, vital for precise control and measurement.
• Robust and Reliable: Built for the rigors of industrial environments, ensuring long-term operational stability.
• Seamless ControlLogix Integration: Designed to work flawlessly within your existing ControlLogix architecture.
• Enhanced Troubleshooting: Diagnostic capabilities within Studio 5000 Logix Designer provide valuable insights for maintenance.

Order Now

Elevate your industrial automation with the Allen-Bradley 1756-IF8I analog input module. Available and ready to ship globally, this module is your solution for high-precision, isolated analog input needs. Explore our comprehensive range of ControlLogix Controllers and our extensive Allen-Bradley Industrial Automation Products master category to discover compatible components and expand your system's capabilities.
