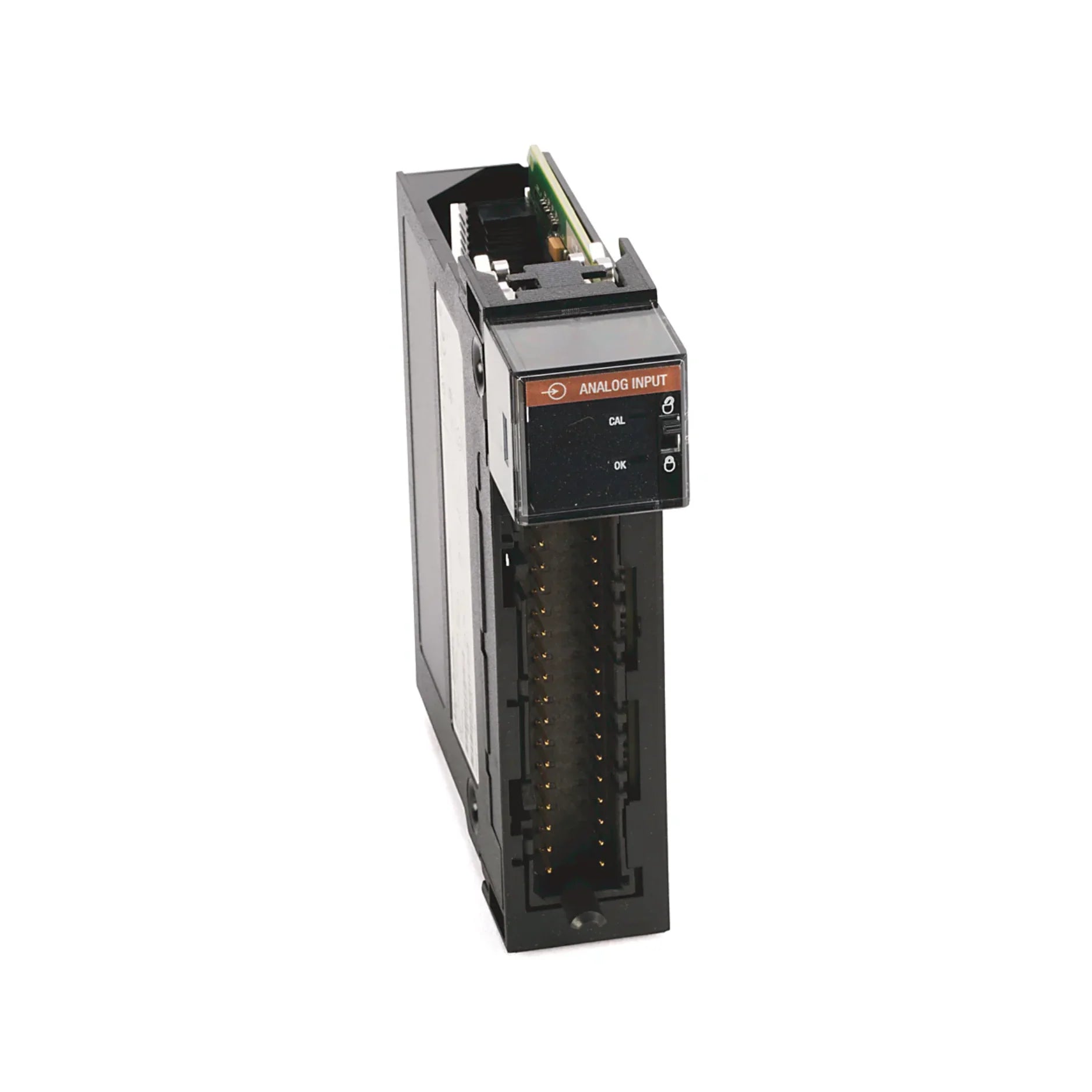

Allen-Bradley 1756-IF8

Overview

The Allen-Bradley 1756-IF8 is an advanced 8-channel analog input module meticulously engineered for integration within ControlLogix systems. This module serves as a cornerstone for precise and reliable data acquisition in diverse industrial automation and process control environments. It masterfully supports both current and voltage input signals, enabling exceptionally accurate monitoring of critical process variables such as temperature, pressure, flow, and more. With its robust design and superior performance, the 1756-IF8 ensures your systems receive the high-fidelity data necessary for optimal operation and decision-making.

Beyond its versatile input capabilities, the 1756-IF8 incorporates sophisticated signal processing and filtering technologies. This guarantees stable, noise-free analog signal acquisition, even in challenging industrial settings where electromagnetic interference can be prevalent. Designed for effortless integration, it seamlessly fits into ControlLogix chassis, leveraging a secure 36-pin connection. For robust and reliable field wiring, the module requires either a 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB), ensuring long-term operational integrity and ease of maintenance.

Key Features

• Eight High-Precision Analog Input Channels: Provides extensive capacity for detailed data acquisition from multiple sensors.
• Versatile Current and Voltage Input Support: Accommodates a wide array of industrial sensors and applications with adaptable input ranges.
• Advanced Signal Filtering and Processing: Ensures superior data integrity by delivering stable and noise-free analog signals.
• Exceptional High-Resolution Measurement: Enables precise and accurate process control, critical for sensitive industrial applications.
• Seamless ControlLogix System Integration: Designed for effortless installation and harmonious operation within existing ControlLogix architectures.
• Robust 36-Pin Connector: Guarantees a secure and reliable physical interface for sustained performance.
• Requires 1756-TBCH or 1756-TBS6H RTB: Ensures flexible and secure field wiring connections for various installation needs.

Technical Specifications

• Model: 1756-IF8
• Number of Inputs: 8 Analog Channels
• Input Types: Configurable for Current or Voltage inputs
• Voltage Ranges: ±10V, 0-10V, 0-5V, 1-5V
• Current Ranges: 0-20mA, 4-20mA
• Resolution: High-accuracy measurement for precise control
• Connector Type: 36-Pin
• Compatible Terminal Blocks: 1756-TBCH, 1756-TBS6H (Removable Terminal Blocks)
• Mounting Type: ControlLogix Chassis
• Series: ControlLogix

Applications

• Factory Automation: Essential for precise monitoring and control of various analog process variables in manufacturing environments.
• Process Control Systems: Facilitates accurate data acquisition for critical industrial processes, ensuring consistent product quality and operational efficiency.
• Machine Interface Management: Provides real-time analog data integration, enabling sophisticated machine control and monitoring capabilities.
• SCADA & Distributed I/O Systems: Supports efficient analog signal processing across large-scale supervisory control and data acquisition networks.
• Energy Management: Ideal for monitoring energy consumption, temperature, and other analog parameters in energy-intensive operations.
• Environmental Monitoring: Used in applications requiring the precise measurement of environmental factors like air pressure, humidity, or gas levels.

Why Choose the Allen-Bradley 1756-IF8?

• Unmatched Precision: Achieve superior control and data accuracy with its high-resolution analog measurement capabilities.
• Industrial-Grade Reliability: Built by Allen-Bradley, a leader in industrial automation, ensuring long-term performance and durability in demanding environments.
• Enhanced System Performance: Advanced filtering technology minimizes noise, providing clean, stable signals for optimal system operation.
• Future-Proof Your Operations: Seamless integration with ControlLogix systems allows for scalable and adaptable automation solutions.
• Streamlined Integration: Designed for straightforward installation and compatibility, reducing setup time and complexity.
• Broad Application Versatility: Supports a wide range of current and voltage inputs, making it suitable for diverse industrial challenges.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1756-IF8 ControlLogix 8-Point Analog Input Module. Experience unparalleled precision, reliability, and seamless integration for your critical applications. Benefit from fast shipping and worldwide delivery options.
