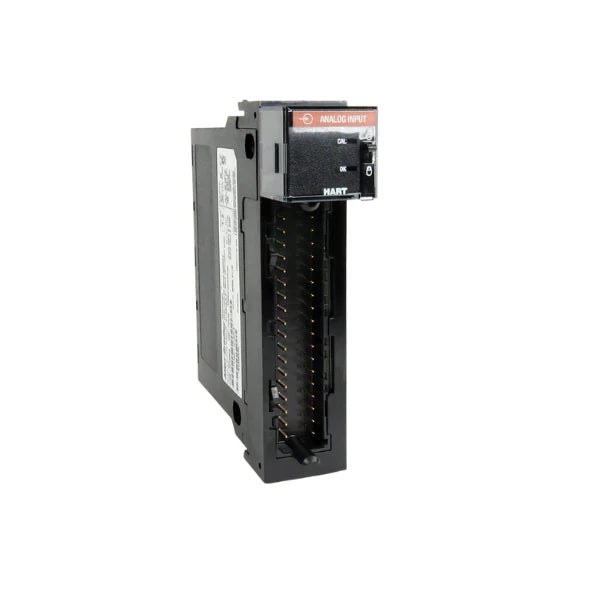

Allen-Bradley 1756-IF16H

Overview

The Allen-Bradley 1756-IF16H is a high-performance, 16-channel differential analog input module meticulously engineered for seamless integration into ControlLogix systems. This module is designed to meet the demands of advanced process automation, offering precise current signal acquisition (0–20 mA / 4–20 mA) coupled with robust HART communication capabilities on every channel. Experience unparalleled visibility and control over your industrial processes with the ability to simultaneously gather critical analog data and execute HART digital commands, facilitating efficient diagnostics, streamlined configuration, and superior device integration. Each channel is equipped with its own dedicated HART modem, eliminating data multiplexing and ensuring real-time, accurate communication with field instrumentation, all within a compact and powerful module footprint. The 1756-IF16H stands as a cornerstone for modern industrial environments demanding precision, reliability, and advanced communication.

Key Features

• 16 Differential Analog Inputs: Supports industry-standard 0–20 mA and 4–20 mA current input ranges for versatile sensor connectivity.
• Dedicated HART Modem Per Channel: Provides independent, real-time digital communication and diagnostics for each connected field device, maximizing data integrity and speed.
• High Accuracy & Resolution: Delivers exceptional precision with 16-bit resolution and typically ±0.05% of full scale accuracy, crucial for demanding process applications.
• Channel-by-Channel Configuration: Offers ultimate flexibility, allowing individual adjustment and configuration for mixed signal types within the same module.
• Real-Time Diagnostics & Monitoring: Includes comprehensive fault detection and continuous monitoring of HART variables, enabling proactive maintenance and minimizing downtime.
• Hot-Swappable & Removable Terminal Blocks: Facilitates quick, safe, and efficient installation, maintenance, and system upgrades without interrupting operations.
• ControlLogix & Studio 5000 Compatibility: Seamlessly integrates with existing ControlLogix architectures and is fully configurable using Studio 5000 Logix Designer software.

Technical Specifications

• Catalog Number: 1756-IF16H
• Channels: 16 differential
• Input Signal Range: 0–20 mA, 4–20 mA
• Resolution: 16 bits
• HART Support: Yes (dedicated modem per channel)
• Accuracy: ±0.05% of full scale (typical)
• Input Impedance: 250 ohms
• Isolation: Channel-to-backplane and channel-to-channel isolation
• Backplane Current: 1200 mA @ 5.1V DC, 3 mA @ 24V DC
• Operating Temperature: 0°C to +60°C
• Mounting: ControlLogix chassis
• Compatible Software: Studio 5000 Logix Designer

Applications

• Advanced Process Control Systems: Essential for critical industries such as oil & gas, water treatment, chemical processing, and pharmaceutical manufacturing where precise measurement and control are paramount.
• Enhanced Device Integration: Facilitates seamless communication and data exchange with a wide array of HART-enabled field instruments, simplifying complex system architectures.
• Proactive Diagnostics & Configuration: Enables retrieval of secondary variables, comprehensive status information, and alerts from intelligent field devices, optimizing operational efficiency and predictive maintenance.
• Industrial Automation Projects: Ideal for high-speed, high-accuracy current signal monitoring in diverse industrial automation applications requiring robust and reliable performance.
• Remote Monitoring & Asset Management: Leverage HART data for remote analysis, configuration, and management of distributed assets, reducing site visits and improving response times.
• System Modernization & Upgrades: A perfect choice for upgrading legacy systems to incorporate advanced HART communication capabilities, extending the life and functionality of existing infrastructure.

Why Choose This Model?

• Unmatched HART Integration: The 1756-IF16H provides true 16-channel analog input with full HART support, differentiating it from modules offering limited or multiplexed HART capabilities.
• Superior Data Integrity: With a dedicated modem per channel, you eliminate data multiplexing issues, ensuring each signal has its own dedicated communication pathway for maximum reliability and speed.
• Reduced Downtime & Enhanced Control: Integrated HART diagnostics natively within the module drastically reduce troubleshooting time and provide richer information for improving control strategies.
• Cost-Effective & Space-Saving: Consolidating 16 channels with advanced HART functionality into a single module optimizes cabinet space and potentially reduces overall system complexity and cost.
• Robust Industrial Design: Engineered to Allen-Bradley's stringent industrial standards, guaranteeing reliable operation in harsh environments and critical applications.
• Future-Ready Solution: Invest in a module that not only meets today's requirements but provides a foundation for future advancements in process intelligence and automation.

Order Now

The Allen-Bradley 1756-IF16H ControlLogix Analog Input Module is currently in stock and available for global delivery. Enhance your process control capabilities with this advanced solution. Please note, accessories and specific terminal blocks are sold separately to allow for customized configurations.
