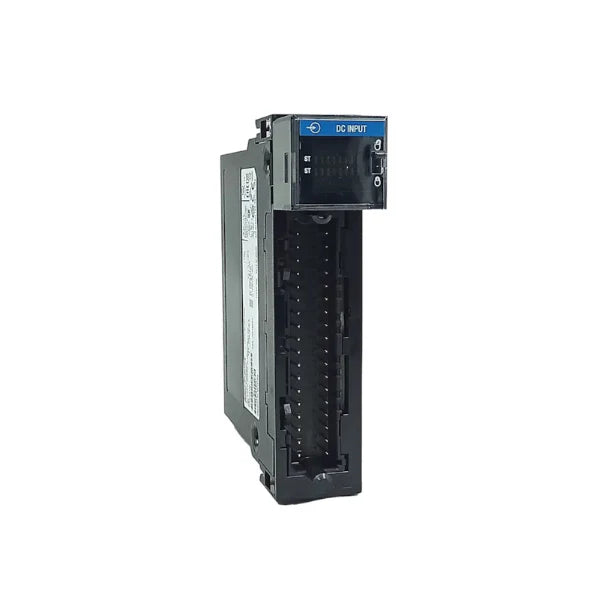

Allen-Bradley 1756-IB16I

Overview

The Allen-Bradley 1756-IB16I is a robust and highly reliable 16-point DC input module specifically engineered for seamless integration with ControlLogix systems. This module is designed to provide exceptional signal integrity and minimize noise interference through its individually isolated inputs. Operating within a versatile 10-30V DC range, the 1756-IB16I ensures precise and accurate monitoring of discrete signals, making it an indispensable component for demanding industrial automation environments. Its sophisticated design not only guarantees high performance but also offers flexible and secure wiring options, compatible with 1756-TBCH or 1756-TBS6H Removable Terminal Block (RTB) housings. Whether you're upgrading an existing system or implementing a new one, the 1756-IB16I offers a high-performance, compact, and easily integrated solution for critical industrial applications.

Key Features

• 16 Individually Isolated DC Inputs: Provides superior signal integrity and drastically reduces electrical noise, ensuring reliable data acquisition in harsh industrial settings.
• Wide 10-30V DC Operating Voltage: Optimized for low-voltage industrial applications, offering flexibility and compatibility across various power systems.
• ControlLogix System Integration: Designed for seamless compatibility with Allen-Bradley ControlLogix platforms, ensuring hassle-free setup and operation.
• Compatible with RTB Housings (1756-TBCH/1756-TBS6H): Facilitates secure, reliable, and convenient wiring connections, simplifying installation and maintenance.
• Compact and Space-Efficient Design: Maximizes panel space utilization within ControlLogix chassis, ideal for installations where footprint is a critical consideration.
• Enhanced Diagnostic Capabilities: Offers insights into module status and input conditions, aiding in faster troubleshooting and reduced downtime.
• Robust Industrial Construction: Built to withstand the rigors of industrial environments, ensuring long-term reliability and performance.

Technical Specifications

• Model: 1756-IB16I
• Number of Inputs: 16 (Individually Isolated)
• Operating Voltage: 10-30V DC
• Current Draw @ 5.1V: 250 mA
• Current Draw @ 24V: 3 mA
• Connection Type: 36-Pin
• Compatible Terminal Blocks: 1756-TBCH, 1756-TBS6H
• Mounting Type: ControlLogix Chassis
• Series: ControlLogix
• Isolation Voltage: 250V (continuous) from input to backplane and input to input (verified by one minute dielectric withstand test at 1500V AC)
• Environmental Operating Temperature: 0°C to 60°C (32°F to 140°F)

Applications

• Factory Automation Systems: Provides high-reliability DC signal monitoring for automated assembly lines, robotics, and discrete manufacturing processes.
• Process Control Environments: Ensures stable and accurate input detection for temperature, pressure, and flow control in industries like chemical, oil & gas, and pharmaceuticals.
• Machine Interface Management: Supports seamless integration with industrial control panels and human-machine interfaces (HMIs) for real-time operational feedback.
• SCADA & Distributed I/O Systems: Enhances data acquisition reliability and remote monitoring capabilities in large-scale supervisory control and data acquisition systems.
• Building Automation: Ideal for monitoring various sensors and devices in intelligent building management systems.
• Power Generation and Distribution: Critical for supervisory control and data acquisition in substations and power plants, ensuring reliable input from protective relays and monitoring devices.

Why Choose This Model?

• Unmatched Signal Reliability: The individually isolated inputs are a cornerstone for applications where signal integrity and noise rejection are paramount, preventing ground loops and enhancing system stability.
• Seamless ControlLogix Ecosystem Integration: As a native ControlLogix module, it offers unparalleled compatibility and ease of integration, leveraging the full power of Rockwell Automation's architecture for simplified programming and maintenance.
• Cost-Effective Solution for Industrial Control: By minimizing troubleshooting time, reducing electrical interference, and offering a durable design, the 1756-IB16I contributes to a lower total cost of ownership over its operational lifespan.
• Enhanced System Uptime: Reliable input monitoring and robust design contribute directly to increased operational uptime, a critical factor in maintaining productivity and profitability in manufacturing and process industries.
• Flexible and Future-Proof Design: Its compatibility with various terminal blocks and integration capabilities within the ControlLogix platform ensure that your investment remains relevant and adaptable to evolving industrial requirements.
• Trusted Allen-Bradley Quality: Benefit from the renowned quality, support, and global availability associated with the Allen-Bradley brand, ensuring peace of mind for mission-critical applications.

Order Now

Elevate your industrial automation system with the Allen-Bradley 1756-IB16I ControlLogix Isolated DC Input Module. Experience superior signal integrity, robust performance, and seamless integration for your critical applications. Fast shipping and worldwide delivery available.
