Allen-Bradley 1756-HSC

Overview

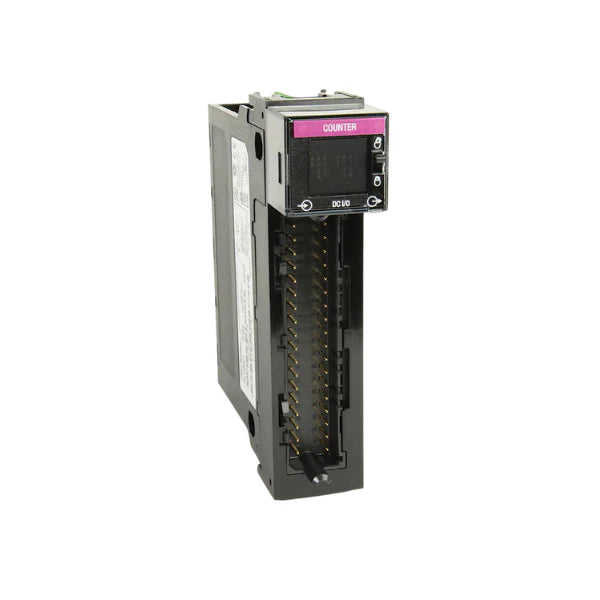

Elevate your industrial automation with the Allen-Bradley 1756-HSC High-Speed Counter (HSC) module, meticulously engineered for seamless integration into ControlLogix systems. This robust module delivers unparalleled high-speed counting capabilities, essential for demanding applications across various industries. With support for two independent 32-bit high-speed counters, the 1756-HSC ensures precise counting and measurement in critical systems such as motion control, sophisticated packaging lines, and intricate process automation. Designed for environments demanding rapid response times and absolute accuracy in pulse counting, this module guarantees smooth, efficient, and reliable system operations, minimizing downtime and maximizing productivity.

The 1756-HSC stands out as a vital component for optimizing industrial processes where timing and count accuracy are paramount. Its advanced design facilitates superior performance in tracking production quantities, controlling machine movements, and managing complex sequences with exceptional reliability. Investing in the Allen-Bradley 1756-HSC means choosing a future-proof solution that enhances your ControlLogix system's capabilities, ensuring your operations remain at the forefront of industrial efficiency and precision.

Key Features

• Precision High-Speed Counting: Experience unmatched accuracy with the module's capability to support high-speed pulse input detection, crucial for reliable performance in applications like motion control and high-volume packaging.
• Dual Independent 32-bit Counters: Benefit from exceptional flexibility with two separate 32-bit counters, allowing for diverse configurations and simultaneous application in systems requiring multiple counting points.
• Versatile Input Compatibility: Supports a wide range of input signals, including differential line driver or transistor signals, ensuring broad compatibility with various industrial sensors and devices.
• Effortless ControlLogix Integration: Enjoy seamless plug-and-play integration into existing Allen-Bradley ControlLogix systems, providing a centralized and streamlined solution for comprehensive industrial control.
• Superior 1 MHz Signal Processing: Capable of handling high-frequency signals up to an impressive 1 MHz, making it perfectly suited for demanding high-speed process monitoring and real-time control.
• Optimized Compact Design: Its space-saving and efficient design allows for easy installation within any ControlLogix chassis, optimizing valuable panel space and contributing to a more organized control environment.
• Broad Industrial Application Range: From intricate motion control and precise process automation to efficient packaging and robust material handling, this module is built to excel across a wide spectrum of industrial applications.

Technical Specifications

• Model Number: 1756-HSC
• Module Type: High-Speed Counter Module
• Compatible System: ControlLogix (1756 Series)
• Counter Resolution: 32-bit
• Number of Counters: 2 independent counters
• Input Type: Differential line driver or transistor signal
• Input Frequency: 1 MHz (for both counters)
• Voltage Rating: 24V DC (nominal)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Certifications: UL, CE, CSA certified
• Weight: Approximately 0.2 kg (0.44 lbs)
• Mounting: Requires a ControlLogix chassis (1756 series)

Applications

• Advanced Motion Control Systems: Essential for precisely monitoring and controlling high-speed processes in complex motion control applications, ensuring smooth and accurate movements.
• Precision Packaging Machinery: Perfectly suited for counting parts, accurately categorizing packaging items, and diligently monitoring critical packaging processes to enhance efficiency and reduce errors.
• Automated Material Handling: Indispensable in sophisticated automated systems for meticulously counting items, reliably monitoring conveyor belts, and other vital material handling operations.
• Industrial Process Automation: Highly effective for applications demanding absolute accuracy in counting and swift pulse detection across diverse industries such as discrete manufacturing, hygienic food processing, and intricate chemical processing.
• Quality Assurance & Inspection: Utilized for high-speed anomaly detection and quality checks on production lines, ensuring only products meeting stringent standards proceed.
• Batching & Filling Operations: Provides critical count data for automated batching systems and precise liquid/powder filling operations, minimizing waste and ensuring consistent product volume.

Why Choose This Model?

• Unmatched ControlLogix Compatibility: Designed specifically for the ControlLogix platform, guaranteeing flawless integration and maximum system performance.
• Future-Proof Your Operations: With its high-speed and high-resolution capabilities, the 1756-HSC is built to meet the demands of current and future industrial automation challenges.
• Boost Productivity and Efficiency: Accurate and rapid counting capabilities minimize errors and optimize throughput, directly contributing to increased operational efficiency and profitability.
• Robust and Reliable Performance: Engineered with industrial-grade quality, this module offers exceptional durability and consistent performance in harsh operating environments, reducing maintenance needs.
• Simplify Complex Control: Streamline your control architecture with a single, powerful module capable of handling two independent high-speed counting tasks.
• Global Industry Standard Certifications: UL, CE, and CSA certifications ensure compliance with international safety and quality standards, providing peace of mind.

Order Now

Enhance your ControlLogix system's capabilities today with the Allen-Bradley 1756-HSC High-Speed Counter Module. Experience superior precision, reliability, and integration for your most demanding industrial applications. For more solutions within this family, explore our ControlLogix Controllers main category. Discover the complete range of complementary products in our Allen-Bradley Industrial Automation Products master category.
