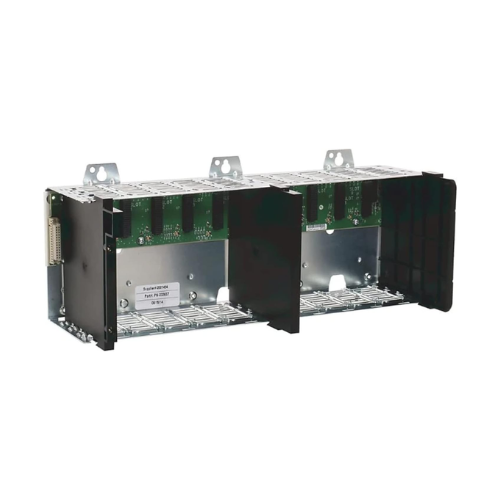

Allen-Bradley 1756-A10

Overview

The Allen-Bradley 1756-A10 is a pivotal component for any high-performance industrial automation system, serving as a robust 10-slot ControlLogix chassis. Meticulously engineered, this chassis provides a high-speed communication infrastructure, ensuring seamless data exchange between all installed modules. Beyond its data handling capabilities, it also excels at efficiently distributing power, guaranteeing stable and reliable operation across your entire ControlLogix setup. Designed for maximum compatibility, the 1756-A10 seamlessly integrates with all ControlLogix modules, empowering you with unparalleled flexibility in configuring your industrial control systems. This ensures future-proofing and adaptability to evolving operational demands. For optimal performance and system integrity, it's designed for horizontal mounting and requires 1756-N2 slot filler modules for any unused slots, maintaining a clean and secure enclosure.

Key Features

• 10-Slot ControlLogix Chassis for Ultimate Flexibility: Provides ample space for a wide array of ControlLogix modules, allowing for highly customized and scalable industrial control systems.
• Ultra-Fast Backplane Communication: Engineered with a cutting-edge backplane that facilitates rapid and reliable data transfer between all connected modules, crucial for time-sensitive applications.
• Optimized Power Distribution: Delivers consistent and stable power to every module within the chassis, safeguarding against operational interruptions and ensuring peak performance.
• Universal ControlLogix Module Compatibility: Designed to accommodate any ControlLogix module, offering effortless integration and expansion possibilities for your existing or new systems.
• Durable Horizontal Mounting Design: Specifically crafted for horizontal installation, making it ideal for integration into standard industrial control panels and enclosures.
• Integral Slot Filler Module Requirement (1756-N2): Ensures proper airflow, prevents dust ingress, and maintains the electromagnetic compatibility (EMC) of the system by requiring slot filler modules for unoccupied slots.
• Robust and Reliable Allen-Bradley Engineering: Built to Allen-Bradley's stringent quality standards, promising long-term durability and dependable performance in demanding industrial environments.

Technical Specifications

• Model: 1756-A10
• Number of Slots: 10
• Backplane Current Ratings:
  • 1.2V DC: 1.5 A (Chassis) / 1.5 A (Per Slot)
  • 3.3V DC: 4 A (Chassis) / 4 A (Per Slot)
  • 5.1V DC: 15 A (Chassis) / 6 A (Per Slot)
  • 24V DC: 2.8 A (Chassis) / 2.8 A (Per Slot)
• Power Dissipation: 6.1 BTU/hr
• Power Consumption: 1.8 W
• Dimensions (WxHxD): 483 x 169 x 145 mm (19.0 x 6.65 x 5.71 in.)
• Minimum Cabinet Size (WxHxD): 762 x 507 x 203 mm (30 x 20 x 8 in.)
• Weight (Approx.): 1.45 kg (3.2 lb)

Applications

• Advanced Factory Automation: Forms the backbone for critical industrial control systems, providing a stable and modular platform for diverse automation tasks.
• Precision Process Control Systems: Essential for applications requiring efficient data communication and reliable power distribution to maintain precise control over industrial processes.
• Seamless Machine Interface Management: Facilitates the integration of various ControlLogix modules, ensuring smooth and responsive interaction between machines and operators.
• Scalable SCADA & Distributed I/O Systems: Enhances the capabilities of supervisory control and data acquisition systems and distributed I/O networks, optimizing industrial control and automation.
• Energy Management Systems: Provides a reliable platform for monitoring and controlling energy consumption in industrial settings.
• Automated Material Handling: Critical for systems that require precise control and high-speed communication for sorting, conveying, and robotic operations.

Why Choose the Allen-Bradley 1756-A10?

• Unmatched Reliability for Critical Operations: Trust in Allen-Bradley's renowned engineering for a chassis that delivers consistent, fault-free performance in demanding industrial environments.
• Future-Proof Your Automation Infrastructure: With its universal module compatibility and flexible 10-slot design, the 1756-A10 allows for easy system expansion and adaptation to emerging technologies.
• Optimize System Performance: The high-speed backplane ensures virtually instantaneous data exchange, while efficient power distribution guarantees stable operation, maximizing your production uptime.
• Streamlined Integration and Installation: Designed with horizontal mounting and clear specifications, integrating this chassis into your existing or new control panels is straightforward and efficient.
• Enhanced System Integrity and Longevity: The requirement for slot filler modules for unoccupied slots demonstrates a commitment to maintaining optimal operating conditions and extending the lifespan of your valuable equipment.
• Global Availability and Support: Benefit from easy access to the product and comprehensive support through a worldwide network, ensuring peace of mind throughout your equipment's lifecycle.

Order Now

Secure your Allen-Bradley 1756-A10 ControlLogix 10-Slot Chassis today to enhance the performance and reliability of your industrial automation systems. Benefit from our fast shipping and comprehensive worldwide delivery options.
