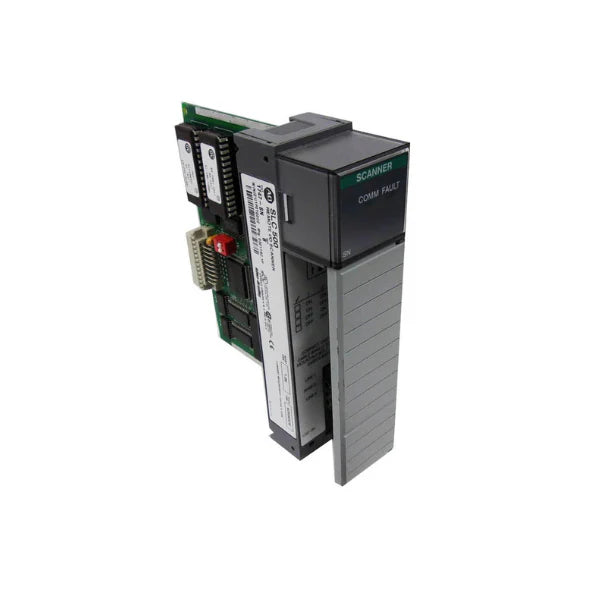

Allen-Bradley 1747-SN

Overview

Unlock the full potential of your SLC 500 control system with the Allen-Bradley 1747-SN Remote I/O (RIO) Scanner Module. Engineered for robust industrial environments, this essential module bridges your SLC processor with remote I/O adapters, enabling seamless and efficient distributed control. By leveraging the trusted RIO network over Blue Hose cabling, the 1747-SN streamlines your automation architecture, significantly reducing complex wiring while boosting system flexibility. With support for a range of data rates up to 230.4 kbps, this module ensures reliable communication and precise control over geographically dispersed I/O devices, making it a cornerstone for modernizing and maintaining legacy systems.

Key Features

• Seamless RIO Communication: Expertly interfaces with remote I/O adapters via the industry-standard Blue Hose network, ensuring dependable data exchange.
• Flexible High-Speed Data Rates: Supports versatile communication speeds of 57.6 kbps, 115.2 kbps, and 230.4 kbps to adapt to diverse application requirements.
• Optimized Distributed Control: Empowers your central SLC processor to efficiently manage and control remote devices, simplifying system management.
• Comprehensive Diagnostic LEDs: Integrated LED indicators provide immediate and clear visual feedback on module status and potential faults for quick troubleshooting.
• Expansive Addressing Capability: Capable of supporting up to 32 logical racks of remote I/O, offering extensive system scalability.
• Compact SLC 500 Integration: Designed to fit perfectly into standard SLC 500 chassis, ensuring easy installation and compatibility.
• Robust Industrial Design: Built to withstand demanding industrial conditions, ensuring long-term reliability and performance.

Technical Specifications

• Catalog Number: 1747-SN
• Module Type: Remote I/O Scanner
• Network Protocol: Allen-Bradley Blue Hose (RIO)
• Supported Baud Rates: 57.6 kbps, 115.2 kbps, 230.4 kbps
• Maximum Logical Racks: Up to 32
• Backplane Current (5V): 300 mA
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Mounting: Standard SLC 500 chassis
• Certifications: UL, CE, CSA

Applications

• Advanced Distributed I/O Control: Ideal for systems requiring remote management of industrial input/output devices across various locations.
• Modernization of Legacy RIO Installations: Perfect for maintaining and enhancing existing systems built on Allen-Bradley's reliable RIO architecture.
• Efficient Factory Automation: Enhances productivity in factory settings with remote control panels and machinery.
• Optimized Material Handling Systems: Ensures precise and coordinated control in automated warehousing and logistics operations.
• High-Speed Packaging and Assembly Lines: Provides the necessary communication backbone for rapid and accurate production processes.
• Process Control and Monitoring: Facilitates remote data acquisition and control in diverse process industries.

Why Choose the Allen-Bradley 1747-SN?

• Streamlined Installation: Dramatically simplifies wiring and installation complexity by enabling a distributed I/O architecture, saving time and resources.
• Unparalleled Communication Flexibility: Offers adaptable baud rates and support for various I/O configurations, ensuring compatibility with evolving system needs.
• Guaranteed Reliable Data Exchange: Leverages the proven RIO protocol for robust, interference-resistant industrial network communication, safeguarding your critical operations.
• Seamless Legacy System Integration: Designed to provide full compatibility and continued support for your existing RIO-based systems, extending their operational life.
• Built for Endurance: Its compact and durable construction is purpose-built for the challenging conditions of industrial environments, promising long-term, dependable performance.
• Expert Allen-Bradley Quality: Benefit from the renowned reliability and engineering excellence synonymous with the Allen-Bradley brand, ensuring a trusted solution for your automation needs.

Order Now

The Allen-Bradley 1747-SN Remote I/O Scanner Module is currently in stock and available for immediate shipment to optimize your industrial control system without delay. Enhance your SLC 500 platform with this critical component for superior distributed I/O management. For a comprehensive overview of compatible models and specifications, please return to our SLC 500 Controllers main category. Discover the complete spectrum of premium automation solutions within our master category of Allen-Bradley Industrial Automation Products, including controllers, drives, motors, HMIs, and essential accessories.
