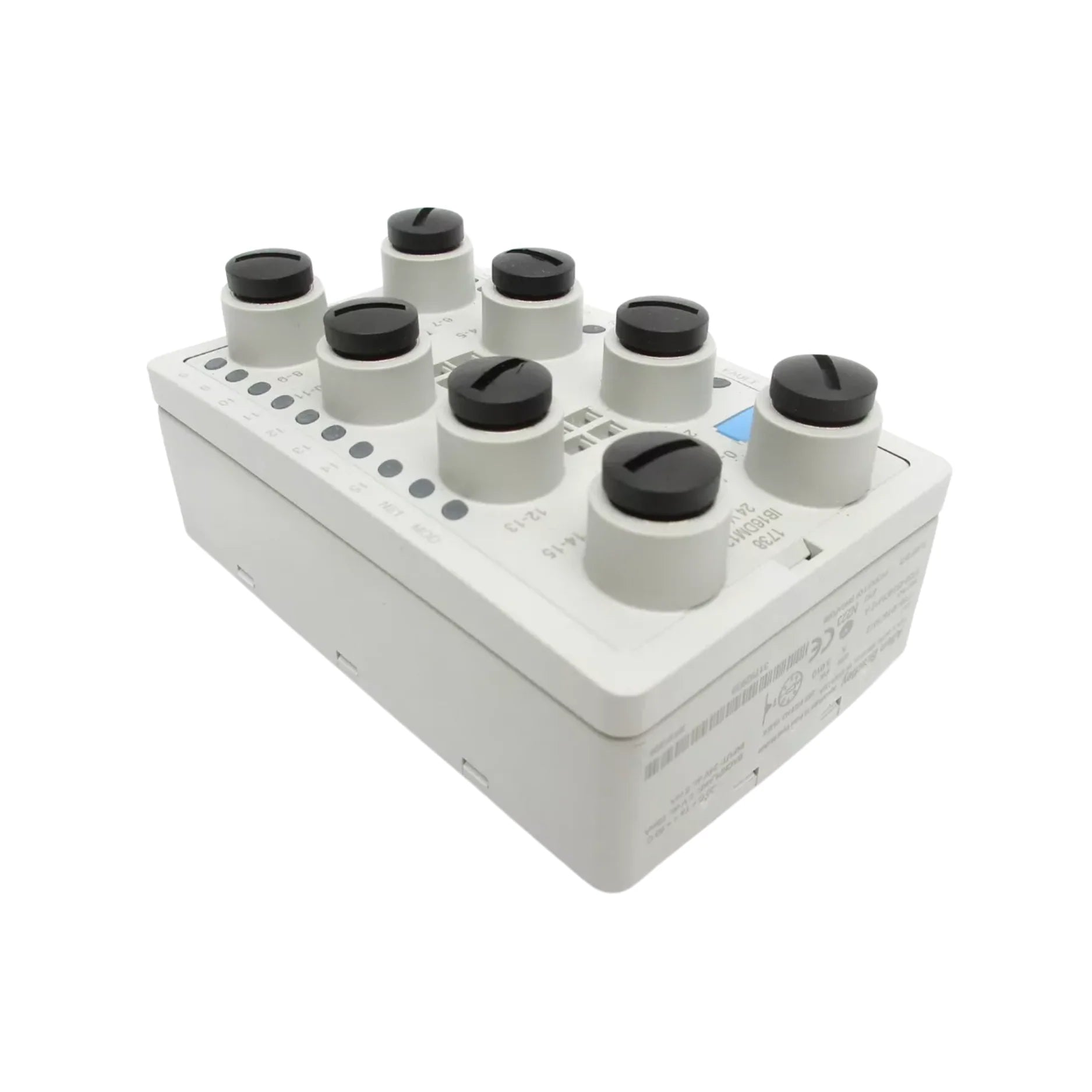

Allen-Bradley 1738-IB16DM12

Overview

The Allen-Bradley 1738-IB16DM12 is a high-performance ArmorPoint I/O input module expertly engineered to provide 16 sinking (NPN) inputs for 24V DC signals. Designed for demanding industrial environments, this module boasts robust M12 connectors, ensuring secure, quick, and reliable connections. Its exceptional IP65/66/67 ratings signify superior protection against dust, water ingress, and other environmental hazards, allowing for direct machine mounting without the need for additional enclosures. This not only simplifies installation but also reduces overall system cost and complexity. Ideal for a wide range of automation applications, the 1738-IB16DM12 delivers unparalleled reliability and enhanced diagnostic capabilities for optimal system monitoring and troubleshooting.

Key Features

• 16 Sinking (NPN) Inputs: Provides precise and reliable signal acquisition for 24V DC devices.
• M12 Quick-Disconnect Connectors: Ensures secure, fast, and efficient wiring in various industrial settings.
• IP65/66/67 Environmental Ratings: Offers superior protection against dust and powerful water jets, suitable for harsh washdown environments.
• Direct Machine Mounting: Eliminates the need for costly enclosures, simplifying installation and saving space.
• Enhanced Diagnostic Capabilities: Facilitates proactive monitoring and rapid troubleshooting for increased uptime.
• Compact and Modular Design: Seamlessly integrates into existing ArmorPoint I/O systems for flexible expansion.
• Wide Operating Temperature Range: -20°C to +60°C (-4°F to +140°F) ensures consistent performance in diverse climates.

Technical Specifications

• Model: 1738-IB16DM12
• Input Voltage (Nominal): 24V DC
• Operating Voltage Range: 10–28.8V DC
• Input Current (On-State): 2 mA minimum; 4 mA nominal at 24V DC
• Input Current (Off-State): 1.5 mA maximum
• Input Delay Time (OFF to ON/ON to OFF): 0.5 ms hardware delay + 0–63 ms selectable filter
• Current, Sensor Source (Per Input): 50 mA maximum
• Current, Sensor Source (Per Module): 800 mA maximum
• Power Dissipation: 2.7W maximum at 28.8V DC
• Thermal Dissipation: 9.2 BTU/hr maximum at 28.8V DC
• Operating Temperature: -20°C to +60°C (-4°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 5% to 95% non-condensing
• Shock: 30g operating, 50g non-operating
• Vibration: 5g at 10–500Hz
• Certifications: UL Listed, CE Marked, C-Tick

Applications

• Advanced Industrial Automation Systems: Enhances reliable input signal acquisition from a multitude of field devices, including sensors, limit switches, and control buttons.
• Robust On-Machine Integration: Perfectly suited for direct mounting on machinery in harsh environments, minimizing wiring and maximizing flexibility.
• Water and Dust Exposed Environments: Ideal for food and beverage, automotive, and heavy manufacturing industries where washdowns or dusty conditions are common.
• Distributed I/O Architectures: Facilitates decentralized control systems, reducing cabinet space requirements and simplifying system design.
• Process Control and Monitoring: Provides accurate and timely data for critical process control applications, ensuring operational efficiency and safety.

Why Choose This Model?

• Unmatched Durability: With its high IP ratings and rugged construction, this module is built to endure the most challenging industrial conditions, ensuring long-term operational integrity.
• Streamlined Installation: M12 connectors and direct machine mounting capabilities significantly reduce installation time and complexity, delivering immediate cost savings.
• Superior Reliability: Allen-Bradley's reputation for quality, combined with advanced diagnostic features, ensures consistent and dependable performance in critical applications.
• Space and Cost Efficiency: Eliminates the need for additional enclosures, thereby saving valuable cabinet space and reducing overall system costs.
• Seamless Integration: Designed to effortlessly integrate into your existing ArmorPoint I/O infrastructure, providing a scalable and future-proof solution.
• Global Compliance: UL Listed, CE Marked, and C-Tick certifications guarantee adherence to international safety and quality standards, facilitating worldwide deployment.
