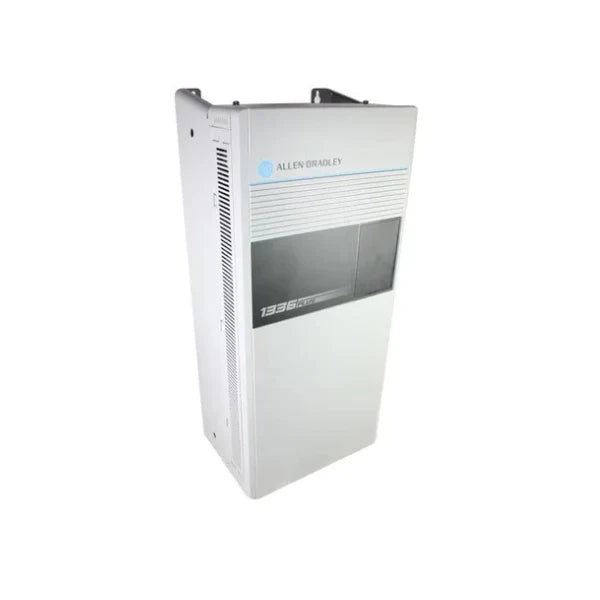

Allen-Bradley 1336S-B050-AA-DE

Overview

The Allen-Bradley 1336S-B050-AA-DE is a high-performance AC drive from Rockwell Automation's renowned 1336S Drive Series. Engineered for superior precision and efficiency, this drive is meticulously designed to manage the speed and torque of AC motors across a diverse spectrum of industrial applications. Its robust construction and advanced functionalities ensure seamless integration and optimal operational performance within demanding automation systems. The 1336S-B050-AA-DE stands out for its flexibility, ease of use, and efficient energy management, making it an indispensable component for any industrial setup requiring accurate and reliable motor control.

This model is particularly suited for applications demanding high power output and sophisticated control algorithms, delivering consistent and repeatable results crucial for maintaining productivity and operational integrity. With its comprehensive protective features and ability to operate within challenging environmental conditions, the 1336S-B050-AA-DE offers a long-term, reliable solution for modern industrial automation.

Key Features

• High-Efficiency Motor Control: Empowers precise command over AC motor speed and torque, optimizing energy consumption and operational output.
• Versatile Power Output: Capable of controlling motors up to 50 HP (37.3 kW), offering extensive adaptability across various high-power motor-driven applications.
• Advanced Control Algorithms: Incorporates V/Hz, sensorless vector, and closed-loop vector control, ensuring exceptional accuracy in speed and torque management.
• Flexible Communication Options: Supports integration with popular industrial networks like DeviceNet and ControlNet via optional modules, enhancing device interoperability.
• User-Friendly Interface: Features a clear LED display for intuitive monitoring and easy adjustment of drive parameters, simplifying operation and diagnostics.
• Integrated Protection Mechanisms: Equipped with built-in overload, short-circuit, overvoltage, and undervoltage protection, significantly boosting safety and system reliability.
• Compact and Robust Design: Engineered for panel mounting, this drive offers a space-saving solution without compromising on its high-power capabilities and durability.

Technical Specifications

• Product Type: AC Drive
• Model Number: 1336S-B050-AA-DE
• Input Voltage: 380V - 480V AC (3-phase)
• Output Power: 50 HP (37.3 kW)
• Input Frequency: 50/60 Hz
• Output Frequency Range: 0 to 320 Hz
• Current Rating: 78.3 Amps (at rated output)
• Control Type: V/Hz, Sensorless Vector, and Closed-loop Vector Control
• Display Type: LED Display
• Communication Ports: Optional communication modules such as DeviceNet, ControlNet, and RS-232, plus External I/O for diverse device and sensor connections.
• Cooling: Fan-cooled for efficient and sustained operation under elevated loads.
• Protection: Comprehensive short-circuit, overvoltage, and undervoltage protection.
• Dimensions (HxWxD): 37.4 x 12.4 x 10.2 inches (950 x 315 x 260 mm)
• Weight: 65 lbs (29.5 kg)
• Mounting: Panel mount
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 95% non-condensing
• Certifications: UL, CE, and RoHS Compliant

Applications

• Pumps & Fans: Optimizes speed control for pumps and fans in critical HVAC, water treatment, and various industrial process systems.
• Conveyors & Material Handling: Provides precise and reliable motor control for automated conveyor systems and advanced material handling equipment.
• Machine Tool Control: Essential for applications demanding highly accurate motor control, including CNC machines and sophisticated manufacturing equipment.
• Compressor Systems: Efficiently manages motor speeds in industrial and commercial HVAC compressor applications, enhancing productivity.
• Textile Manufacturing: Ensures smooth and consistent motor speed and torque control in diverse textile machinery, improving production quality.
• Packaging Machinery: Delivers accurate control for high-speed packaging lines, reducing waste and increasing throughput.

Why Choose This Model?

• Unmatched Reliability: Built with Allen-Bradley's signature quality, ensuring long-term performance and minimal downtime in critical industrial operations.
• Enhanced Productivity: Advanced control features and powerful output capabilities minimize energy waste and maximize operational efficiency.
• Seamless Integration: Designed for easy integration into existing and new automation systems, reducing installation complexity and costs.
• Broad Application Versatility: Suitable for a wide array of industrial uses, offering a single, powerful solution for diverse motor control needs.
• Future-Proof Technology: Equipped with modern communication options and robust protection, ensuring your investment remains relevant and secure.

Order Now

Elevate your industrial automation capabilities with the Allen-Bradley 1336S-B050-AA-DE AC Drive. Experience unparalleled precision, efficiency, and reliability for your motor control applications. Contact us today to secure this essential component for your operational success!
