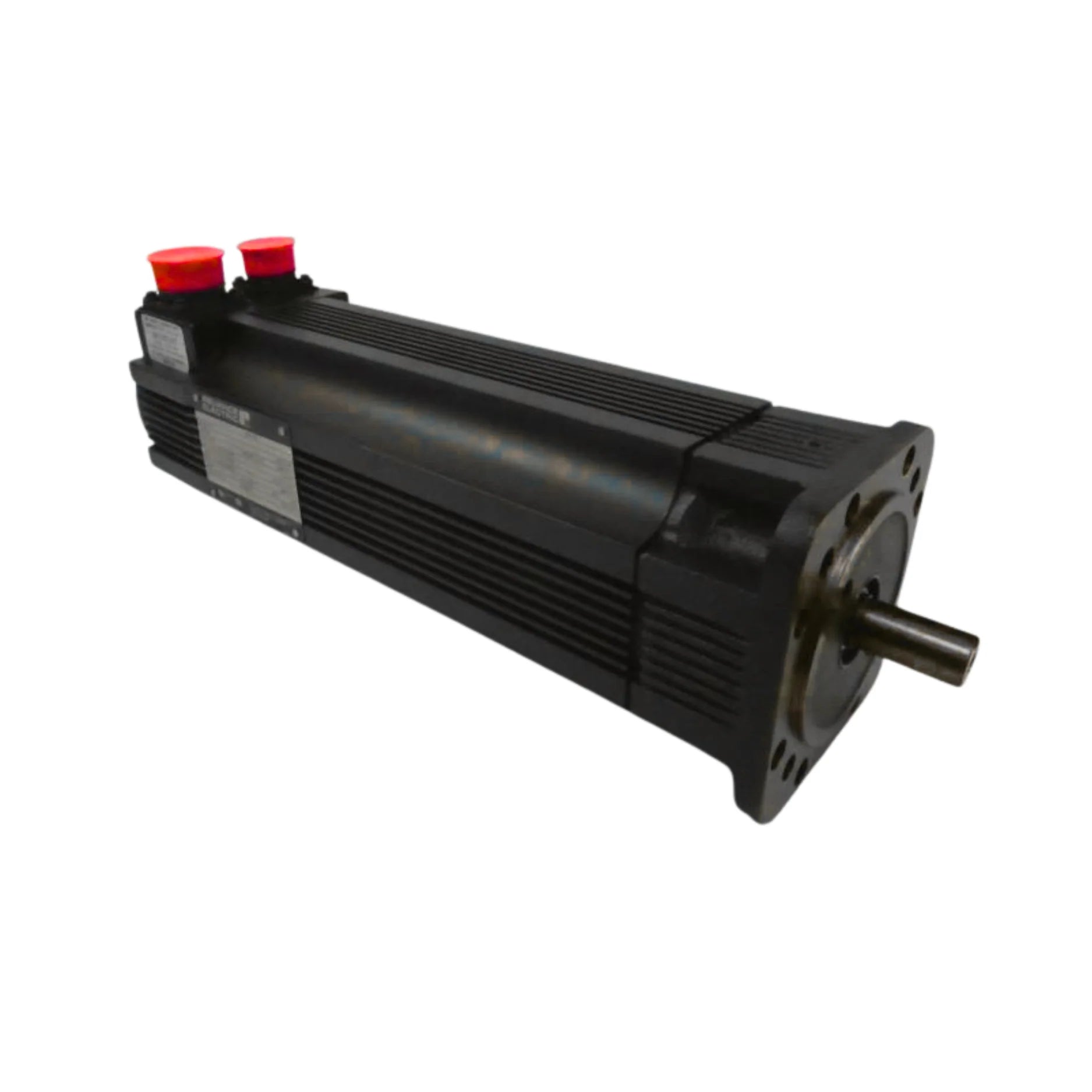

Allen-Bradley 1326AB-B430E-21-K4

Overview

Unleash unparalleled precision and robust performance in your industrial automation with the Allen-Bradley 1326AB-B430E-21-K4 AC Servo Motor. Part of the renowned Torque Plus series, this high-performance motor is engineered for demanding applications requiring exceptional accuracy and reliable motion control. Operating at 460V, it delivers a formidable 6.6 Nm of continuous torque, with peak torque reaching approximately 19.7 Nm, and achieves impressive speeds of up to 3000 RPM. Designed with an integrated brake and resolver feedback, the 1326AB-B430E-21-K4 ensures both safe, controlled stopping and precise position sensing. Its IP65-rated enclosure guarantees durability and protection against dust and water in even the harshest industrial environments, making it the ideal choice for critical automation tasks.

Key Features

• High-Performance AC Servo Motor: Delivers 6.6 Nm continuous torque and up to 3000 RPM for precise and dynamic motion control.
• Integrated Holding Brake: Ensures immediate and secure stopping, enhancing safety and maintaining position during power-off states or emergencies.
• Advanced Resolver Feedback: Provides highly accurate and reliable position sensing for closed-loop control systems.
• Robust IP65 Enclosure: Offers superior protection against dust, water jets, and harsh industrial conditions, ensuring long operational life.
• Optimal Voltage Compatibility: Operates efficiently on a 3-phase, 460V AC input, standard for many industrial setups.
• Wide Drive Compatibility: Seamlessly integrates with Allen-Bradley 1394, Kinetix, and Ultra3000 series servo drives for versatile system integration.
• Compact and Durable Design: Features an aluminum housing with an IEC flange, offering a high torque-to-weight ratio and easy installation.

Technical Specifications

• Model: 1326AB-B430E-21-K4
• Series: Torque Plus
• Voltage Rating: 460V AC, 3-phase
• Continuous Torque: 6.6 Nm
• Peak Torque: Approximately 19.7 Nm
• Rated Speed: 3000 RPM
• Brake: Integrated holding brake
• Power Output: Approximately 1.4 kW
• Feedback Type: Resolver
• Enclosure Protection: IP65
• Frame Size: 108 mm diameter
• Mounting Type: IEC metric flange
• Housing Material: Aluminum
• Insulation Class: UL-recognized
• Motor Weight: Approximately 15.5 kg (including brake)

Applications

• Advanced CNC Machinery: Enables precise and rapid tool positioning for complex machining operations.
• Robotics & Pick-and-Place Systems: Provides the agility and accuracy required for high-speed automated material handling.
• Automated Packaging Lines: Ensures synchronized and reliable movement for increased throughput and reduced errors.
• Precision Motion Control: Ideal for systems where exact positioning and repeatable movements are paramount, especially with integrated emergency stop functionality.
• Material Handling Equipment: Suitable for conveyors, gantry systems, and other equipment requiring secure holding in various states.
• Assembly & Inspection Systems: Facilitates delicate and accurate component placement and quality control processes.

Why Choose This Model?

• Enhanced Safety & Control: The integral holding brake provides immediate and reliable stopping power, crucial for operator safety and process integrity, especially in applications requiring secure hold in a power-off state.
• Exceptional Precision: Resolver feedback delivers superior accuracy in position sensing, empowering your systems with closed-loop control for highly repeatable and precise movements.
• Built for Demanding Environments: With its IP65 rating and rugged aluminum housing, this motor is engineered to withstand challenging industrial conditions, including exposure to dust and water, minimizing maintenance and maximizing uptime.
• Seamless Integration: Designed for full compatibility with popular Allen-Bradley 1394, Kinetix, and Ultra3000 servo drives, ensuring straightforward setup and optimal performance within existing infrastructures.
• Optimized Performance in a Compact Package: Offers a high torque-to-weight ratio, allowing for powerful performance in a relatively compact frame, ideal for space-constrained applications without compromising on output.
• Global Reliability: As an Allen-Bradley product, it comes with the assurance of quality, reliability, and worldwide support, making it a dependable choice for your mission-critical operations.

Order Now

Elevate your automation capabilities with the Allen-Bradley 1326AB-B430E-21-K4 high-performance AC servo motor. Available now and ready to ship worldwide, this motor is the definitive solution for applications where secure stopping, exceptional precision, and robust durability are non-negotiable. Don't compromise on the performance and safety of your industrial systems.

Looking for alternative solutions? Explore our extensive range of Allen-Bradley 1326AB Servo Motors for more high-performance options, or browse our complete selection of Allen-Bradley Servo Motors to find the perfect match for your unique automation requirements.
