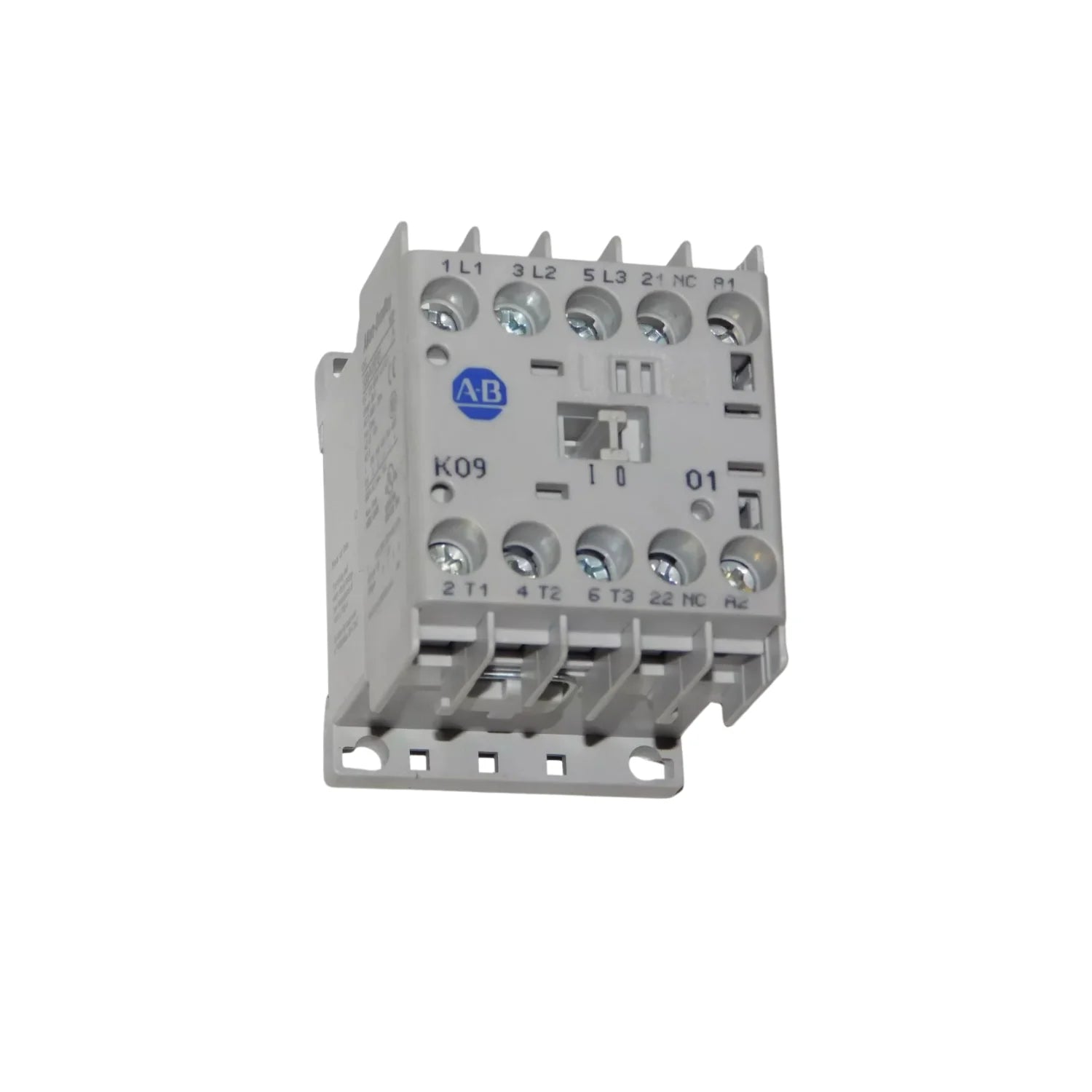

Allen-Bradley 100-K09DJ01

Overview

The Allen-Bradley 100-K09DJ01 is a high-performance IEC mini contactor meticulously engineered for a wide array of industrial control and automation applications. This robust component stands out with its compact design, allowing for seamless integration into space-constrained enclosures without compromising on functionality or reliability. Boasting a 9A current rating, 3 normally open (N.O.) main contacts, and 1 normally closed (N.C.) auxiliary contact, it ensures precise and consistent switching operations crucial for modern automation systems. The inclusion of a 24V DC coil with an integrated diode not only optimizes performance but also significantly reduces the need for external coil suppression, simplifying wiring and enhancing overall system efficiency. Designed to meet stringent IEC standards, the 100-K09DJ01 delivers unparalleled control, making it an indispensable asset for engineers and technicians seeking dependable solutions.

Key Features

• Compact IEC Mini Contactor: Engineered for space-saving installations, facilitating high-density mounting in control panels and machinery.
• 9A Rated Current: Provides a robust and reliable performance for a variety of industrial loads, ensuring consistent operation.
• 3 N.O. Main Contacts and 1 N.C. Auxiliary Contact: Offers versatile switching configurations for complex control circuits and feedback loops.
• 24V DC Coil with Integrated Diode: Enhances control circuit efficiency, minimizes electromagnetic interference (EMI), and eliminates the need for external arc suppression.
• Screw Type Terminals: Ensures secure and straightforward wiring connections, reducing installation time and improving electrical integrity.
• IEC Standard Compliant: Adheres to global industrial standards, guaranteeing compatibility and safety across international applications.
• Single Pack (Quantity: 1): Convenient packaging for individual component replacement or project-specific requirements.

Technical Specifications

• Model: 100-K09DJ01
• Brand: Allen-Bradley
• Product Type: Mini Contactor
• Current Rating: 9 Amperes
• Main Contacts: 3 Normally Open (N.O.)
• Auxiliary Contacts: 1 Normally Closed (N.C.)
• Coil Voltage: 24V DC (Operating Range: 17-30V DC) with Diode for Coil Suppression
• Terminal Type: Screw Terminals
• Compliance: IEC Standard
• Mounting: DIN Rail or Panel Mount
• Operating Temperature: -25°C to +50°C (-13°F to +122°F)

Applications

• Motor Control and Automation Systems: Ideal for starting, stopping, and reversing small motors in automated production lines.
• Industrial Machinery and Conveyor Systems: Provides reliable switching for various components within manufacturing equipment and material handling.
• PLC-Controlled Switching Applications: Seamlessly integrates with Programmable Logic Controllers for precise and automated control processes.
• Electrical Panels and Distribution Boards: Essential for managing power distribution and circuit isolation in industrial electrical systems.
• Heating, Ventilation, and Air Conditioning (HVAC) Systems: Used in control circuits for fans, pumps, and other HVAC components.
• Lighting Control Systems: Facilitates efficient management of industrial and commercial lighting circuits.

Why Choose the 100-K09DJ01?

• Unmatched Reliability: Built with Allen-Bradley's renowned quality, ensuring long-term, consistent performance in demanding industrial environments.
• Space-Saving Design: Its compact footprint allows for greater efficiency in panel layout and design, reducing overall cabinet size and cost.
• Optimized Performance: The integrated diode in the 24V DC coil minimizes power consumption and enhances the lifespan of associated control components.
• Ease of Installation: Screw-type terminals simplify wiring, making installation and maintenance straightforward and time-efficient.
• Versatile Functionality: With both N.O. main and N.C. auxiliary contacts, it offers flexibility for a wide range of control circuit designs.
• Global Standard Compliance: Adherence to IEC standards guarantees suitability for international deployment and interoperability with other compliant equipment.

Order Now

Elevate your industrial control systems with the Allen-Bradley 100-K09DJ01 mini contactor. Experience the perfect blend of compactness, reliability, and advanced features for your most critical applications. Contact us today to secure this essential component and optimize your operational efficiency.
