Allen-Bradley 100-DNY41R

Overview

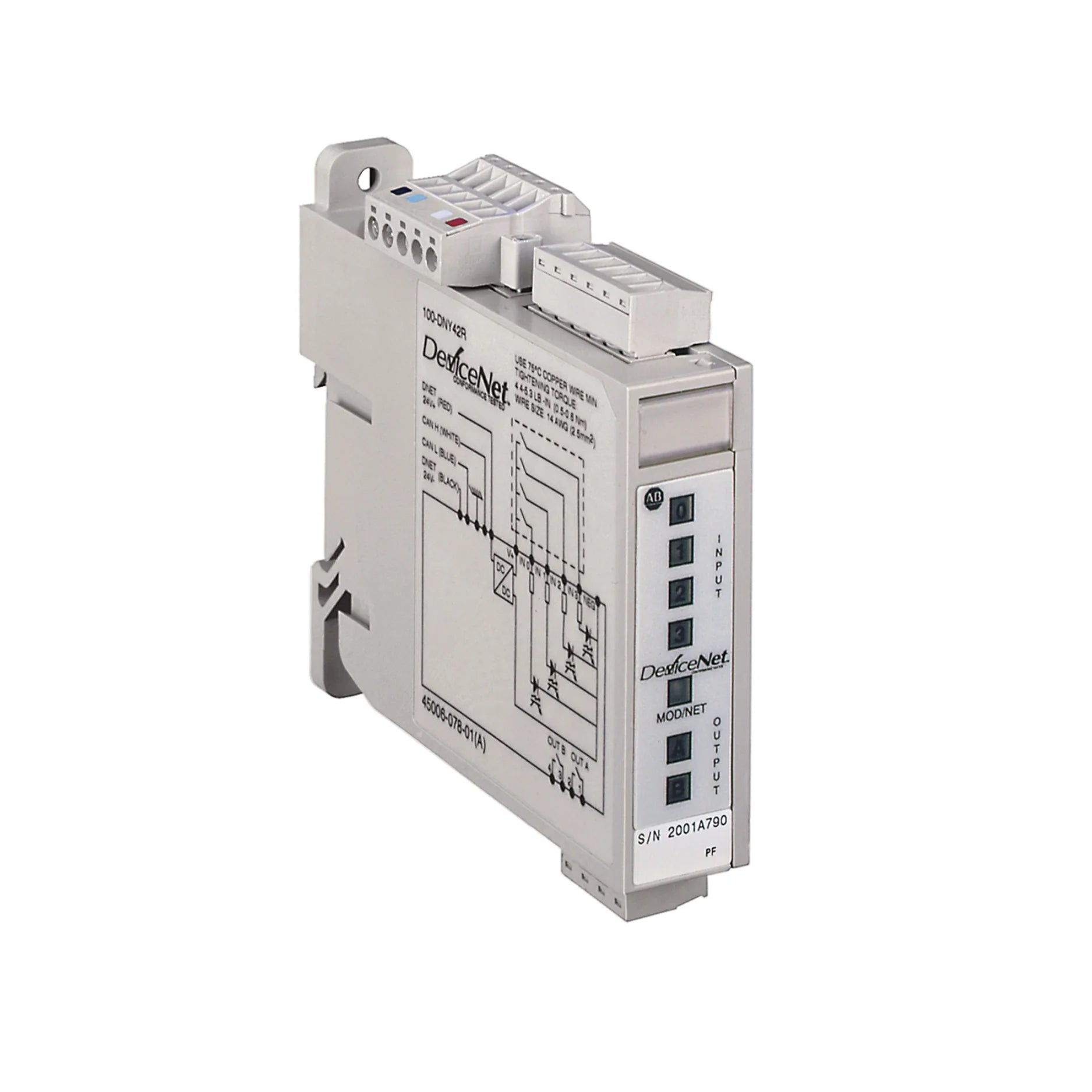

The Allen-Bradley 100-DNY41R Distributed Starter System DSA is an advanced auxiliary module meticulously engineered to seamlessly integrate motor starters and various sensors into a DeviceNet network. This robust unit is equipped with four 120V AC inputs and two versatile relay outputs, rated for up to 250V, making it an indispensable component for streamlining control and monitoring functionalities within diverse industrial automation environments. While the 100-DNY41R has been discontinued as of September 30, 2021, its innovative design and capabilities set a high standard for distributed control systems. For those seeking modern alternatives or migration pathways, Rockwell Automation provides comprehensive migration documentation to ensure continuous operational efficiency and system integrity. This system was designed to enhance communication and control within complex industrial settings, offering a compact and efficient solution for managing critical operational data and device interactions across the DeviceNet protocol.

Key Features

• Seamless DeviceNet Integration: Facilitates effortless connection of motor starters and sensors directly into DeviceNet networks, significantly enhancing overall system communication and precise control.
• Optimized Input Configuration: Features four dedicated 120V AC inputs, meticulously designed to accommodate standard industrial signal levels for reliable data acquisition.
• Flexible Output Configuration: Equipped with two robust relay outputs capable of switching up to 250V, providing versatile control for an extensive range of actuators and diverse devices.
• Compact and Efficient Design: Engineered with a space-saving footprint, ensuring straightforward installation within crowded control panels while optimizing valuable space utilization.
• Comprehensive Diagnostic Indicators: Incorporates intuitive LED status indicators for inputs, outputs, and network status, greatly simplifying troubleshooting processes and routine maintenance tasks.
• Enhanced System Reliability: Built to Allen-Bradley's rigorous quality standards, ensuring dependable performance and longevity in demanding industrial applications.
• Broad Application Compatibility: Designed for versatility, making it suitable for a wide array of industrial automation, manufacturing, material handling, and process control applications.

Technical Specifications

• Model: 100-DNY41R
• Inputs: 4 channels at 120V AC
• Voltage Range (Inputs): 80…132V AC
• On-State Current (Inputs): 2 mA maximum
• Off-State Voltage (Inputs): 40V AC maximum
• Outputs: 2 relay channels
• Voltage Range (Outputs): Up to 240V AC or 30V DC
• Switching Capacity (Outputs): 3600 VA maximum
• Thermal Continuous Current (Outputs): 5 A per output
• Network Interface: DeviceNet compatible
• Baud Rates Supported: 125 kbps, 250 kbps, 500 kbps
• Power Consumption: 3W maximum
• Operating Temperature: -25°C to +60°C (-13°F to +140°F)
• Certifications: UL Listed, CSA Certified, CE Marked

Applications

• Industrial Automation Excellence: Significantly enhances the precise control and efficient monitoring of motor starters and various sensors within sophisticated automated systems, boosting operational efficiency.
• Streamlined Manufacturing Processes: Simplifies the seamless integration of discrete devices into centralized control networks, contributing to a more cohesive and productive manufacturing environment.
• Efficient Material Handling Systems: Facilitates the highly effective control of conveyors, sorters, and a broad spectrum of other material handling equipment, optimizing logistics and throughput.
• Advanced Process Control: Integrates diverse field devices directly into comprehensive process control systems, leading to vastly improved data acquisition capabilities and more precise, responsive control actions.
• Factory Floor Connectivity: Provides a reliable bridge for distributed I/O and control elements, creating a unified and responsive operational network across the factory floor.
• OEM Solutions: An ideal component for Original Equipment Manufacturers looking to integrate robust and reliable DeviceNet communication into their machinery and systems.

Why Choose This Model?

• Proven Reliability: Manufactured by Allen-Bradley, a leader in industrial automation, ensuring a product built to exacting standards of quality and durability for long-term operation.
• Optimized Integration: Specifically designed for DeviceNet networks, the 100-DNY41R offers superior connectivity and data exchange, crucial for complex automation tasks.
• Versatile Control: With both AC inputs and relay outputs, this module provides the flexibility needed to interface with a wide array of industrial sensors and actuators.
• Space-Saving Design: Its compact form factor is a significant advantage in control panels where space is often at a premium, allowing for more efficient system layouts.
• Simplified Maintenance: Integrated diagnostic indicators mean quicker identification of issues, reducing downtime and streamlining maintenance procedures.
• Comprehensive Certifications: UL Listed, CSA Certified, and CE Marked, this module meets critical safety and quality standards, ensuring compliance and peace of mind.

Order Now

While the Allen-Bradley 100-DNY41R Distributed Starter System DSA has been discontinued, its legacy as a robust and efficient solution for DeviceNet integration remains. For current availability, potential new stock via surplus markets, or to explore modern migration options and replacement products that meet today's industrial automation demands, please consult the Rockwell Automation Migration Document or contact your local authorized distributor. Ensure your systems continue to operate with the reliability and precision expected from Allen-Bradley solutions.
