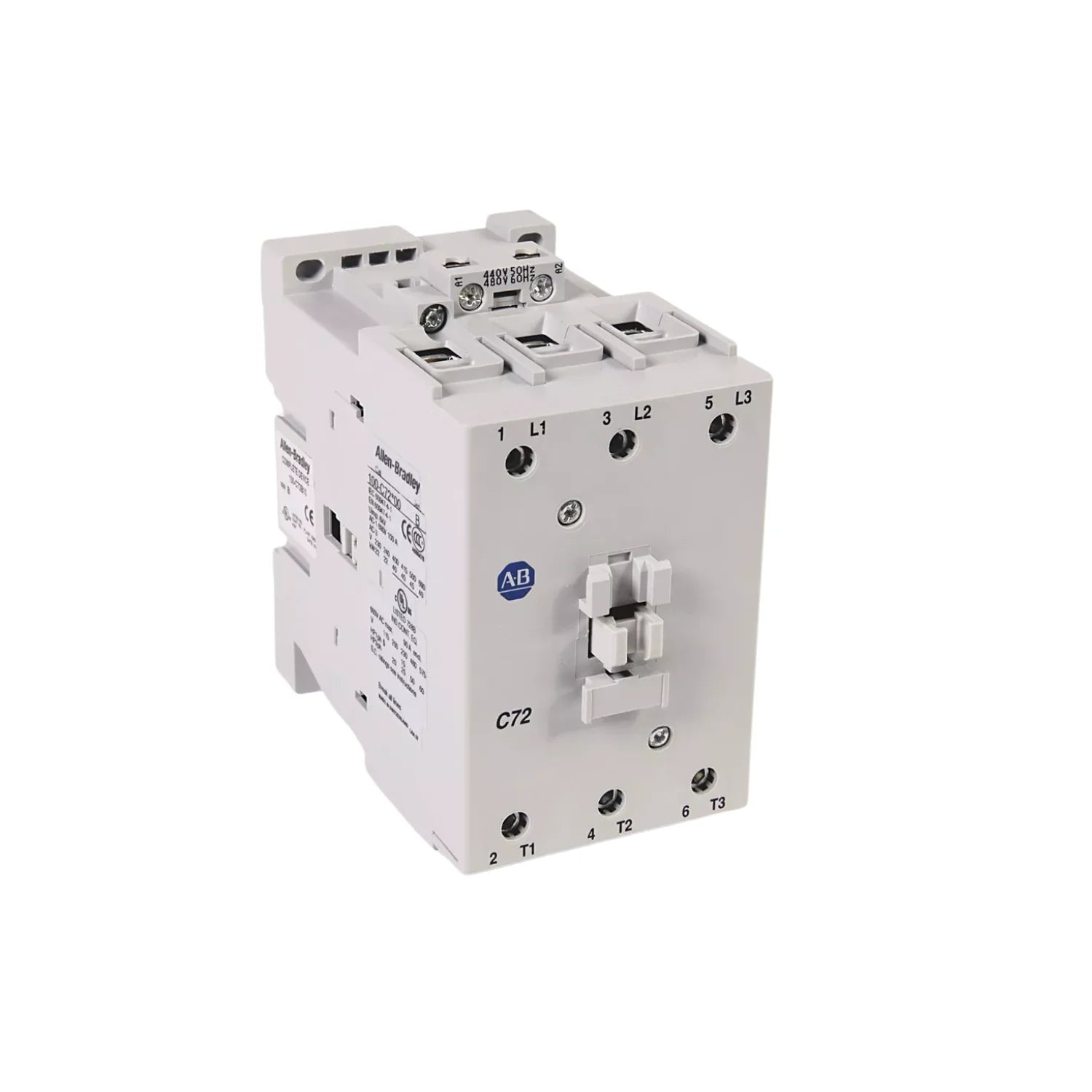

Allen-Bradley 100-C72DJ10 Contactor

Overview

Elevate your industrial control systems with the Allen-Bradley 100-C72DJ10 Contactor, a robust and high-performance solution engineered for reliable motor and power switching. This IEC contactor from Allen-Bradley, a leader in industrial automation, is meticulously designed to meet the rigorous demands of various applications. Boasting a substantial 72-amp operating current and a versatile 3-pole configuration, the 100-C72DJ10 ensures efficient and safe operation in even the most challenging environments. Its innovative 24V DC coil incorporates an integrated diode, simplifying wiring and enhancing protection against inductive voltage spikes, contributing to a longer operational lifespan for your critical equipment. The compact footprint of this contactor allows for optimized space utilization within control panels, making it an ideal choice for new installations and upgrades alike. Experience superior performance and unwavering reliability with this essential component for modern industrial applications.

Key Features

• High-Current Capacity: Rated for a 72A operating current, ideal for powering a wide range of industrial motors and loads.
• Integrated Diode Protection: 24V DC coil with a built-in diode for enhanced surge suppression and simplified wiring.
• 3-Pole Design: Provides robust and reliable switching for three-phase applications.
• Compact IEC Standard: Space-saving design adheres to IEC standards, ensuring compatibility and easy integration into existing panels.
• Secure Screw Terminals: Guarantees reliable electrical connections, minimizing downtime and maintenance.
• Auxiliary Contact Included: Features 1 Normally Open (N.O.) auxiliary contact for convenient signaling and interlocking.
• Versatile Mounting: Designed for flexible installation via DIN rail or panel mounting, adapting to diverse setup requirements.

Technical Specifications

The Allen-Bradley 100-C72DJ10 Contactor is built to exceptional standards, offering precise control and durability. Key specifications include:

• Model: 100-C72DJ10
• Contactor Type: MCS-C (Modular Contactor System)
• Rated Operating Current: 72 Amperes
• Poles: 3
• Coil Voltage: 24 Volts DC (with Integrated Diode)
• Auxiliary Contacts: 1 Normally Open (N.O.), 0 Normally Closed (N.C.)
• Terminal Type: Screw Terminals
• Line Side Coil Termination: Yes
• Mounting: DIN Rail or Panel Mount
• Standards: IEC Compliant

Applications

The versatility and robust nature of the Allen-Bradley 100-C72DJ10 Contactor make it suitable for a broad spectrum of industrial and commercial applications, including:

• Industrial Motor Control: Essential for starting, stopping, and reversing motors in manufacturing facilities.
• Process Control Systems: Integral to the automation of various industrial processes, ensuring precision and safety.
• HVAC Systems: Reliably controls compressors, fans, and pumps in heating, ventilation, and air conditioning units.
• Pump Control: Ideal for managing pumps in water treatment, irrigation, and other fluid handling applications.
• Electrical Panel Installations: A critical component within control panels for power distribution and circuit protection.
• Conveyor Systems: Provides dependable switching for motors driving conveyor belts in logistics and production.

Why Choose This Model?

Selecting the Allen-Bradley 100-C72DJ10 Contactor means investing in proven performance and cutting-edge technology. Here's why it stands out:

• Unmatched Reliability: Built with Allen-Bradley's renowned quality, ensuring consistent and long-lasting operation in demanding industrial settings.
• Enhanced Protection: The integrated diode within the 24V DC coil provides crucial protection against transient voltage spikes, safeguarding your control circuitry.
• Simplified Installation: Screw terminals and clear markings facilitate quick, secure, and error-free wiring, reducing installation time and costs.
• Space-Saving Design: Its compact IEC form factor allows for efficient use of panel space, crucial in today's space-constrained industrial environments.
• Versatile Functionality: The included auxiliary contact offers added flexibility for interlocking and signaling, enhancing overall system control.
• Optimized Performance: Engineered for efficient power switching, minimizing energy loss and maximizing system uptime.

Order Now

Equip your industrial applications with the reliable and high-performance Allen-Bradley 100-C72DJ10 Contactor. Experience the difference that quality engineering and advanced features can make in your motor control and automation systems. Add this essential component to your inventory today and ensure seamless operation and enhanced safety.
