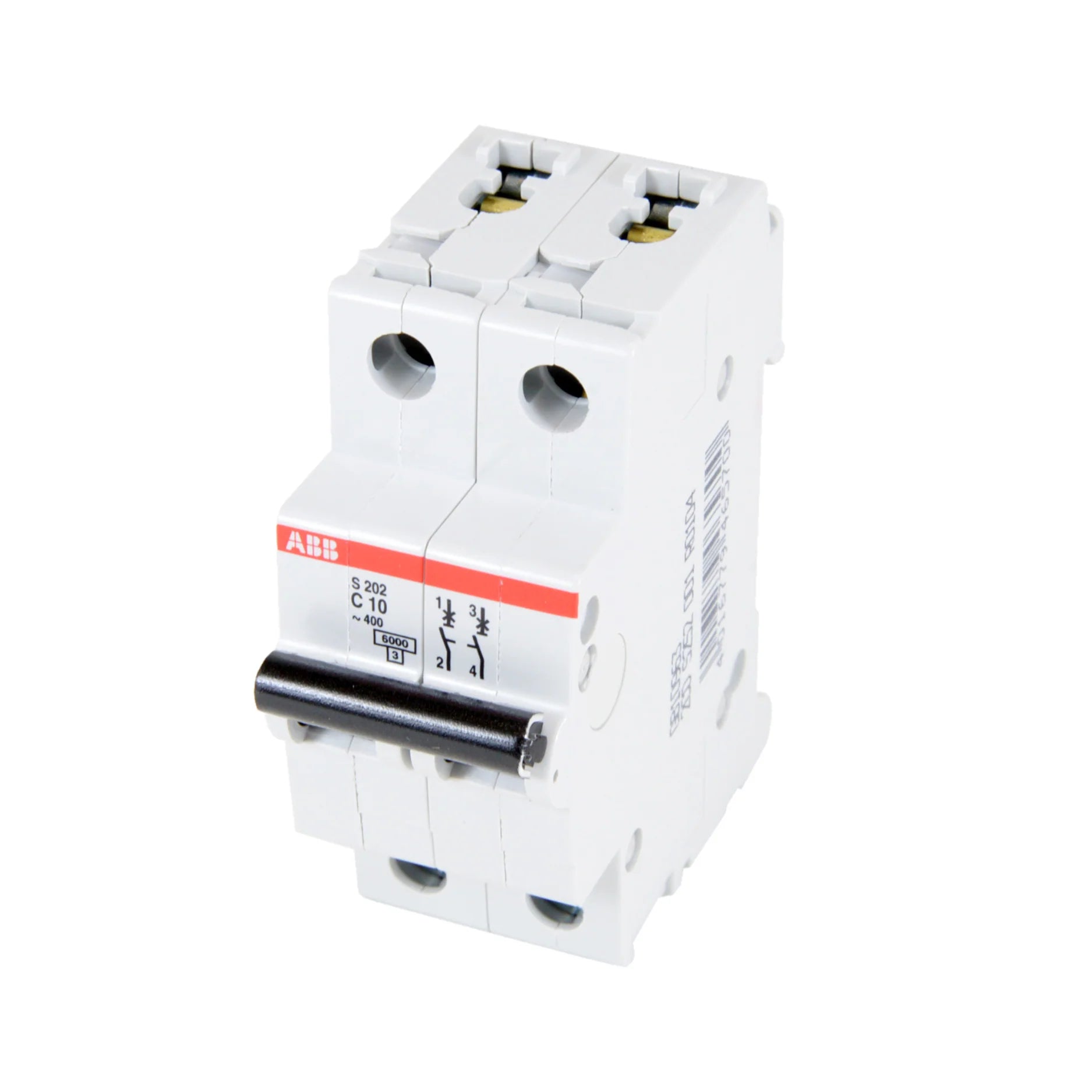

ABB S202-C10

Overview

The ABB S202-C10 2-Pole Miniature Circuit Breaker (MCB) is an essential component for safeguarding electrical installations against damaging overcurrents and short circuits. Engineered by ABB, a global leader in electrical products, this high-quality MCB offers robust protection and dependable performance in a wide array of residential, commercial, and industrial settings. Its C-characteristic tripping curve ensures it's perfectly suited for standard loads with moderate inrush currents, making it a versatile choice for everything from lighting circuits to complex control panels. Designed for ease of installation and long-term reliability, the S202-C10 embodies ABB's commitment to electrical safety and efficiency.

Key Features

• Model: ABB S202-C10
• Number of Poles: 2, offering comprehensive protection for two-wire systems.
• Rated Current: 10A, optimized for circuits requiring this specific current rating.
• Tripping Curve: Type C, ideal for general applications with typical inductive loads and moderate inrush currents.
• Breaking Capacity: 6kA / 10kA (depending on variant), providing robust interruption capability for fault currents.
• Voltage Rating: 230/400V AC, suitable for a broad range of international electrical standards.
• Mounting: Standard 35mm DIN rail, ensuring quick and secure installation in various enclosures.
• Terminal Type: Screw terminals, facilitating secure and reliable electrical connections.
• Compliance: Meets IEC/EN 60898-1 and IEC/EN 60947-2 standards, guaranteeing adherence to stringent safety and performance regulations.
• Protection Class: IP20, indicating protection against solid objects greater than 12.5mm and no protection against liquids.

Technical Specifications

• Model Number: ABB S202-C10
• Rated Current: 10 Amperes
• Rated Voltage: 230/400V AC
• Tripping Characteristic: Type C
• Number of Poles: 2
• Breaking Capacity: 6kA / 10kA (variants available)
• Frequency: 50/60Hz, compatible with standard power grids globally.
• Mounting Type: DIN rail 35mm
• Terminal Capacity: Up to 25mm² wire cross-section, accommodating a range of cable sizes.

Applications

The versatility and reliability of the ABB S202-C10 make it an indispensable component across numerous applications:

• Residential and Commercial Electrical Panels: Provides critical safety by protecting household and commercial circuits from overloads and short-circuits, ensuring reliable power distribution.
• Industrial Control Systems: Excellently suited for integration into machinery and equipment where moderate inrush currents are common, preventing damage and maintaining operational continuity.
• Lighting and HVAC Systems: Safeguards lighting installations and Heating, Ventilation, and Air Conditioning units against electrical faults, extending their lifespan and ensuring consistent performance.
• Power Distribution Boards: An ideal solution for multi-phase installations, offering secure and efficient power distribution while protecting individual circuits.

Why Choose This Model?

Opting for the ABB S202-C10 MCB means investing in superior electrical circuit protection from a brand synonymous with quality and innovation. This 2-pole circuit breaker stands out due to its precise C-characteristic tripping curve, making it adaptable for a vast range of common electrical loads. Its robust breaking capacity, compliant with international standards like IEC/EN 60898-1 and IEC/EN 60947-2, assures you of its ability to handle significant fault currents reliably. The easy-to-install DIN rail mounting and secure screw terminals further enhance its appeal, promising a hassle-free and dependable electrical connection. For those seeking a balance of performance, safety, and reliability in an MCB, the ABB S202-C10 is an exemplary choice.

Order Now

Ensure the safety and efficiency of your electrical systems. Add the ABB S202-C10 2-Pole Miniature Circuit Breaker to your cart today and experience the peace of mind that comes with industry-leading protection. Explore our full range of ABB Contactors and Contactor Relays or browse the main ABB Industrial Automation Products category for more essential electrical components.
