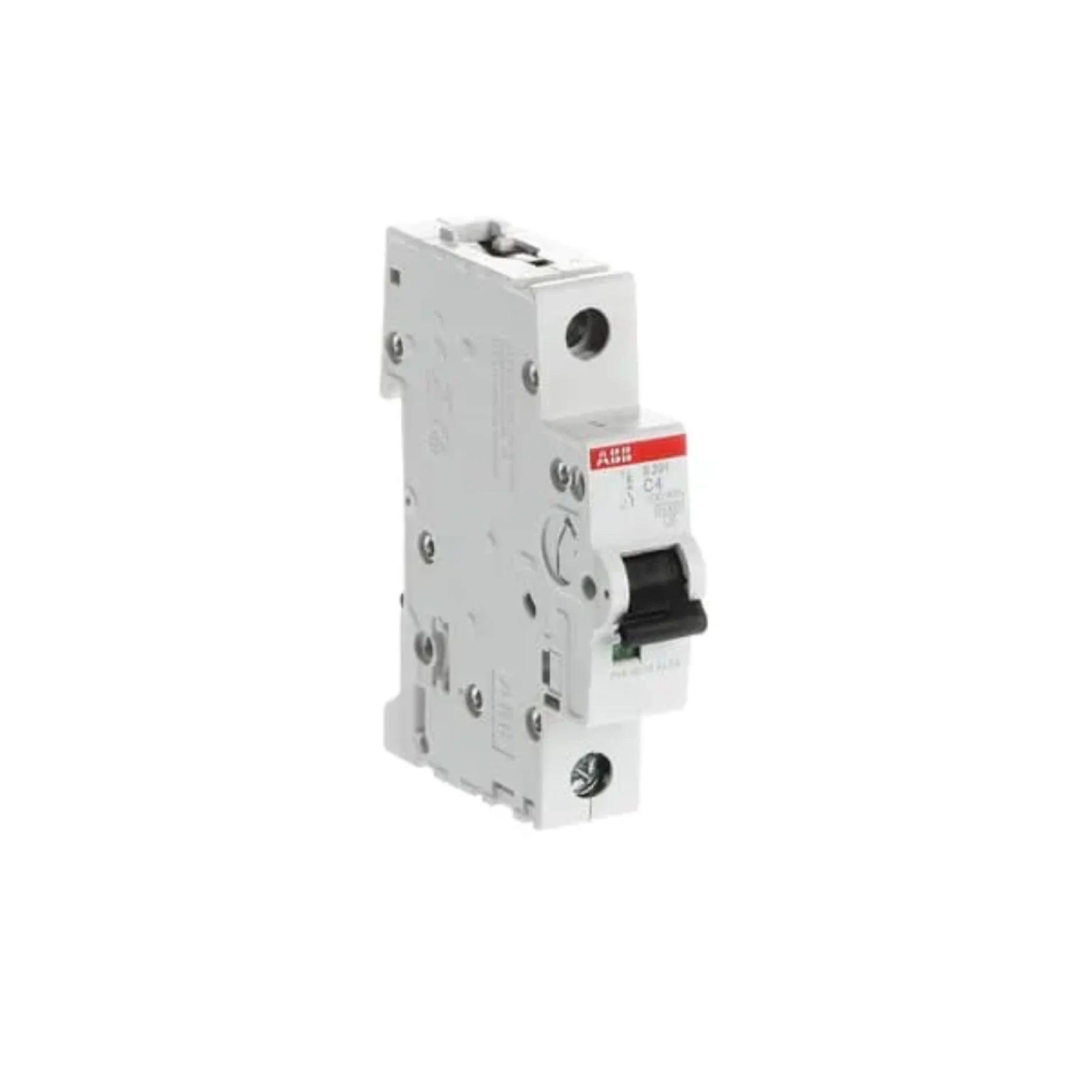

ABB S201-C4

Overview

The ABB S201-C4 is a meticulously engineered Miniature Circuit Breaker (MCB) from ABB's renowned System pro M compact® series, designed to deliver unparalleled protection for electrical installations. This 1-pole device, rated at 4A with a C-curve tripping characteristic, is your dependable solution against the hazards of overcurrents and short circuits. Its robust construction and adherence to international standards make it an essential component for ensuring the safety and longevity of your electrical systems in both residential, commercial, and industrial environments.

Key Features

• Model: ABB S201-C4
• Rated Current: 4A
• Poles: 1-Pole (1P)
• Tripping Curve: C-Type (Optimized for inductive loads with moderate inrush currents, offering versatile application across various electrical systems.)
• Breaking Capacity:
  • IEC/EN 60898-1: 6kA
  • IEC/EN 60947-2: 10kA (Ensuring superior fault interruption capabilities for enhanced safety.)
• Voltage Rating:
  • AC: 230/400V
  • DC: Up to 60V (Providing broad compatibility for diverse power systems.)
• Mounting: DIN Rail (35mm) (Facilitates quick and secure installation in standard electrical enclosures.)
• Terminal Type: Screw clamp (For reliable and secure electrical connections.)
• Standards Compliance: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 (Guarantees adherence to stringent international safety and performance benchmarks.)

Technical Specifications

The ABB S201-C4 is engineered to precise specifications, ensuring optimal performance and reliability. With a compact design suitable for DIN rail mounting, this 1-pole MCB effectively manages electrical circuits up to 4A. Its C-curve characteristic is specifically tailored to handle inductive loads with moderate inrush currents, preventing nuisance tripping while maintaining critical protection. The breaking capacities of 6kA under IEC/EN 60898-1 and 10kA under IEC/EN 60947-2 underscore its capability to withstand and safely interrupt significant fault currents. Designed for a wide range of voltages, both AC (230/400V) and DC (up to 60V), the S201-C4 offers exceptional versatility for various electrical configurations.

Applications

The versatility and robust performance of the ABB S201-C4 make it an ideal choice for a multitude of applications:

• Residential & Commercial Buildings: Provides essential protection for lighting, power outlets, and general electrical circuits, safeguarding against overloads and short circuits that could lead to equipment damage or fire hazards.
• Industrial Control Panels: Crucial for maintaining the safe and continuous operation of automation systems and industrial machinery by protecting sensitive control circuits.
• Lighting and Power Circuits: Perfectly suited for general power distribution and critical control applications, ensuring stable and protected energy supply.
• Small to Medium Sized Installations: An excellent choice where precise 4A protection with a C-curve characteristic is required.

Why Choose This Model?

Opting for the ABB S201-C4 means investing in proven quality and unwavering reliability. As part of ABB's System pro M compact® range, this MCB represents the pinnacle of electrical protection technology. Its compliance with leading international standards such as IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 assures you of a product that meets the highest safety and performance criteria. The C-curve characteristic offers optimal protection for a wide array of inductive loads, making it a highly adaptable component for diverse electrical environments. Easy DIN rail mounting and secure screw clamp terminals further simplify installation and maintenance, offering a hassle-free experience. Choose the ABB S201-C4 for durable, efficient, and compliant circuit protection that you can trust.

Order Now

Ensure the superior safety and efficiency of your electrical installations with the ABB S201-C4 4A Miniature Circuit Breaker. Add this essential component to your system today to benefit from reliable overcurrent and short-circuit protection. Explore our full range of ABB Contactors and Contactor Relays and delve into the broader ABB Industrial Automation Products main category for all your electrical solution needs.
