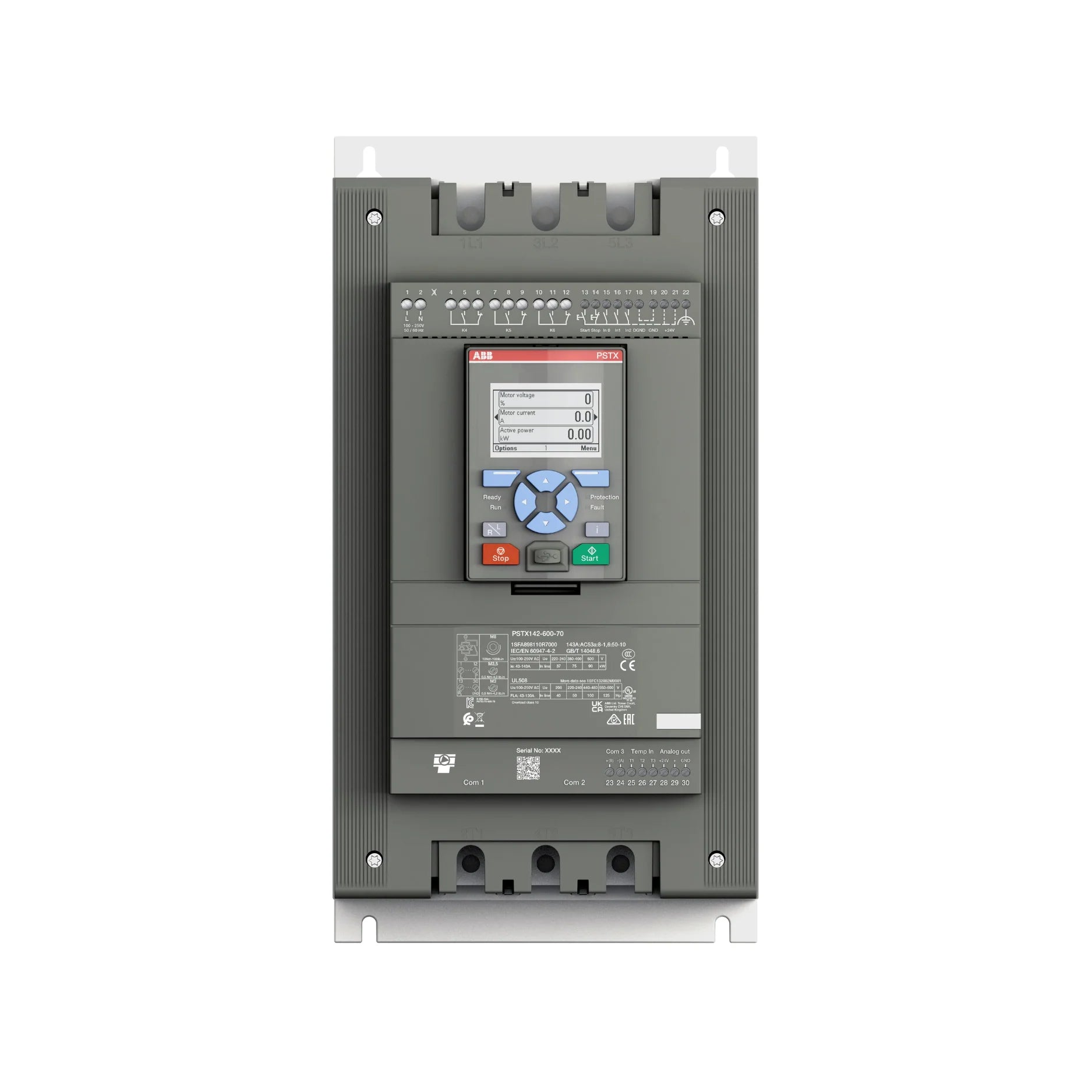

ABB PSTX142-600-70 | 1SFA898110R7000142

Overview

The ABB PSTX142-600-70 is a state-of-the-art advanced motor controller, engineered to deliver unparalleled motor control and protection for demanding industrial applications. As a 142 A softstarter, it seamlessly manages motors up to 75 kW (at 400 V), ensuring smooth operation and extended equipment longevity. Designed for environments requiring robust performance, this unit supports operational voltages up to 600 V and handles a rated operational current of 142 A. Its intuitive graphical interface, coupled with flexible configuration settings and comprehensive integrated protections, establishes the PSTX142-600-70 as a powerful and reliable solution for critical motor control tasks across various sectors.

Key Features

• Rated Operational Current: 142 A
• Rated Operational Voltage: 208–600 V AC, 3-phase
• Control Voltage: 100–250 V AC/DC
• Motor Power Compatibility: Up to 75 kW (at 400 V)
• Integrated Bypass Contactor: Enhances energy efficiency and reduces heat generation.
• Graphical Display: User-friendly interface with keypad and navigation dial for easy setup and monitoring.
• Comprehensive Protections: Includes overload, underload, phase loss, and locked rotor protection to safeguard motors and machinery.
• Versatile Communication Options: Supports Fieldbus plug-in modules (Modbus, Profibus, Ethernet, etc.) for seamless integration into existing control systems.
• Advanced Ramp Functions: Features voltage ramp, current limit, and torque control for optimized motor starting and stopping profiles.
• Cooling Method: Efficient natural convection cooling ensures reliable operation without forced air.

Technical Specifications

• Model Number: PSTX142-600-70
• Product ID: 1SFA898110R7000
• ABB Type Designation: PSTX142-600-70
• Main Circuit Terminals: Screw type for secure connections.
• Mounting Type: Designed for easy panel mounting.
• Operating Temperature Range: -25°C to +60°C, ensuring performance in diverse conditions.
• Dimensions (H x W x D): 340 mm x 196 mm x 212 mm.
• Weight: Approximately 9.4 kg.
• Certifications: CE, UL, cUL, CSA, guaranteeing adherence to international safety and quality standards.

Applications

The ABB PSTX142-600-70 advanced motor controller is ideally suited for a wide array of demanding industrial applications where precise motor control and protection are paramount. Its robust design and comprehensive feature set make it an excellent choice for:

• Pumps: Ensuring smooth starting and stopping to prevent water hammer and reduce wear.
• Fans: Optimizing HVAC systems and industrial ventilation by controlling fan speed and reducing inrush current.
• Compressors: Minimizing mechanical stress during startup, thereby extending compressor lifespan.
• Crushers: Providing reliable control for heavy-duty crushing equipment in mining and aggregate industries.
• Conveyors: Facilitating gentle acceleration and deceleration to protect conveyed goods and mechanical components.
• HVAC Systems: Enhancing energy efficiency and operational reliability in heating, ventilation, and air conditioning infrastructures.
• Industrial Process Machinery: Offering versatile control for various manufacturing and processing equipment where precise motor management is critical.

Why Choose This Model?

The ABB PSTX142-600-70 stands out as a superior choice for motor control due to its blend of innovative features, robust construction, and user-centric design. This model is engineered to deliver significant benefits, making it an indispensable component for optimizing industrial operations:

• Integrated Bypass for Energy Efficiency: Reduces power losses and heat generation, leading to lower operating costs and a longer lifespan for the softstarter.
• Advanced Motor Protection Functions: Comprehensive safeguards against overload, underload, phase loss, and locked rotor conditions prevent costly downtime and motor damage.
• User-Friendly Graphical Display: Simplifies setup, monitoring, and troubleshooting, even for complex applications, reducing the need for specialized training.
• Flexible Control and Communication Options: Ensures seamless integration into diverse industrial automation systems with support for various Fieldbus protocols.
• High Performance in Demanding Environments: Built to withstand harsh industrial conditions, guaranteeing reliability and consistent performance.
• Extended Equipment Life: Minimizes mechanical and electrical stress on motors and connected machinery, significantly extending their operational lifespan.
• Reduced Energy Consumption: Optimized starting and stopping sequences contribute to lower overall energy usage.

Order Now

The ABB PSTX142-600-70 advanced motor controller is available for immediate acquisition, backed by ABB's renowned reliability and extensive global support network. Elevate your industrial motor control capabilities with a solution that promises efficiency, protection, and unparalleled performance. For comprehensive details on purchasing and deployment, please consult our sales team or authorized distributors.
