ABB PSR16-600-70 | 1SFA896107R7000

Overview

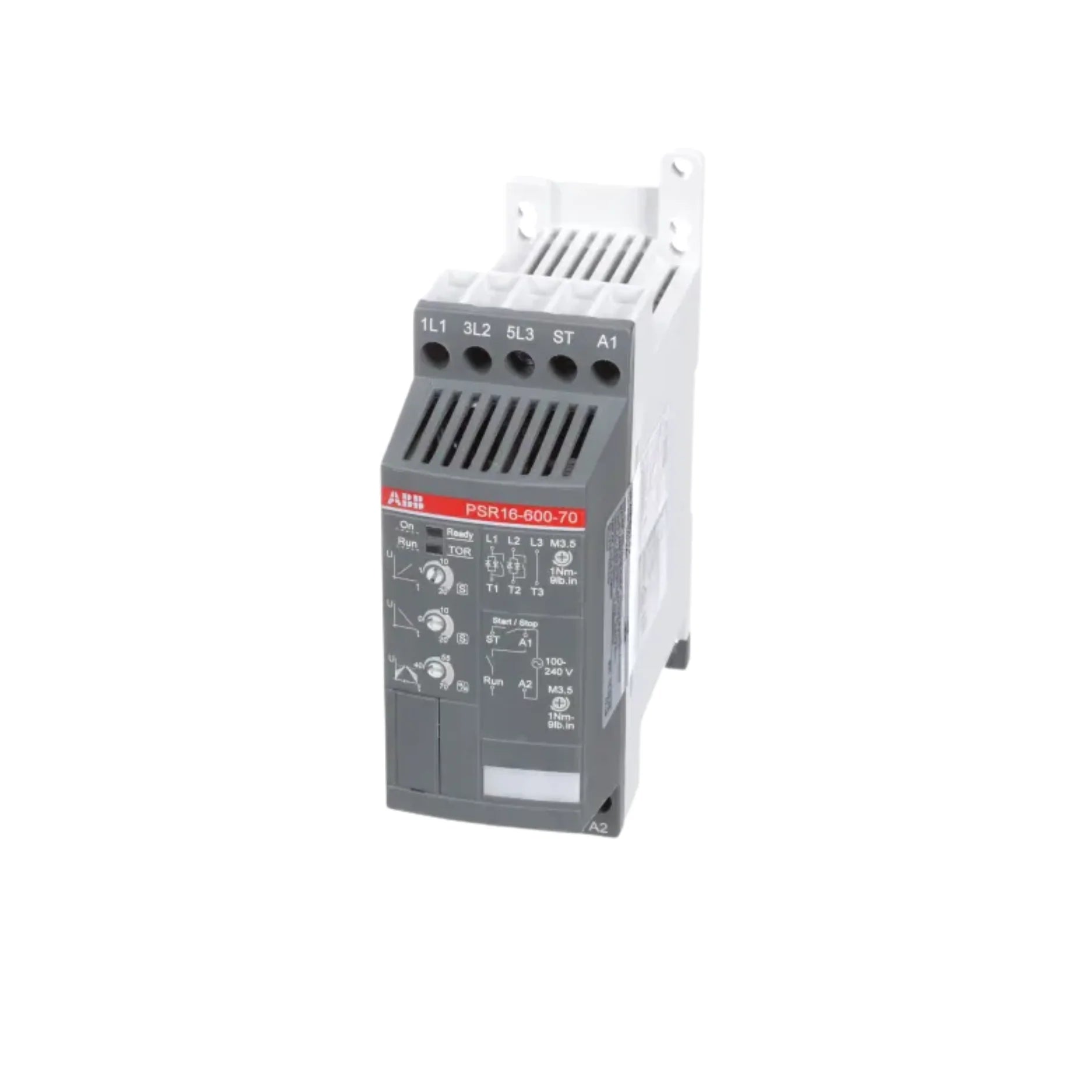

The ABB PSR16-600-70 is a state-of-the-art compact soft starter engineered for seamless control of small three-phase motors. With a robust operational current of 16 A and a versatile voltage range of 208 to 600 V AC, this unit ensures smooth motor acceleration and deceleration. Its innovative two-phase control mechanism, coupled with an integrated bypass function, drastically minimizes heat dissipation and simplifies wiring, making it the ideal solution for basic motor control applications where space is at a premium and easy setup is paramount. This soft starter is identified by Product ID 1SFA896107R7000 and the ABB Type Designation PSR16-600-70.

Key Features

• Rated Operational Current: 16 A, providing ample power for various motor applications.
• Operating Voltage: Adaptable from 208 to 600 V AC for broad compatibility.
• Control Voltage: Flexible 100–240 V AC (50/60 Hz) for diverse power systems.
• Control Type: Advanced two-phase voltage ramp for incredibly smooth soft start and stop functionality.
• Built-in Bypass: Reduces energy loss during operation and streamlines the installation process.
• Adjustable Start/Stop Ramp: Conveniently tune settings with three easily accessible front-facing potentiometers.
• Signal Output: Includes a reliable RUN relay output (NO) for status indication.
• Compact Size: Optimally designed for installation in space-constrained control panels.
• Max Starts per Hour: Capable of up to 100 starts per hour, supporting demanding operational cycles.
• Fieldbus Ready: Option for enhanced communication capabilities via an external adapter.
• Mounting Options: Versatile DIN rail or screw fixing for flexible installation.

Technical Specifications

• Model Number: PSR16-600-70
• Product Series: PSR (Compact Softstarters)
• Rated Current: 16 A
• Voltage Range: 208–600 V AC
• Control Voltage: 100–240 V AC
• Frequency: 50/60 Hz
• Control Type: Voltage ramp (2-phase)
• Bypass: Integrated
• Relay Output: 1 NO (RUN signal)
• Ramp Time Settings: Adjustable via potentiometers
• Max Starts per Hour: 100
• Operating Temperature: -25°C to +60°C
• Protection Class: IP20
• Standards: IEC/EN 60947-4-2
• Dimensions (H x W x D): Approx. 120 mm x 45 mm x 114 mm
• Weight: Approx. 0.6 kg

Applications

The ABB PSR16-600-70 soft starter is highly versatile and perfectly suited for a wide array of industrial and commercial applications, including:

• Pumps: Ensuring smooth operation and reducing water hammer effects.
• Fans: Minimizing mechanical stress and extending equipment lifespan.
• Compressors: Providing controlled startups to prevent current spikes.
• Conveyors: Gentle acceleration for smooth material handling and reduced wear on belts.
• Small Machinery: Ideal for equipment requiring frequent starts and possessing low starting torque, offering enhanced motor protection and system longevity.

Why Choose This Model?

Opting for the ABB PSR16-600-70 soft starter brings numerous advantages to your motor control setups:

• Compact and Cost-Effective: Delivers essential motor control in a space-saving design, providing value without compromise.
• Integrated Bypass: This feature not only conserves energy by reducing heat generation but also simplifies wiring, lowering installation costs and time.
• High Start Rate Capability: With the ability to handle up to 100 starts per hour, it's built for applications with frequent operational cycles.
• Simple Adjustments: Front-panel potentiometers allow for quick and intuitive setup of start and stop ramp times, facilitating easy commissioning and fine-tuning.
• ABB Ecosystem Compatibility: Seamlessly integrates with ABB Motor Protection Switches (MMS) and Fieldbus accessories for expanded functionality and system integration, offering a future-proof solution for your control needs.

Order Now

Enhance your motor's performance and extend its lifespan with the ABB PSR16-600-70 soft starter. This essential component is available for immediate global shipping. Invest in reliability, efficiency, and advanced motor control today.
