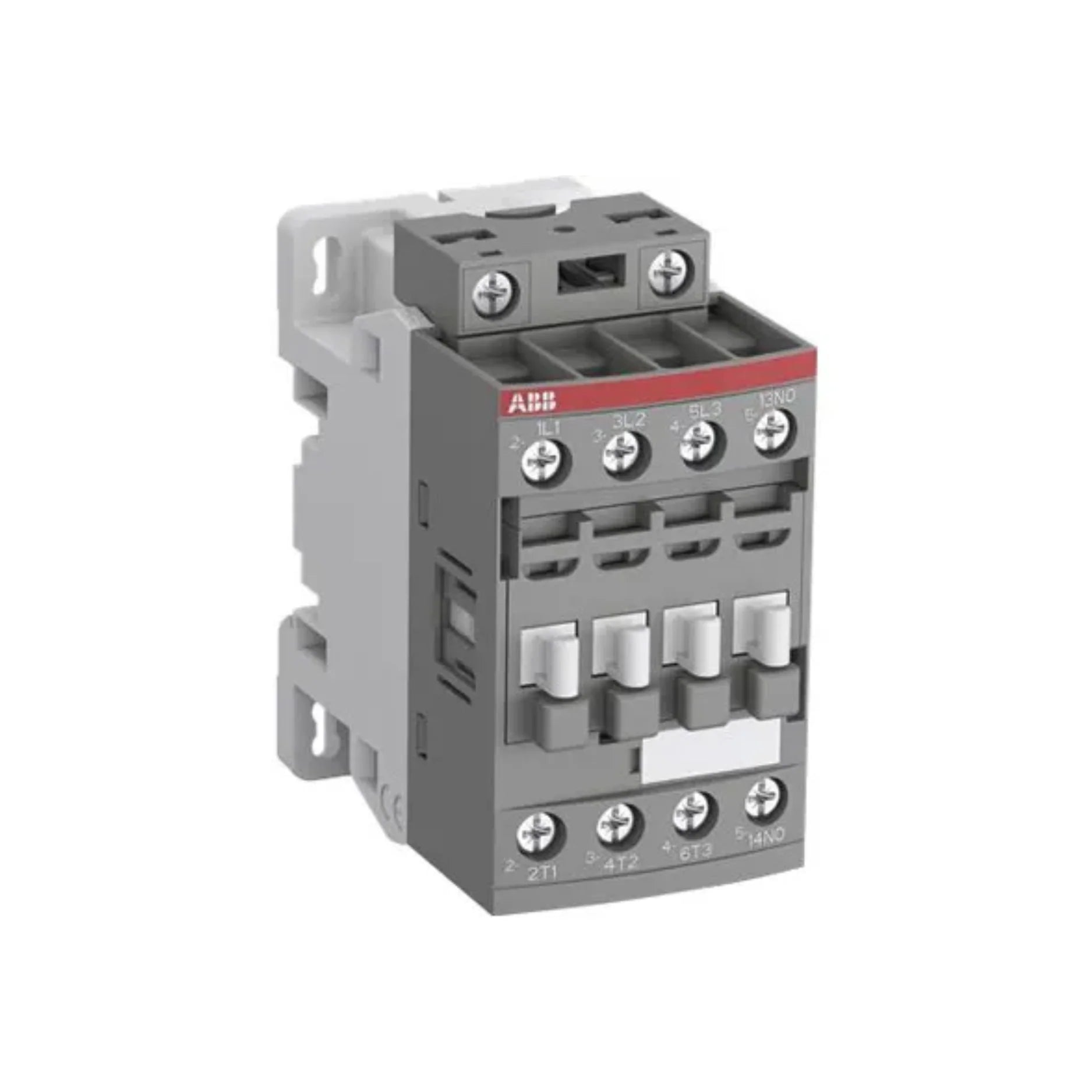

ABB AF12Z-30-10-21

Overview

The ABB AF12Z-30-10-21 is a meticulously engineered motor protection circuit breaker, designed to deliver unparalleled protection and reliability for a diverse range of industrial motors and associated electrical equipment. This high-performance device stands as a critical component in safeguarding machinery from the damaging effects of overloads, short circuits, and under-voltage conditions, thereby extending equipment lifespan and ensuring uninterrupted operational safety. With its robust 30A current rating and a comprehensive suite of protective features, the AF12Z-30-10-21 is the ideal choice for demanding motor control and protection scenarios across various industrial environments, including those with harsh operating conditions.

Key Features

• Current Rating (In): A robust 30A for reliable performance in demanding applications.
• Voltage Rating: Capable of operating efficiently up to 690V AC.
• Comprehensive Protection: Integrated safeguards against overloads, short circuits, and under-voltage conditions.
• Adjustable Tripping Characteristics: Offers flexibility to precisely match motor requirements.
• Optimized for Motor Protection: Specifically designed to meet the unique needs of motor applications.
• Integrated Auxiliary Contacts: Facilitates seamless signaling and remote monitoring for enhanced control.
• Compact Design: Engineered for efficient space utilization within control panels, optimizing panel layout.
• Wide Temperature Range: Reliable operation in environments from -25°C to +60°C.
• DIN Rail Mounting: Ensures easy and quick installation in standard electrical panels.

Technical Specifications

• Model: ABB AF12Z-30-10-21
• Current Rating: 30A
• Voltage Rating: 690V AC
• Short-circuit Protection: Yes, providing critical defense against fault currents.
• Overload Protection: Equipped with an adjustable setting for precise customization.
• Under-voltage Protection: Yes, safeguarding motors from voltage drops.
• Frequency Range: Compatible with both 50/60 Hz industrial frequencies.
• Temperature Range: Operational from -25°C to +60°C.
• Number of Poles: 3
• Auxiliary Contacts: Available for signaling purposes.

Applications

• General Motor Protection: Essential for safeguarding electric motors in a wide array of industrial systems.
• Pumps, Fans, and Compressors: Crucial for ensuring the reliable operation of equipment in HVAC, pumping, and compressor systems.
• Conveyor Belts and Production Lines: Guarantees safe and continuous operation of motors in manufacturing and assembly plants.
• HVAC and Industrial Machines: Ideally suited for various machines and equipment with significant motor loads.

The ABB AF12Z-30-10-21 stands as a robust and dependable solution for comprehensive motor protection. It delivers consistent, reliable performance even in the most challenging industrial environments, all while contributing to enhanced energy efficiency and overall system safety.

Why Choose This Model?

Choosing the ABB AF12Z-30-10-21 means investing in superior motor protection technology. Its combination of a high 30A current rating, broad voltage compatibility, and advanced protection features for overload, short circuit, and under-voltage conditions provides comprehensive safety for your critical industrial equipment. The adjustable tripping characteristics allow for precise calibration, ensuring optimal performance tailored to your specific motor applications. Furthermore, its compact design, easy DIN rail mounting, and integrated auxiliary contacts underscore its user-friendly nature and seamless integration into existing control panels. Built to operate reliably in a wide temperature range, this ABB motor protection circuit breaker is an intelligent choice for industrial facilities prioritizing uptime, safety, and efficiency.

Order Now

Secure the longevity and reliable operation of your industrial motors. Add the ABB AF12Z-30-10-21 Motor Protection Circuit Breaker to your system today. For superior protection and peace of mind, place your order now.
