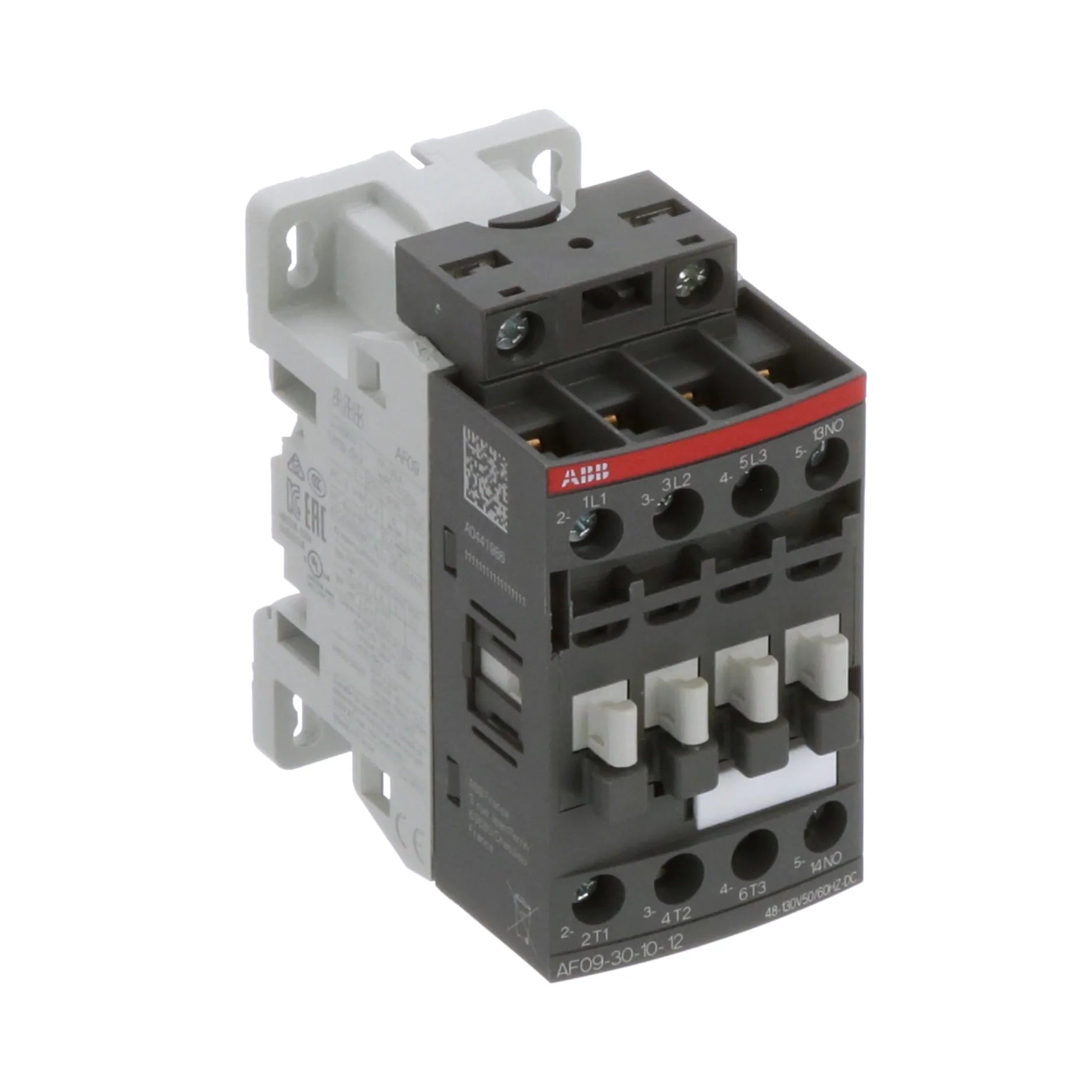

ABB AF09-30-10-12

Overview

The ABB AF09-30-10-12 is a cutting-edge 3-pole contactor engineered to deliver exceptional performance and reliability in diverse motor control and power switching applications. Featuring an advanced electronic coil compatible with both 12V AC and DC power supplies, this contactor offers unparalleled energy efficiency and consistent operation across a wide range of industrial environments. Its robust design and intelligent features make it an ideal choice for ensuring the smooth and safe operation of critical systems, from small motor applications to complex industrial automation setups.

Key Features

• Model: ABB AF09-30-10-12
• Type: 3-pole contactor
• Coil Voltage: Versatile 12V AC/DC electronic coil for broad compatibility and energy savings.
• Rated Operational Current: 9A (AC-3), ensuring reliable handling of motor loads.
• Rated Voltage: Capable of operating at up to 690V AC, suitable for various power systems.
• Auxiliary Contacts: Includes 1 Normally Open (NO) auxiliary contact for enhanced control circuit integration.
• Compact Design: Optimized for space-saving installation, facilitating easy integration into control panels.
• Electronic Coil: Provides a wide voltage operating range, contributing to stable and dependable performance even with voltage fluctuations.
• Built-in Surge Suppression: Enhances durability and reliability by protecting against transient voltage spikes.
• Compliance: Fully compliant with IEC 60947-4-1 standards, ensuring international safety and performance benchmarks are met.

Technical Specifications

• Model Number: ABB AF09-30-10-12
• Number of Poles: 3
• Rated Operational Current (AC-3): 9A
• Rated Voltage: 690V AC
• Coil Voltage: 12V AC/DC
• Auxiliary Contact: 1 NO
• Mounting Type: Flexible mounting options via DIN rail or direct screw mounting.
• Operating Temperature: Engineered to perform reliably in extreme conditions, from -40°C to +70°C.
• Mechanical Durability: Offers exceptional longevity with up to 10 million operations.
• Electrical Durability: Provides impressive electrical endurance with up to 1.5 million operations (AC-3).
• Certifications: CE, UL, CSA, IEC 60947-4-1, affirming global standards for quality and safety.

Applications

• Motor Control: Provides reliable and efficient switching for small motors up to 4 kW (AC-3), crucial for a wide array of machinery.
• Industrial Automation: An integral component for various automation processes, enhancing control and efficiency in manufacturing and production lines.
• Power Distribution: Perfectly suited for integration into control circuits within electrical panels, ensuring safe and effective power management.
• Pumps, Fans, and Compressors: Guarantees efficient operation and robust protection for vital equipment in HVAC, water management, and pneumatic systems.

Why Choose This Model?

The ABB AF09-30-10-12 stands out as a superior choice for professionals seeking a high-performance, energy-efficient, and exceptionally reliable 3-pole contactor. Its advanced electronic coil not only reduces energy consumption but also ensures stable operation across varying supply voltages, a critical advantage in dynamic industrial settings. With built-in surge suppression, this model enhances system durability and minimizes downtime, protecting your investment. Compliant with stringent international standards like IEC 60947-4-1, you can trust in its safety and consistent performance. Its compact design allows for seamless integration into existing and new control panels alike, making it a versatile and intelligent solution for upgrading or building robust industrial systems. Choose the ABB AF09-30-10-12 for a contactor that delivers on its promises of efficiency, longevity, and unwavering performance.

Order Now

Elevate your industrial control systems with the precision and reliability of the ABB AF09-30-10-12 3-pole contactor. Ensure optimal performance and safety for your motor control and power switching applications. Add this essential component to your setup today and experience the difference that ABB quality makes. Explore our full range of ABB Contactors and Contactor Relays or delve deeper into our ABB Industrial Automation Products main category for more innovative solutions.
