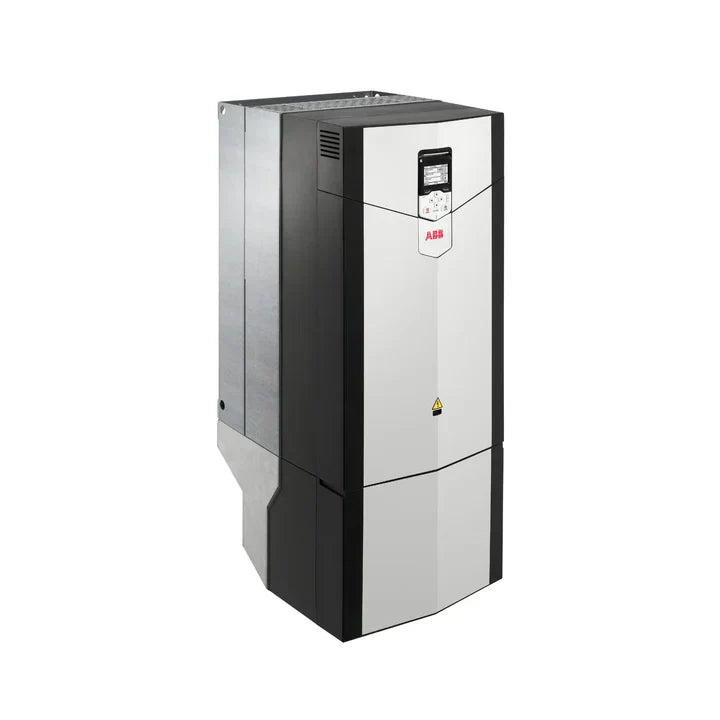

ABB ACS880-01-361A-5 wall-mounted drive, 200 kW, 361 A, 500 V, industrial single drive

ABB ACS880-01-361A-5

$30,742.00
$30,742.00
Skip to product information
ABB ACS880-01-361A-5 wall-mounted drive, 200 kW, 361 A, 500 V, industrial single drive
  • ABB ACS880-01-361A-5 wall-mounted drive, 200 kW, 361 A, 500 V, industrial single drive
  • ABB ACS880-01-361A-5 wall-mounted drive, 200 kW, 361 A, 500 V, industrial single drive
ABB ACS880-01-361A-5

ABB ACS880-01-361A-5

$30,742.00
$30,742.00

Overview

The ABB ACS880-01-361A-5 is a state-of-the-art low-voltage AC industrial single drive, meticulously engineered for unparalleled performance in the most demanding industrial environments. With a substantial rating of 200 kW (300 HP) and 361 A at 500 V, this drive is the ideal solution for heavy-duty applications across a diverse range of sectors, including oil & gas, mining, metals, cement, power generation, pulp & paper, marine, and automotive. Its thoughtfully designed wall-mounting configuration, featuring a compact R9 frame size, ensures a straightforward installation and commissioning process. The ACS880-01 comes equipped with crucial built-in functionalities such as a choke for superior harmonic filtering, and offers extensive expansion capabilities including a brake chopper, EMC filter, advanced functional safety options, I/O extensions, and a variety of communication adapters to meet specific operational requirements.

Key Features

  • Motor Power: 200 kW (300 HP) for robust performance
  • Rated Current: 361 A for high-load applications
  • Input Voltage: 380–500 V, 3-phase compatibility
  • Frequency Range: 47.5–63 Hz
  • Frame Size: Compact R9 for efficient space utilization
  • Protection Class: IP21 (standard), with an IP55 option for enhanced environmental resistance
  • Enclosure: NEMA Type 1
  • Efficiency Level: IE2 for optimized energy consumption
  • Integrated Choke: Built-in for superior harmonic filtering, ensuring cleaner power operation
  • Versatile Communication Protocols: Supports CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, and PROFIsafe
  • Expandable Options: Brake chopper, EMC filter, external output filters, and I/O extensions

Technical Specifications

  • Global Commercial Alias: ACS880-01-361A-5
  • Product ID: 3AUA0000082215
  • EAN: 6438177555124
  • Catalog Description: LV AC industrial wall-mounted single drive
  • HS Code: 850440 – Static converters
  • Output Power: Normal Duty: 200 kW, Heavy Duty: 200 kW
  • Output Current: Normal Duty: 361 A, Heavy Duty: 302 A
  • Apparent Power Output: 313 kVA
  • Power Consumption: 4781 W
  • Standby Loss: 118 W
  • Analog Inputs: 2
  • Analog Outputs: 2
  • Digital I/O: 6 input / 2 output
  • RS-485 Communication: Yes
  • USB Interface: Yes
  • Altitude: Operable up to 4000 m
  • Operating Humidity: 5–95% non-condensing
  • Sound Level: 70 dB(A)
  • Battery: 2 × CR2032 lithium coin cells
  • Net Weight: 95 kg (209.4 lb)
  • Height: 955 mm (37.6 in)
  • Width: 380 mm (15.0 in)
  • Depth: 413 mm (16.3 in)

Applications

The ABB ACS880-01-361A-5 is engineered to excel in a broad spectrum of industrial applications, providing reliable and efficient motor control for critical processes:

  • Process Industries: Oil & gas and chemical plants, mining, metals, and cement industries.
  • Energy Sector: Power generation facilities.
  • Manufacturing: Pulp & paper, water treatment, automotive, and material handling systems.
  • Specialized Machinery: Ideally suited for cranes, conveyors, fans, mixers, pumps, compressors, and test benches.

Why Choose This Model?

The ABB ACS880-01-361A-5 stands out as a superior choice for your industrial drive needs due to its potent combination of performance, flexibility, and robust design:

  • Exceptional Power in a Compact Design: Delivers high power capacity (200 kW) within a space-saving wall-mounted unit, perfect for installations where footprint is a concern.
  • Flexible Deployment: Offers versatile installation options, including the ability to integrate into cabinets, adapting to various operational setups.
  • Extensive Connectivity: Boasts wide compatibility with numerous communication protocols, ensuring seamless integration into existing control systems and networks.
  • Enhanced Power Quality: Features an integrated choke that effectively reduces harmonics, leading to cleaner operation, reduced stress on electrical components, and compliance with power quality standards.
  • Durability for Harsh Environments: Engineered with a rugged design and an optional IP55 protection rating, making it exceptionally resilient in challenging and demanding industrial conditions.
