ABB ACS880-01-271A-7

Overview

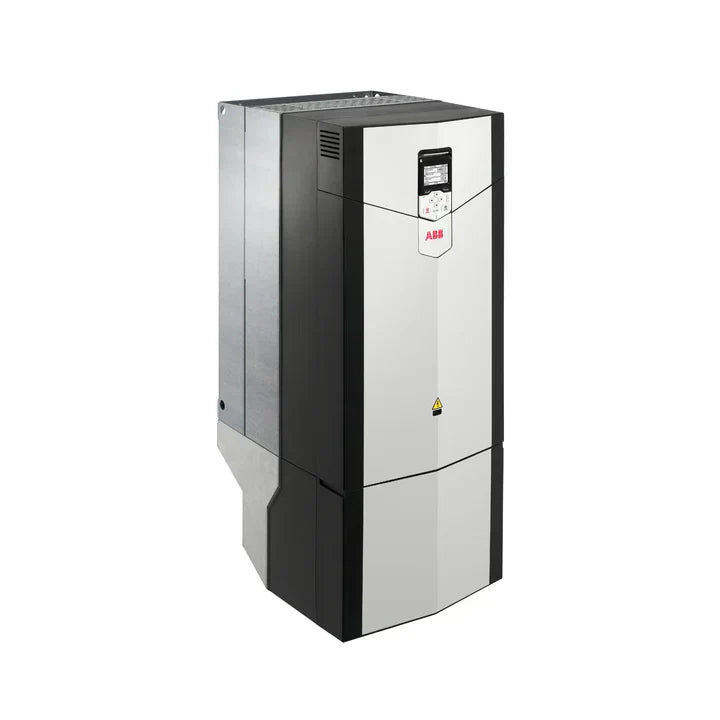

The ABB ACS880-01-271A-7 (Product ID: 3AUA0000115111) is a high-performance, low-voltage AC wall-mounted single drive engineered to meet the rigorous demands of heavy-duty industrial environments. Boasting a substantial power capacity of 250 kW (approximately 250 HP) and a rated current of 271 A at 690 V, this R9 frame drive ensures unparalleled reliability and efficiency for mission-critical systems. Its robust design makes it an ideal solution for power-intensive applications across diverse sectors, including oil & gas, mining, cement production, metals processing, marine operations, pulp & paper manufacturing, and advanced water treatment facilities.

Designed for seamless integration and future-proofing, the ACS880-01-271A-7 features a built-in choke for superior harmonic filtering, enhancing system stability and reducing energy losses. The drive also offers extensive scalability with support for optional expansions such as brake choppers, EMC filters, functional safety modules, and various I/O extensions. This blend of compact wall-mount installation and advanced industrial communication capabilities positions it as a versatile and indispensable component for modern industrial automation.

Key Features

• Motor Power: 250 kW (250 HP)
• Rated Current: 271 A
• Input Voltage: 525–690 V, 3-phase
• Frequency Range: 47.5–63 Hz
• Frame Size: R9
• Protection Class: IP21 (standard), IP55 optional
• Enclosure: NEMA Type 1
• Efficiency Level: IE2
• Harmonic Filtering: Integrated choke for reduced harmonic distortion
• Communication Protocols: Supports a wide array of industrial protocols including CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, and PROFIsafe.
• Expansion Options: Flexible expansion possibilities with optional brake chopper, EMC filter, functional safety modules, and I/O extensions to tailor to specific application needs.

Technical Specifications

• Global Commercial Alias: ACS880-01-271A-7
• Product ID: 3AUA0000115111
• EAN: 6438177388661
• Catalog Description: LV AC industrial wall-mounted single drive
• HS Code: 850440 – Static converters
• Output Power:
  • Normal Duty: 250 kW
  • Heavy Duty: 200 kW
• Output Current:
  • Normal Duty: 271 A
  • Heavy Duty: 210 A
• Apparent Power Output: 324 kVA
• Power Consumption: 4182 W
• Standby Loss: 145 W
• Analog Inputs: 2
• Analog Outputs: 2
• Digital I/O: 6 inputs / 2 outputs
• RS-485 Communication: Yes
• USB Interface: Yes
• Altitude: Up to 4000 m operating capacity
• Operating Humidity: 5–95% non-condensing
• Sound Level: 70 dB(A)
• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 95.0 kg (209.4 lb)
• Height: 955 mm (37.6 in)
• Width: 380 mm (15.0 in)
• Depth: 413 mm (16.3 in)

Applications

The versatility and robust performance of the ABB ACS880-01-271A-7 make it suitable for a wide array of demanding industrial applications, ensuring precise control and energy efficiency across various systems:

• Pumps and Fans: Optimized control for fluid dynamics, HVAC systems, and ventilation.
• Compressors and Conveyors: Reliable operation for material handling and compressed air systems.
• Mixers and Test Benches: Precise speed and torque control for industrial mixing and testing procedures.
• Mining, Cement, and Metals Processing: Enduring performance in harsh environments with heavy machinery.
• Marine and Water Treatment Systems: Essential for critical operations requiring dependable motor control in challenging conditions.

Why Choose This Model?

The ABB ACS880-01-271A-7 stands out as a premier choice for industrial applications due to its comprehensive features and robust design:

• High-Capacity Performance: Delivers a substantial 250 kW power rating, ideal for the most demanding industrial loads.
• Flexible Installation: Adaptable for both wall-mounted and cabinet installations, offering convenience and optimizing space.
• Enhanced Reliability: Features an integrated choke that effectively reduces harmonic distortion, leading to increased system reliability and longer equipment lifespan.
• Scalable and Adaptable: Easily expandable with optional EMC filters, I/O modules, and advanced safety modules to meet evolving operational requirements.
• Extensive Connectivity: Supports a broad spectrum of industrial communication protocols, ensuring seamless integration into existing control systems and networks.

Order Now

The powerful and versatile ABB ACS880-01-271A-7 industrial drive is readily available to enhance your operational efficiency and reliability. We offer worldwide shipping, ensuring that this essential component can reach your facility no matter your global location.
