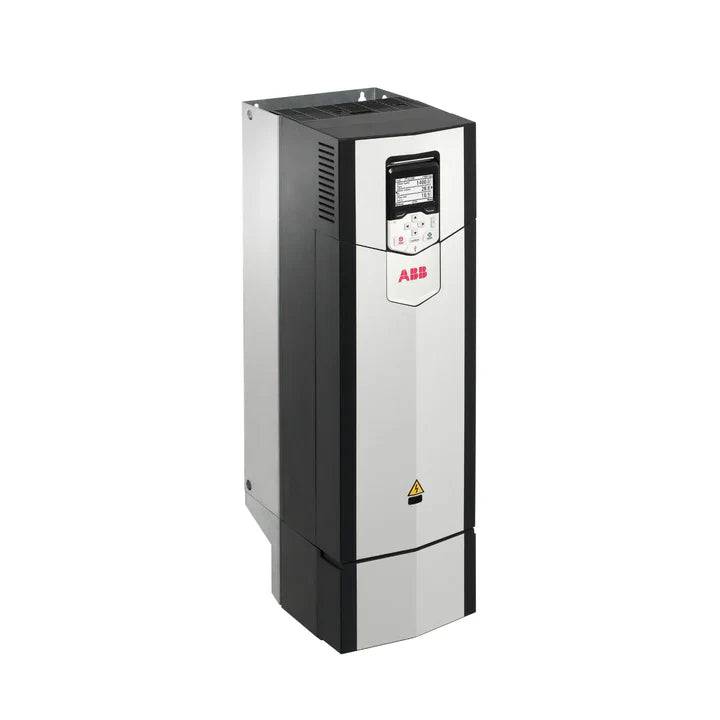

ABB ACS880-01-246A-3

Overview

The ABB ACS880-01-246A-3 is a high-performance, low-voltage wall-mounted industrial AC drive meticulously engineered to deliver superior motor control in the most demanding industrial environments. Designed for 380–415 V, 3-phase systems, this powerhouse drive boasts a robust rated output of 132 kW and 246 A. Built upon the rugged R8 frame size, it guarantees exceptional reliability and efficient operation across a multitude of heavy-duty applications. From the rigorous conditions of oil and gas and colossal mining operations to the intricate processes of metals and cement production, marine systems, water and wastewater treatment, pulp and paper manufacturing, and diverse heavy manufacturing industries, the ACS880-01-246A-3 stands as a beacon of advanced motor control technology.

With an IP21 / NEMA Type 1 protection rating, this drive is adept at handling both normal and heavy-duty operational demands. A critical integrated feature is the built-in choke, which provides essential harmonic filtering. This not only significantly optimizes energy efficiency but also plays a crucial role in reducing electrical disturbances, ensuring smoother and more stable system performance. The ABB ACS880-01-246A-3 is your definitive solution for achieving unparalleled precision and efficiency in industrial motor control.

Key Features

• Powerful Performance: Delivers an impressive 132 kW (Normal Duty) and 110 kW (Heavy Duty) of power.
• High Output Current: Provides 246 A (Normal Duty) and 206 A (Heavy Duty) output current for robust applications.
• Wide Voltage Compatibility: Engineered for 380–415 V AC, 3-phase systems.
• Flexible Frequency Range: Operates efficiently across a frequency range of 47.5–63 Hz.
• Superior Protection: Features IP21 and NEMA Type 1 protection for reliable indoor operation.
• Robust Construction: Housed in a durable R8 frame size, built for industrial resilience.
• High Altitude Operation: Rated for altitudes up to 4000 meters without derating.
• Quiet Operation: Maintains a noise level of 68 dB(A), promoting a better working environment.
• Energy Efficient: Achieves Efficiency Class IE2, contributing to lower energy consumption.
• Integrated Components: Includes control unit and PC connection for ease of setup and monitoring.
• Harmonic Filtering: Built-in choke reduces harmonics, enhancing power quality and energy savings.

Technical Specifications

• Product ID: 3AUA0000108031
• Global Alias: ACS880-01-246A-3
• EAN: 6438177554967
• HS Code: 850440 (Static Converters)
• Weight: 68.0 kg (149.91 lb)
• Dimensions (W × H × D): 300 × 965 × 386 mm
• Packaging Dimensions: 1145 × 485 × 654 mm (1 case)
• Input/Output (I/O): 2 analog in, 2 analog out, 6 digital in, 2 digital out
• Communication Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe
• Output Power (Nominal): 132 kW (Normal Duty), 110 kW (Heavy Duty)
• Apparent Power Output: 170 kVA
• Power Consumption: 3026 W
• Standby Losses: 52 W

Applications

The versatility and power of the ABB ACS880-01-246A-3 make it an ideal choice for a vast array of challenging industrial applications, ensuring optimized performance and energy efficiency:

• Fluid Management: Perfect for controlling pumps, compressors, and fans in large-scale industrial plants, ensuring precise flow and pressure regulation.
• Material Handling: Excellently suited for heavy conveyors, mixers, and centrifuges, providing reliable and powerful motion control.
• Marine Industry: Integral for marine propulsion and auxiliary systems, offering robust control in demanding maritime environments.
• Lifting Equipment: Powers cranes, hoists, and elevators with smooth and accurate positioning capabilities.
• Process Automation: Essential for process automation within the mining, metals, and cement industries, where precision and durability are paramount.

Why Choose This Model?

The ABB ACS880-01-246A-3 stands out as a leading choice for industrial motor control due to its exceptional features and proven reliability:

• High-Capacity Control: Offers a substantial 132 kW motor control capacity, making it perfect for even the most demanding large-scale industrial installations.
• Rugged Durability: Its robust R8 frame is specifically engineered for reliable operation in harsh and tough industrial environments, guaranteeing longevity and consistent performance.
• Advanced Energy Efficiency: The integrated built-in choke provides superior harmonic reduction, leading to enhanced power quality, significant energy savings, and reduced operational costs.
• Extensive Compatibility: Designed for wide compatibility with various industrial fieldbus protocols, ensuring seamless integration into existing control systems and networks.
• Trusted ABB Quality: Benefit from the renowned performance and reliability that only ABB can deliver, a brand synonymous with innovation and industrial excellence. This drive is engineered for global deployment, meeting international standards and application requirements.

Order Now

Elevate your industrial operations with the unmatched precision and power of the ABB ACS880-01-246A-3 industrial AC drive. Offering robust performance, advanced energy efficiency, and seamless integration, this drive is engineered to meet the most rigorous demands of your applications. Experience optimized motor control and enhanced productivity across your facility.
