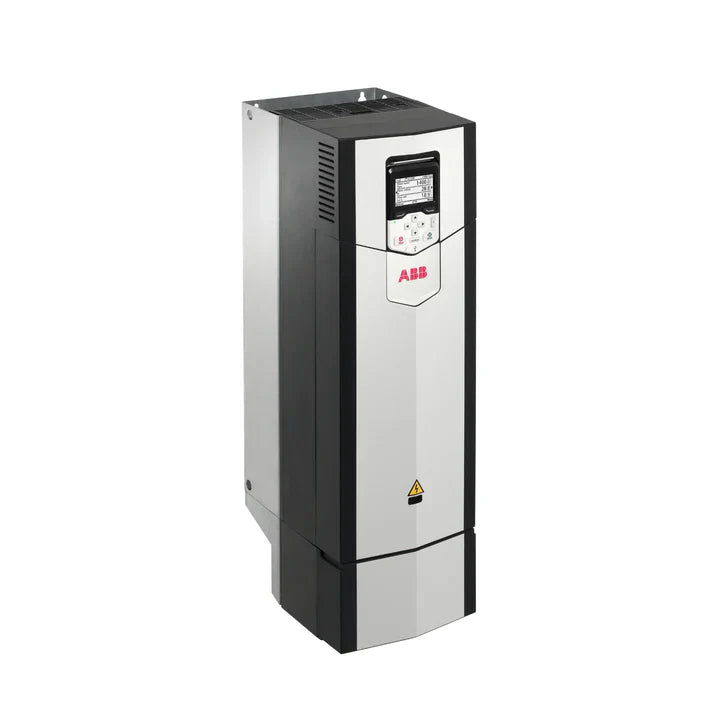

ABB ACS880-01-240A-5

Overview

The ABB ACS880-01-240A-5 (Product ID: 3AUA0000090445) is a high-performance, low-voltage AC industrial wall-mounted single drive engineered to excel in the most demanding applications. Delivering a robust 132 kW (200 HP) of power and 240 A at 500 V, this R8 frame drive ensures unparalleled precision in motor control, exceptional energy efficiency, and unwavering reliability across diverse industrial sectors. From the rigorous environments of oil & gas and mining to the critical operations in power generation and marine, the ACS880-01-240A-5 is built to perform.

As a distinguished member of the versatile ACS880-01 family, this model offers seamless wall installation, with an optional cabinet mount for enhanced flexibility in deployment. Its compact yet incredibly robust design boasts IP21 protection as standard, with an IP55 option available for environments requiring superior ingress protection. Advanced built-in features, such as an integrated choke for harmonic filtering, significantly reduce the need for external components, streamlining installation and reducing overall system complexity.

Key Features

• Motor Power: 132 kW (200 HP)
• Rated Current: 240 A
• Input Voltage: 380–500 V, 3-phase
• Frequency Range: 47.5–63 Hz
• Frame Size: R8
• Enclosure: IP21 (NEMA Type 1) standard, IP55 optional
• Efficiency Level: IE2
• Harmonic Filtering: Standard built-in choke
• Optional Features: Brake chopper, EMC filter, functional safety, I/O extensions
• Communication Protocols: Extensive support for CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe

Technical Specifications

• Global Commercial Alias: ACS880-01-240A-5
• Product ID: 3AUA0000090445
• EAN: 6438177554943
• Catalog Description: LV AC industrial wall-mounted single drive
• HS Code: 850440 – Static converters
• Output Power: Normal Duty: 132 kW; Heavy Duty: 110 kW
• Output Current: Normal Duty: 240 A; Heavy Duty: 180 A
• Apparent Power Output: 208 kVA
• Power Consumption: 2912 W
• Standby Loss: 70 W
• Analog Inputs: 2
• Analog Outputs: 2
• Digital I/O: 6 inputs / 2 outputs
• RS-485 Communication: Yes
• USB Interface: Yes
• Altitude: Up to 4000 m
• Operating Humidity: 5–95%
• Sound Level: 68 dB(A)
• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 68 kg (149.9 lb)
• Height: 965 mm (38.0 in)
• Width: 300 mm (11.8 in)
• Depth: 386 mm (15.2 in)
• Packaging Dimensions: 1145 × 654 × 485 mm

Applications

The ABB ACS880-01-240A-5 is a versatile solution, ideally suited for a broad spectrum of industrial applications, including:

• Oil & gas and chemical industries
• Mining, metals, and cement plants
• Power generation and critical marine operations
• Water and wastewater treatment facilities
• Automotive manufacturing and pulp & paper industries
• Control of cranes, winches, conveyors, mixers, pumps, fans, and compressors

Why Choose This Model?

Opting for the ABB ACS880-01-240A-5 means investing in superior control and efficiency for your industrial processes. This model stands out due to several compelling advantages:

• High-Performance: Designed for demanding, heavy-duty applications, ensuring optimal performance and reliability.
• Flexible Installation: Offers convenient wall-mounted or optional cabinet-mounted installation, adapting to your specific spatial requirements.
• Reduced Harmonic Distortion: The integrated choke minimizes harmonic distortion, enhancing system stability and power quality.
• Extensive Communication: Wide compatibility with numerous communication protocols guarantees seamless integration into existing and new industrial automation systems.
• Reliable Operation: Standard IP21 protection, with an optional IP55 rating, ensures robust and reliable operation even in harsh environmental conditions.
