ABB ACS880-01-156A-5

Overview

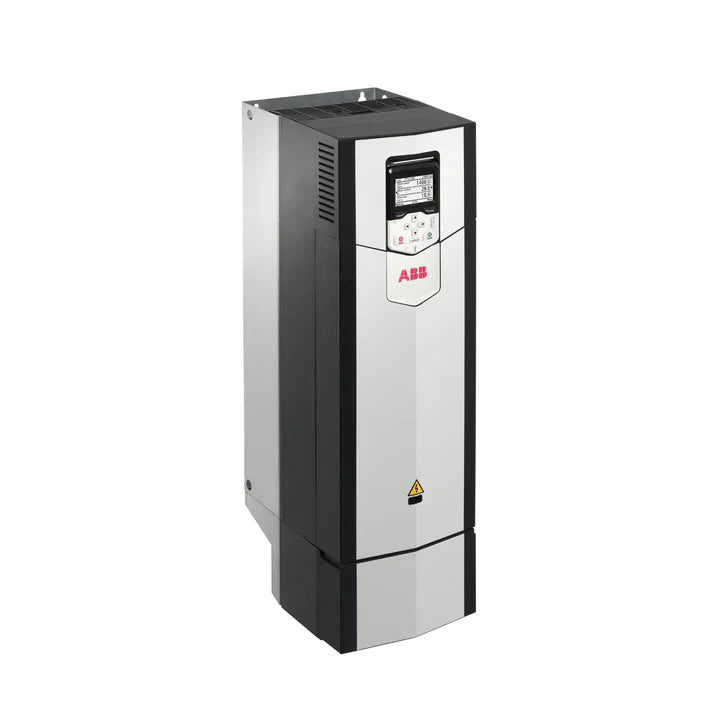

The ABB ACS880-01-156A-5 (3AUA0000090443) is a high-performance, low-voltage AC industrial single drive meticulously engineered to deliver precise motor control and unwavering reliability in the most demanding high-power applications. Rated at an impressive 90 kW (125 HP) and 156 A at 500 V, this drive is a cornerstone for optimizing industrial processes across a diverse spectrum of sectors. From the rigorous environments of oil & gas and mining to the critical operations of power plants, marine, and water treatment, the ACS880-01-156A-5 ensures peak operational efficiency. Its wall-mounted design offers a compact and space-saving solution, with options for seamless integration into existing cabinet installations. Standard features include a built-in choke for superior harmonic filtering, while optional enhancements such as a brake chopper, EMC filter, comprehensive safety functions, and versatile I/O expansions provide unparalleled customization to meet specific operational requirements.

Key Features

• Motor Power: 90 kW (125 HP)
• Rated Current: 156 A
• Input Voltage: 380–500 V, 3-phase
• Frequency Range: 47.5–63 Hz
• Protection Class: IP21 (standard), IP55 (optional) for enhanced environmental resilience
• Enclosure Type: NEMA 1
• Harmonic Filtering: Integrated choke for reduced harmonic distortion and improved system efficiency
• Communication Protocols: Supports a wide array of industrial communication, including CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, and PROFIsafe, ensuring seamless integration
• Customization Options: Available with brake chopper, EMC filter, I/O extensions, and functional safety features for tailored solutions

Technical Specifications

• Global Commercial Alias: ACS880-01-156A-5
• Product ID: 3AUA0000090443
• EAN: 6438177554745
• Frame Size: R7
• Output Power: Normal Duty: 90 kW; Heavy Duty: 75 kW
• Output Current: Normal Duty: 156 A; Heavy Duty: 124 A
• Apparent Power Output: 135 kVA
• Power Consumption: 1840 W
• Efficiency: Optimized for high efficiency, minimizing energy waste
• Analog Inputs: 2
• Analog Outputs: 2
• Digital I/O: 6 inputs / 2 outputs
• RS-485 Communication: Yes
• USB Interface: Yes, for convenient configuration and diagnostics
• Altitude: Operable up to 4000 m
• Operating Humidity: 5–95% non-condensing
• Sound Level: 67 dB(A)
• Battery: 2 × CR2032 lithium coin cells

Dimensions & Weight

• Net Weight: 53 kg (116.8 lb)
• Height: 880 mm (34.6 in)
• Width: 284 mm (11.2 in)
• Depth: 365 mm (14.4 in)

Applications

The versatility and robust design of the ABB ACS880-01-156A-5 make it an ideal solution for a vast array of industrial applications, including but not limited to:

• Heavy Industry: Oil & gas, chemical processing, mining, metals, and cement operations
• Energy Sector: Power generation and distribution within power plants
• Marine Industry: Critical control systems for marine environments
• Environmental Management: Water and wastewater treatment plants
• Manufacturing: Automotive and pulp & paper industries
• Material Handling: Cranes, elevators, conveyors, mixers, pumps, and fans, ensuring smooth and controlled operation.

Why Choose This Model?

Opting for the ABB ACS880-01-156A-5 means investing in unparalleled performance, reliability, and adaptability. This model stands out due to several compelling advantages:

• High Power Density: Achieves significant power output within a remarkably compact, wall-mounted design, saving valuable floor space.
• Flexible Installation: Offers versatile installation options, whether demanding a wall-mounted setup or seamless integration into a cabinet.
• Enhanced System Health: The standard built-in choke actively reduces harmonics, minimizing the need for additional external components and simplifying electrical system design.
• Seamless Integration: Boasts a wide selection of industrial communication protocols, ensuring effortless integration into virtually any existing control system.
• Built for Endurance: Designed to thrive in the most stringent industrial environments, with an optional IP55 protection class for superior defense against dust and water ingress.
• Precision Control: Delivers superior motor control, enhancing process accuracy and operational efficiency.

Order Now

Elevate your industrial operations with the robust and reliable ABB ACS880-01-156A-5 industrial drive. This high-performance unit (3AUA0000090443) is readily available and ready to ship worldwide, ensuring your projects stay on schedule. Experience the benefits of advanced motor control and superior operational efficiency. For further information and to explore related products, we invite you to return to the ABB ACS880 Industrial Drives collection or browse our comprehensive ABB Industrial Drives main category.
