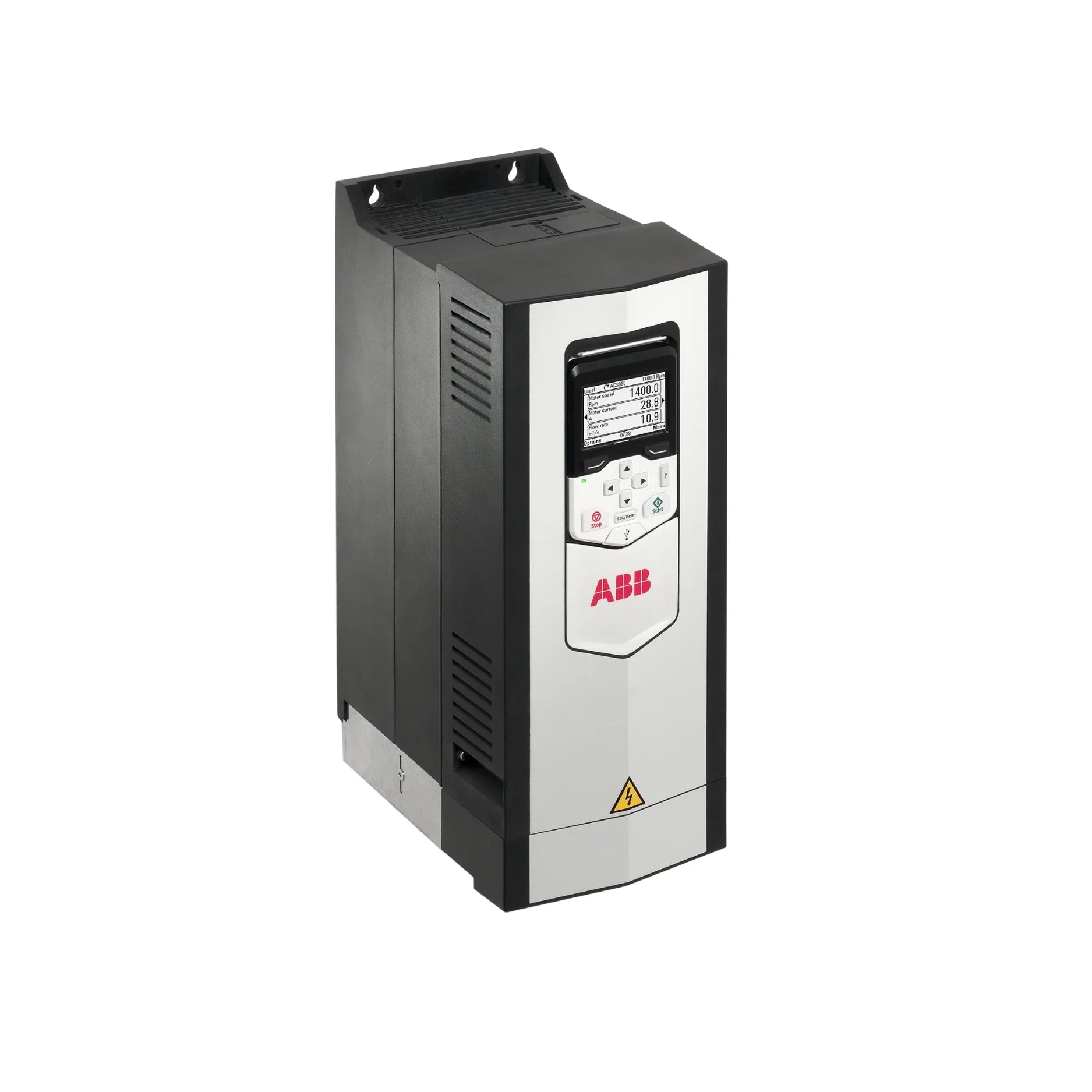

ABB ACS880-01-12A6-3

Overview

The ABB ACS880-01-12A6-3 is a high-performance, low-voltage industrial AC drive engineered to meet the demanding requirements of modern industrial processes. Designed for 380–415 V, 3-phase input, this robust unit boasts a rated power of 5.5 kW and an output current of 12.9 A. As a key component of the esteemed ACS880-01 series, it offers unparalleled universal motor control capabilities, making it an ideal solution across a vast spectrum of industries, including oil and gas, mining, metals, cement, chemicals, marine, water and wastewater, food and beverage, automotive, and material handling.

This compact, wall-mounted drive is not only easy to install but also features integrated harmonic filtering, ensuring cleaner power and enhanced system longevity. With enclosure options extending up to IP55, the ACS880-01-12A6-3 guarantees long-term reliability, exceptional operational efficiency, and significantly reduced commissioning times, even in the most challenging industrial environments.

Key Features

• Power Output: 5.5 kW (Normal Duty) / 4.0 kW (Heavy Duty)
• Output Current: 12.9 A (Normal Duty) / 10.0 A (Heavy Duty)
• Input Voltage: 380–415 V AC, 3-phase
• Frequency Range: 47.5–63 Hz
• Protection Rating: IP21, NEMA Type 1
• Low Noise Operation: 50 dB(A)
• Altitude Rating: Up to 4000 m
• Compact Design: Frame Size R1
• Included Components: Control unit and PC connection for easy setup and monitoring

Technical Specifications

• Product ID: 3AUA0000107990
• Global Alias: ACS880-01-12A6-3
• EAN: 6438177558637
• HS Code: 850440 (Static Converters)
• Weight: 7.0 kg (15.43 lb)
• Dimensions (H×W×D): 409 × 155 × 226 mm
• Packaging Dimensions (H×W×D): 574 × 256 × 281 mm (1 carton)
• I/O Configuration: 2 analog in, 2 analog out, 6 digital in, 2 digital out
• Communication Interfaces: RS-485, USB, CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIBUS, PROFINET IO, PROFIsafe
• Apparent Power Output: 8.9 kVA
• Power Consumption: 217 W
• Standby Losses: 23 W
• Efficiency Class: IE2

Applications

The versatility of the ABB ACS880-01-12A6-3 makes it an indispensable component across a wide range of industrial applications, including but not limited to:

• Pumps, fans, and compressors for fluid management and ventilation
• Cranes, conveyors, and elevators for material handling and logistics
• Mixers, centrifuges, and test benches in process industries
• Robotics and advanced automation systems for precision control
• Marine, water, and wastewater processing for environmental control and resource management

Why Choose This Model?

The ABB ACS880-01-12A6-3 stands out as a superior choice for several compelling reasons:

• Flexible Installation: Its compact, wall-mounted design allows for easy integration into diverse spatial configurations.
• Broad Connectivity: Supports multiple industrial communication protocols, ensuring seamless integration with existing control systems.
• Enhanced Power Quality: The built-in choke for harmonic filtering guarantees cleaner power, protecting equipment and extending its lifespan.
• Unwavering Reliability: Backed by robust ABB engineering, this drive is built for continuous, reliable operation in demanding environments.
• Global Availability: Benefit from reliable worldwide shipping and comprehensive support, ensuring your operations remain uninterrupted.
• Optimized Performance: Delivers exceptional efficiency (IE2 class), reducing energy consumption and operational costs.

Order Now

Elevate your industrial operations with the ABB ACS880-01-12A6-3 industrial AC drive. This high-quality, reliable, and efficient solution is readily available and ships worldwide, ready to enhance the performance and longevity of your machinery. Do not miss the opportunity to invest in a product that combines cutting-edge technology with ABB's renowned engineering excellence.

Return to the ABB ACS880 Industrial Drives collection or explore our main ABB Industrial Drives category to discover more innovative solutions.
