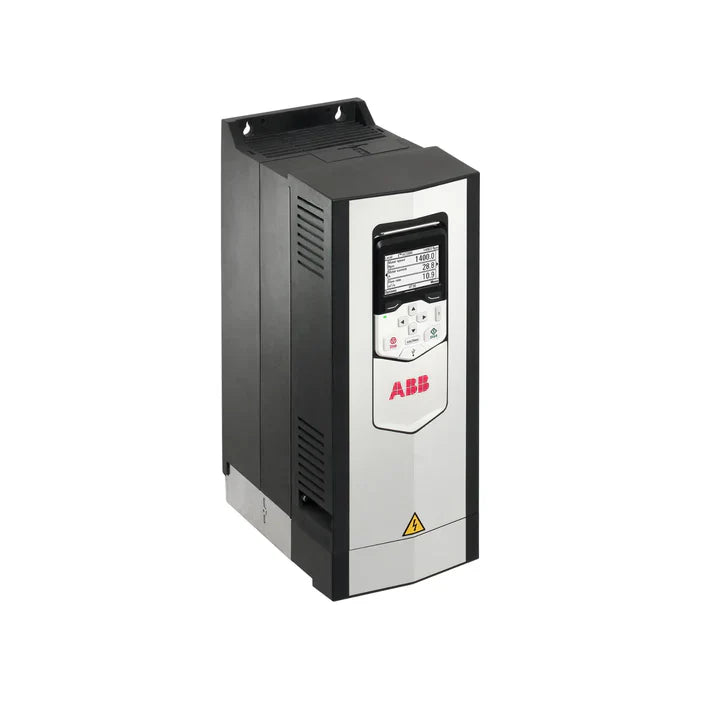

ABB ACS880-01-11A0-5

Overview

The ABB ACS880-01-11A0-5 is a high-performance, wall-mounted industrial AC drive engineered for precise motor control in a wide range of demanding industrial environments. As a key component of the renowned ACS880 series, this drive boasts a robust design, exceptional reliability, and advanced features for optimal operational efficiency. Rated at 5.5 kW (7.5 HP) with a 3-phase 380–500 V input and an 11 A output current, it is ideally suited for applications requiring consistent and dependable performance. Its IP21 protection, integrated harmonic filtering, and extensive communication protocol support ensure seamless integration and robust operation within complex industrial automation systems, minimizing downtime and maximizing productivity.

Key Features

• Motor Power: 5.5 kW (7.5 HP)
• Input Voltage: 3-phase 380–500 V AC
• Rated Current: 11.0 A
• Enclosure: IP21 wall-mounted, NEMA Type 1 for protection against dust and dripping water
• Cooling: Efficient internal air cooling with a dedicated blower
• Frequency Range: 47.5–63 Hz, ensuring broad compatibility
• Built-in Harmonic Filtering: Features an integrated choke to reduce harmonic distortions and ensure clean power
• Extensive Fieldbus Support: Compatible with Modbus, PROFIBUS, PROFINET IO, EtherNet/IP, CAN, DeviceNet, and PROFIsafe for versatile communication
• Compact Design: R1 frame size facilitates easy installation in space-constrained applications

Technical Specifications

• Part Number: ACS880-01-11A0-5
• Product ID: 3AUA0000090433
• EAN: 6438177558583
• Output Power: Normal/Light duty: 5.5 kW; Heavy duty: 4.0 kW
• Output Current: Normal: 11.0 A; Light overload: 10.4 A; Heavy overload: 7.6 A
• Apparent Power: 9.5 kVA
• Efficiency: IE2 level, promoting energy savings
• Power Consumption: 180 W
• Standby Power Loss: 24 W
• Dimensions (HxWxD): 409 × 155 × 226 mm
• Weight: 7.0 kg (15.4 lb)
• Noise Level: 50 dB(A)
• Operating Humidity: 5–95 % RH (non-condensing)
• Altitude: Operates effectively up to 4000 m without derating

Applications

The ABB ACS880-01-11A0-5 drive's versatility and robust performance make it an ideal choice for a wide array of industrial applications, including:

• Flow Control: Pumps, fans, and compressors in HVAC, water treatment, and industrial processes
• Material Handling: Conveyors, escalators, and other material transportation systems
• Process Control: Mixers, extruders, and centrifuges in food and beverage, chemical, and pharmaceutical industries
• Testing and Simulation: High-precision test benches and other specialized equipment
• Heavy Industry: Cranes, hoists, and other heavy industrial machinery requiring resilient motor control

Why Choose This Model?

The ABB ACS880-01-11A0-5 stands out as a superior choice for various industrial applications due to several key advantages:

• Unwavering Reliability: A robust 5.5 kW industrial AC drive built for continuous operation in challenging environments.
• Seamless Integration: Features flexible communication options, including multiple fieldbus protocols, for easy networking within existing automation systems.
• Space-Saving Design: Its compact, wall-mount form factor (R1 frame size) optimizes installation in tight spaces without compromising performance.
• Enhanced Power Quality: Built-in EMC compliance and advanced harmonic filtering minimize electrical disturbances, protecting sensitive equipment and improving system efficiency.
• Global Support: Backed by ABB's extensive global service and support network, ensuring peace of mind and readily available assistance whenever needed.

Order Now

Enhance your industrial operations with the exceptional performance and reliability of the ABB ACS880-01-11A0-5 industrial AC drive. This model is readily available and can be shipped worldwide to meet your project deadlines. For more information or to explore related products, please refer to our ABB ACS880 Industrial Drives collection or our main ABB Industrial Drives category.
