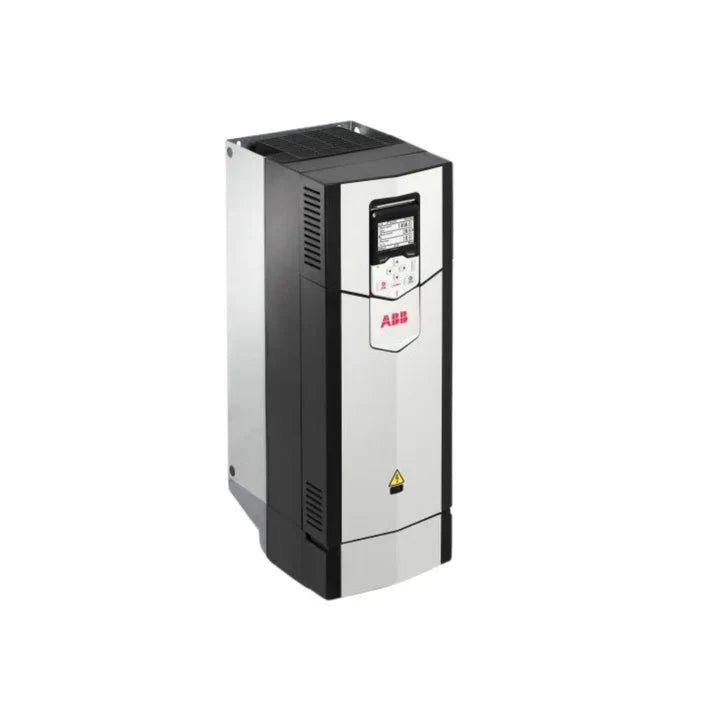

ABB ACS880-01-07A4-7 wall-mounted drive, 5.5 kW, 7.4 A, 690 V, industrial single drive

ABB ACS880-01-07A4-7

$6,385.00
$6,385.00
Skip to product information
ABB ACS880-01-07A4-7 wall-mounted drive, 5.5 kW, 7.4 A, 690 V, industrial single drive
  • ABB ACS880-01-07A4-7 wall-mounted drive, 5.5 kW, 7.4 A, 690 V, industrial single drive
  • ABB ACS880-01-07A4-7 wall-mounted drive, 5.5 kW, 7.4 A, 690 V, industrial single drive
ABB ACS880-01-07A4-7

ABB ACS880-01-07A4-7

$6,385.00
$6,385.00

Overview

Experience unparalleled motor control and efficiency with the ABB ACS880-01-07A4-7, a robust low-voltage AC industrial single drive engineered for high-performance applications. Designed to operate seamlessly at elevated input voltages, this drive provides a powerful and reliable solution for a multitude of industrial processes. Rated at an impressive 5.5 kW (5 HP) and 7.4 A at 690 V, the ACS880-01-07A4-7 comes in a compact R3 frame, making it a versatile choice for industries spanning mining, oil & gas, chemicals, cement, pulp & paper, water treatment, and automotive. Its standard wall-mount installation ensures ease of deployment, with optional cabinet mounting for greater flexibility. The unit boasts built-in harmonic filtering via an integrated choke, promoting cleaner power and extended equipment life. Further expandability is offered through options such as a brake chopper, EMC filter, various I/O modules, and a wide array of communication adapters, allowing for seamless integration into existing systems and future-proofing your operations.

Key Features

  • Motor Power: 5.5 kW (5 HP)
  • Rated Current: 7.4 A
  • Input Voltage: 525–690 V, 3-phase
  • Frequency Range: 47.5–63 Hz
  • Frame Size: R3
  • Protection Class: IP21 (standard), IP55 optional
  • Enclosure: NEMA Type 1
  • Efficiency Level: IE2
  • Built-in Choke: For effective harmonic filtering
  • Communication Protocols: Supports a broad range including CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, and PROFIsafe
  • Options: Comprehensive options including brake chopper, EMC filter, I/O expansion, and advanced safety functionalities

Technical Specifications

  • Global Commercial Alias: ACS880-01-07A4-7
  • Product ID: 3AXD50000046384
  • EAN: 6438177522683
  • Catalog Description: LV AC industrial wall-mounted single drive
  • HS Code: 850440 – Static converters
  • Output Power: Normal Duty: 5.5 kW; Heavy Duty: 4 kW
  • Output Current: Normal Duty: 7.4 A; Heavy Duty: 5.6 A
  • Apparent Power Output: 8.8 kVA
  • Power Consumption: 101 W
  • Standby Loss: 25 W
  • Analog Inputs: 2
  • Analog Outputs: 2
  • Digital I/O: 6 inputs / 2 outputs
  • RS-485 Communication: Yes
  • USB Interface: Yes
  • Altitude: Up to 4000 m
  • Operating Humidity: 5–95%
  • Sound Level: 60 dB(A)
  • Battery: 2 × CR2032 lithium coin cells
  • Net Weight: 10.8 kg (23.8 lb)
  • Height: 475 mm (18.7 in)
  • Width: 173 mm (6.8 in)
  • Depth: 261 mm (10.3 in)

Applications

The versatility and robust design of the ABB ACS880-01-07A4-7 make it an ideal solution for a wide range of demanding industrial applications, ensuring precise control and optimal performance.

  • Pumps and Fans: Optimized for efficient operation in fluid management and ventilation systems.
  • Conveyors and Mixers: Provides reliable and consistent speed control for material handling and processing equipment.
  • Compressors and Test Benches: Delivers precise power and control for critical compression and testing environments.
  • Light-duty Industrial Machinery: Enhances the performance and longevity of various production and manufacturing tools.
  • Marine, Automotive, and Water Treatment Systems: Robust and adaptable for specialized control needs in these diverse sectors.

Why Choose This Model?

The ABB ACS880-01-07A4-7 stands out as a leading choice for industrial motor control, offering a compelling blend of advanced features and practical benefits.

  • Compact and Lightweight Design: Its wall-mounted form factor conserves valuable space and simplifies installation.
  • High Voltage Capability: Engineered to meet the demands of higher input voltage applications, ensuring broad compatibility and robust performance.
  • Built-in Choke: Effectively reduces harmonic distortion, leading to improved power quality, enhanced system efficiency, and extended lifespan of connected equipment.
  • Scalable with Extensive Options: Offers seamless integration of safety, EMC (Electromagnetic Compatibility), and I/O options, allowing for tailored configurations to meet specific operational requirements.
  • Wide Communication Protocol Support: With compatibility across numerous industry-standard protocols, integration into existing automation networks is straightforward and efficient.

Order Now

Elevate your industrial processes with the cutting-edge performance of the ABB ACS880-01-07A4-7 industrial drive. This high-performance unit is readily available and poised for worldwide shipment, ensuring you can enhance your operations regardless of your location. Don't miss the opportunity to invest in a solution that offers superior motor control, energy efficiency, and unparalleled reliability. Explore the full range of ABB ACS880 Industrial Drives within our collection or visit our comprehensive ABB Industrial Drives main category for more innovative solutions. Contact us today to secure your ABB ACS880-01-07A4-7 and take the first step towards optimized industrial efficiency and control.
