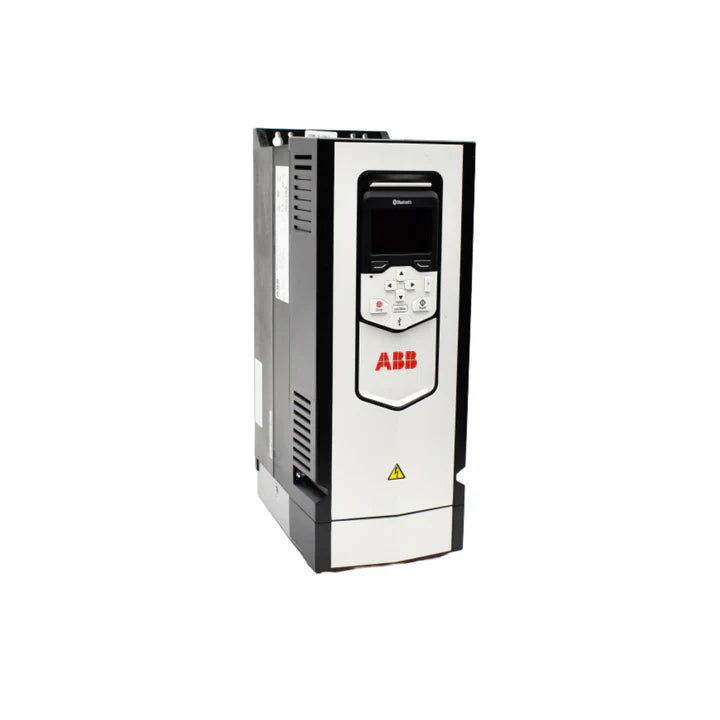

ABB ACS880-01-04A6-2

Overview

The ABB ACS880-01-04A6-2 (Product ID: 3AUA0000123720) is a high-performance, compact low-voltage AC wall-mounted single drive meticulously engineered for a wide array of small-scale industrial and commercial applications. Delivering a robust 0.75 kW (1 HP) power rating and operating at 4.6 A with a 230 V input, this R1 frame drive masterfully blends efficiency, unwavering reliability, and cutting-edge functionality. Its intelligently designed compact form factor facilitates effortless wall or cabinet installation, making it an ideal choice for environments where space is at a premium. Each unit comes standard with a sophisticated built-in choke, crucial for effective harmonic filtering, ensuring stable and clean power delivery. Furthermore, the ACS880-01-04A6-2 offers a suite of optional features, including advanced EMC filters, a brake chopper, versatile I/O extension modules, and comprehensive functional safety capabilities, allowing for unparalleled adaptability to diverse operational demands and stringent industry standards.

Key Features

• Motor Power: 0.75 kW (1 HP)
• Rated Current: 4.6 A
• Input Voltage: 208–240 V, 3-phase
• Frequency Range: 47.5–63 Hz
• Frame Size: R1 (Compact Design)
• Protection Class: IP21 (standard), IP55 optional for enhanced protection
• Enclosure: NEMA Type 1
• Efficiency Level: IE2 for optimized energy consumption
• Low Noise Operation: Quiet performance at just 50 dB(A)
• Communication Protocols: Extensive support for CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe
• Options: Integrated brake chopper, advanced EMC filter, functional safety modules, I/O extensions for enhanced versatility

Technical Specifications

• Global Commercial Alias: ACS880-01-04A6-2
• Product ID: 3AUA0000123720
• EAN: 6438177388067
• Catalog Description: LV AC industrial wall-mounted single drive
• HS Code: 850440 – Static converters
• Output Power: Normal Duty: 0.75 kW; Heavy Duty: 0.55 kW
• Output Current: Normal Duty: 4.6 A; Heavy Duty: 3.7 A
• Apparent Power Output: 1.8 kVA
• Power Consumption: 61 W
• Standby Loss: 22 W
• Analog Inputs: 2
• Analog Outputs: 2
• Digital I/O: 6 / 2
• RS-485 Communication: Yes
• USB Interface: Yes
• Altitude: Up to 4000 m
• Operating Humidity: 5–95%
• Sound Level: 50 dB(A)
• Battery: 2 × CR2032 lithium coin cells
• Net Weight: 7.0 kg (15.4 lb)
• Height: 409 mm (16.1 in)
• Width: 155 mm (6.1 in)
• Depth: 226 mm (8.9 in)

Applications

The versatility and robust performance of the ABB ACS880-01-04A6-2 make it an ideal solution for a diverse range of applications, including but not limited to:

• Small-scale pumps and efficient fan control systems
• Precision-driven light conveyors and mixers
• Sensitive laboratory and test equipment requiring accurate motor control
• Optimized HVAC systems and compact industrial machinery

Why Choose This Model?

The ABB ACS880-01-04A6-2 stands out as a superior choice for your industrial and commercial needs due to several compelling advantages:

• Space-Saving Design: Its compact R1 frame is specifically designed for seamless integration into space-constrained environments, ensuring minimal footprint without compromising performance.
• Flexible Installation: Enjoy unmatched flexibility with options for both straightforward wall-mounted or cabinet installations, adapting to your specific setup requirements.
• Superior Harmonic Reduction: The integrated built-in choke actively reduces harmonics, leading to more stable and reliable operation of your equipment and extending its lifespan.
• Enhanced Expandability: Future-proof your operations with easy expandability through optional EMC filters, I/O extension modules, and advanced functional safety features.
• Broad Connectivity: Benefit from wide compatibility with a multitude of industrial communication protocols, ensuring effortless integration into existing control systems.

Order Now

Elevate the performance and efficiency of your operations with the ABB ACS880-01-04A6-2 wall-mounted drive. This imperative component for modern industrial applications is readily available and ships worldwide, ensuring you can enhance your systems regardless of your location. Return to the ABB ACS880 Industrial Drives collection to explore complementary products, or delve deeper into our comprehensive ABB Industrial Drives main category for a full spectrum of high-quality solutions.
