ABB ACS580-01-293A-4 | 3ABD00045441-D

Overview

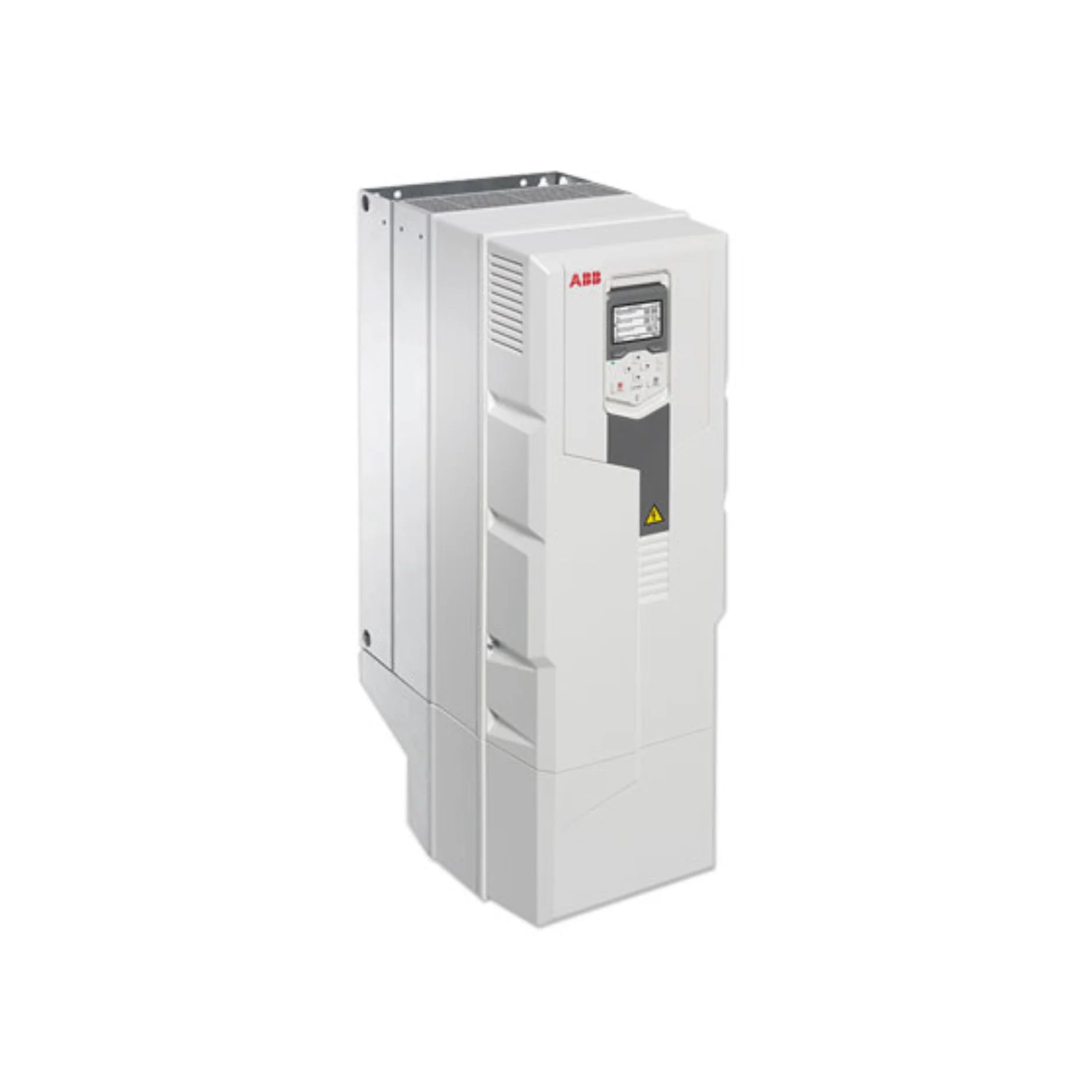

The ABB ACS580-01-293A-4 is a state-of-the-art 150 kW (200 HP) wall-mounted variable frequency drive meticulously engineered to deliver unparalleled energy efficiency and precise motor control across diverse industrial landscapes. This robust VFD operates seamlessly with a 380–480 V 3-phase input and provides a powerful 293 A output, making it ideal for both variable and constant torque applications. Its integrated features are designed to simplify setup, enhance operational efficiency, and ensure reliable performance in the most demanding environments. This model, identified by Product ID 3ABD00045441-D and ABB Type Designation ACS580-01-293A-4, represents ABB's commitment to advanced motor control solutions.

Key Features

• Motor Power: 150 kW (200 HP) for high-performance applications.
• Input Voltage: 380–480 V AC, 3-phase, ensuring broad compatibility.
• Output Current: 293 A, capable of driving demanding loads.
• Output Frequency: 0 to 500 Hz, offering extensive speed control.
• Control Methods: Advanced Scalar (V/f) and Sensorless Vector control for optimal motor management.
• Overload Capacity: Achieves 150% for 60 seconds (Heavy Duty) and 110% for 60 seconds (Normal Duty), providing robust resilience.
• Built-in EMC Filter: Category C2 integrated filter minimizes electromagnetic interference.
• Safety Function: Incorporates Safe Torque Off (STO) for enhanced operational safety.
• Communication: Features Modbus RTU (RS-485) for seamless system integration.
• User Interface: Equipped with a removable keypad and USB connection for convenient configuration and diagnostics.
• Enclosure Type: IP21 wall-mounted design suitable for standard industrial environments.
• Cooling Method: Efficient forced air cooling ensures optimal operating temperatures.

Technical Specifications

• Model Number: ACS580-01-293A-4
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -15°C to +50°C
• Dimensions (H x W x D): 770 mm x 342 mm x 285 mm
• Weight: Approximately 47 kg
• Certifications: CE, UL, cUL, ensuring compliance with international standards.

Applications

The ABB ACS580-01-293A-4 Variable Frequency Drive is a versatile solution, perfectly suited for optimizing a wide array of industrial applications, including:

• Pumps: Enhances efficiency and control for various pumping systems.
• Fans: Provides precise speed regulation for ventilation and air handling units.
• Compressors: Optimizes compressor performance for energy savings.
• Conveyors: Ensures smooth and controlled material handling.
• Mixers: Delivers accurate speed control for mixing processes.
• Centrifuges: Manages high-speed rotational applications with precision.
• General Industrial Machinery: Applicable across diverse sectors such as food and beverage, textiles, materials processing, and more.

Why Choose This Model?

The ABB ACS580-01-293A-4 stands out as an exceptional choice for industrial motor control due to its comprehensive and user-centric design. This model offers an integrated, all-in-one solution that simplifies installation and maintenance, significantly reducing operational complexities. Its advanced features facilitate simplified setup and diagnostics, minimizing downtime and maximizing productivity. Designed for robustness, this VFD delivers energy-efficient performance, translating into substantial long-term cost savings. Furthermore, its adaptability makes it suitable for a wide range of motor control tasks, providing a flexible and reliable solution for various industrial needs. Choosing the ACS580-01-293A-4 means investing in a high-quality, dependable drive that enhances control, efficiency, and safety for your critical applications.

Order Now

Secure superior motor control and energy efficiency for your operations. The ABB ACS580-01-293A-4 is available globally, backed by ABB's renowned quality assurance and comprehensive technical support. Experience the difference that a world-class variable frequency drive can make to your industrial processes. Contact us today to place your order or to learn more about how this model can benefit your specific applications.
