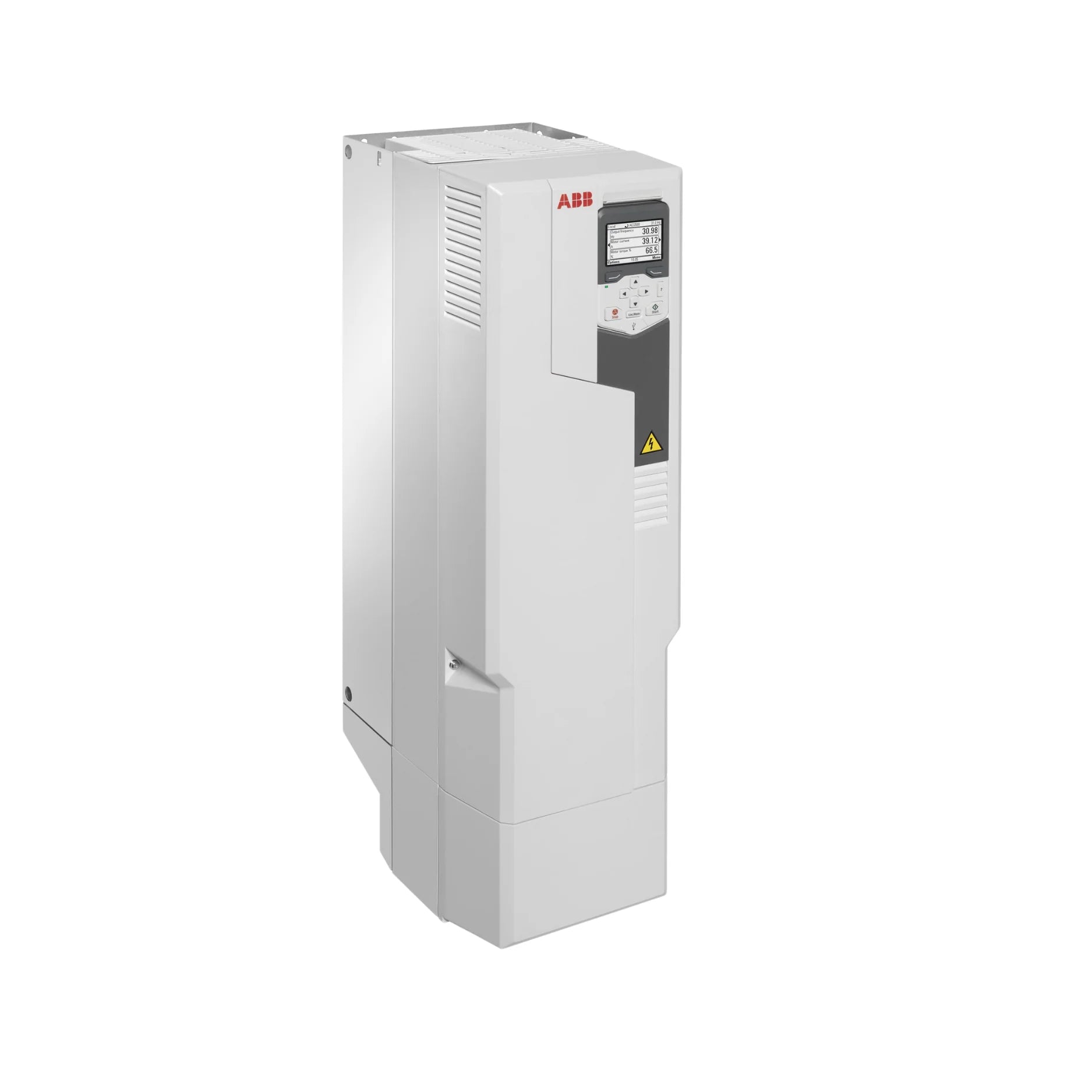

ABB ACS580-01-106A-4 | 3AUA0000080503

Overview

Unlock superior motor control and energy efficiency across your industrial operations with the ABB ACS580-01-106A-4 Variable Frequency Drive. This robust 55 kW (75 HP) VFD, part of the acclaimed ACS580 series, is engineered for seamless integration and exceptional performance in a diverse array of applications. Designed for 400V 3-phase systems and delivering a formidable 106 A output current, the ACS580-01-106A-4 simplifies complex motor management. Its IP21 wall-mounted enclosure ensures straightforward installation in standard industrial environments, while a suite of built-in features streamlines setup and guarantees reliable, high-Sperformance operation. Elevate your production efficiency and precision with ABB’s trusted technology.

Key Features

• Motor Power: 55 kW (75 HP) – Providing ample power for demanding industrial tasks.
• Input Voltage: 380–480V AC, 3-phase – Compatible with common industrial power supplies.
• Output Current: 106 A – Delivers robust current for optimal motor performance.
• Output Frequency: 0 to 500 Hz – Offers versatile speed control for various applications.
• Control Modes: V/f and Sensorless Vector Control – Ensures precise and efficient motor regulation.
• Overload Capacity:
  • Heavy Duty: 150% for 60 seconds – Ideal for applications requiring high starting torque or occasional overloads.
  • Normal Duty: 110% for 60 seconds – Suitable for typical industrial loads.
• Enclosure: IP21 (standard wall-mounted) – Provides essential protection against dust and dripping water.
• Built-in EMC Filter: Category C2 – Minimizes electromagnetic interference for cleaner operation.
• Safety Function: Safe Torque Off (STO) – Enhances operational safety by preventing unexpected motor startup.
• Communication: Modbus RTU (RS-485) – Enables easy integration into existing control systems.
• Interface: Integrated keypad and USB for PC connectivity – Facilitates intuitive programming and monitoring.
• Cooling Method: Forced air – Maintains optimal operating temperatures for longevity.

Technical Specifications

• Model Number: ACS580-01-106A-4
• Global Commercial Alias: ACS580-01-106A-4
• Product ID: 3AUA0000080503
• ABB Type Designation: ACS580-01-106A-4
• EAN: 6438177305590
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -15°C to +50°C
• Dimensions (H x W x D): 725 mm x 302 mm x 285 mm
• Weight: Approx. 29.4 kg
• Certifications: CE, UL, cUL – Assuring compliance with international standards.

Applications

The ABB ACS580-01-106A-4 is an incredibly versatile VFD, engineered to excel in a broad spectrum of industrial applications. Its adaptability and robust feature set make it an ideal choice for:

• Pumps: Optimizing flow rates and reducing energy consumption in water, wastewater, and process pumping.
• Fans: Achieving precise air movement control in HVAC systems, ventilation, and industrial drying.
• Compressors: Enhancing efficiency and extending equipment life in various compression systems.
• Conveyors: Ensuring smooth and reliable material handling with adjustable speeds.
• Mixers: Providing accurate speed regulation for consistent blending and stirring processes.
• Centrifuges: Offering precise control for separation applications.
• Extruders: Maintaining consistent output and quality in plastic and other material extrusion.

This drive is particularly well-suited for light industrial sectors such as food and beverage, plastics manufacturing, textiles, material handling, and agriculture, where reliable and efficient motor control is paramount.

Why Choose This Model?

The ABB ACS580-01-106A-4 stands out as a premier choice for industrial motor control due to its intelligent design and comprehensive feature set:

• All Essential Features Standard: Enjoy a cost-effective solution with built-in capabilities like Safe Torque Off (STO) and an EMC filter, minimizing the need for additional components and reducing overall project costs.
• Fast Setup and Reliable Performance: Engineered for user-friendliness, this VFD offers quick commissioning and consistent, dependable operation, reducing downtime and maximizing productivity. Its integrated features simplify complex tasks, making it easy to get your systems up and running.
• Efficient Motor Control for a Wide Range of Applications: Whether managing constant or variable torque loads, the ACS580-01-106A-4 provides precise control, leading to significant energy savings and extended motor lifespan.
• Suitable for Light to Heavy Industrial Use: With robust overload capacities and a durable design, this drive performs exceptionally across diverse industrial demands, from routine operations to more challenging tasks.
• Simplified Integration: With Modbus RTU communication and an intuitive interface, integrating this VFD into your existing automation infrastructure is seamless.

Order Now

Experience the benefits of advanced motor control and energy efficiency with the ABB ACS580-01-106A-4 Variable Frequency Drive. This essential component for modern industrial systems is available for worldwide delivery, ensuring that your operations, wherever they are, can achieve optimal performance. Don't miss the opportunity to upgrade your control systems with a solution that offers unmatched reliability, precision, and ease of use. Explore the full range of ABB Variable Frequency Drives to find the perfect match for your industrial needs.
