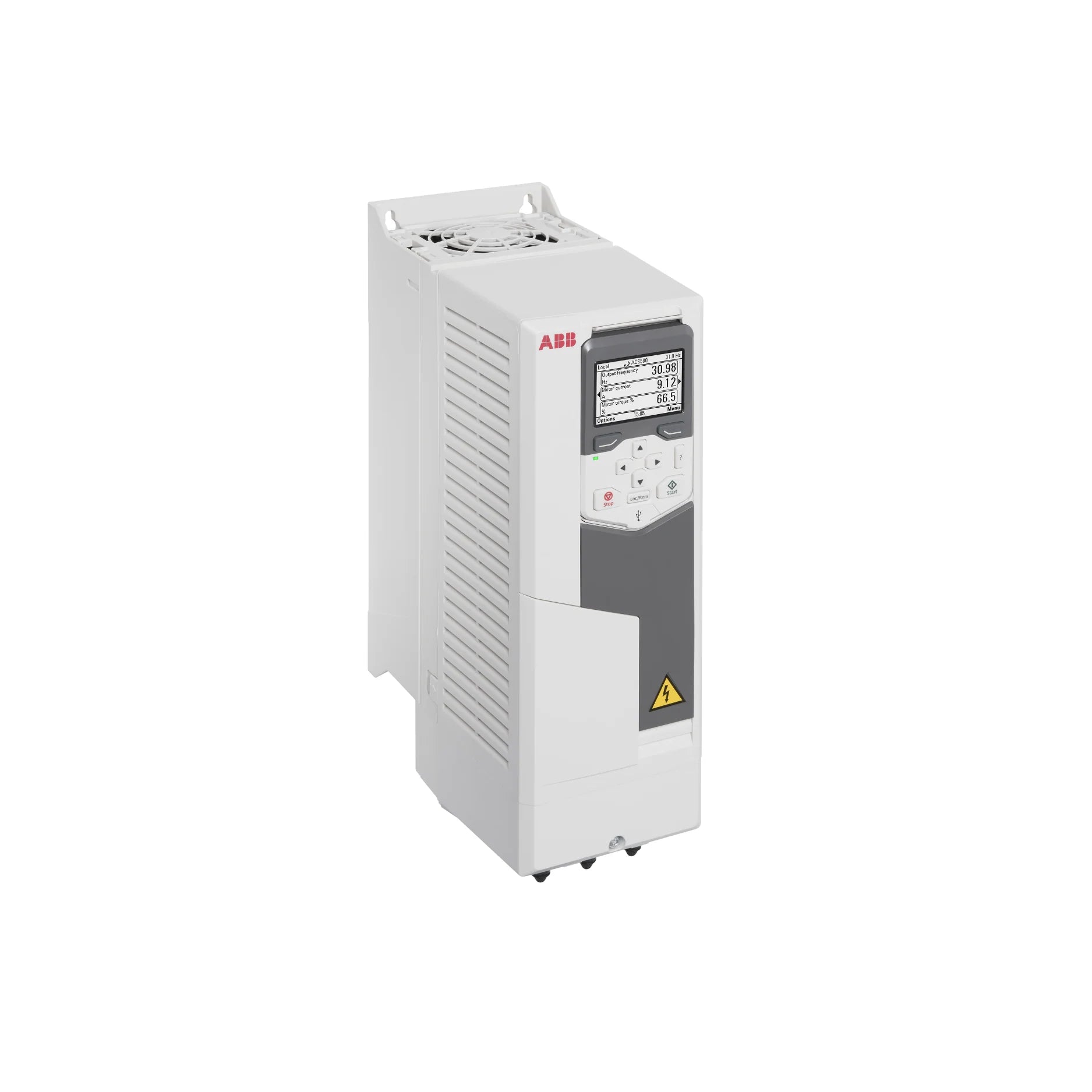

ABB ACS580-01-09A5-4 | 3AXD50000038952

Overview

Elevate your industrial applications with the ABB ACS580-01-09A5-4, a high-performance 4 kW (5 HP) wall-mounted variable frequency drive from the renowned ACS580 series. Engineered for reliability and efficiency, this VFD is meticulously designed to control a vast array of motors across numerous industrial sectors, including pumps, fans, compressors, and conveyors. With a robust 400V 3-phase input, a formidable 9.5 A output current, and an IP21 protection rating, the ACS580-01-09A5-4 integrates all essential features directly into its compact design, streamlining both setup and ongoing operation. Its advanced capabilities contribute to significant energy savings and precise motor control, making it an indispensable component for modern industrial automation.

Key Features

• Motor Power: 4 kW (5 HP) for versatile application suitability.
• Input Voltage: 380–480 V AC, 3-phase, ensuring broad compatibility with industrial power grids.
• Output Current: 9.5 A, providing ample power for demanding motor control.
• Frequency Range: A wide 0–500 Hz, offering precise speed control for various processes.
• Control Modes: V/f and Sensorless Vector Control for optimal motor performance and efficiency.
• Enclosure: IP21 rated, indicating protection against solid objects greater than 12.5mm and vertically falling drops of water, suitable for wall-mounted installations.
• Built-in EMC Filter: Category C2 integrated filter minimizes electromagnetic interference, ensuring system stability.
• Safety Function: Integrated Safe Torque Off (STO) for enhanced operational safety and compliance.
• Interface: Intuitive keypad with convenient USB connectivity for easy configuration and monitoring.
• Communication: Standard Modbus RTU (RS-485) support, with expandable options for various Fieldbus protocols, facilitating seamless integration into existing control systems.
• Energy Efficiency: Incorporates advanced features designed to optimize motor control and significantly reduce energy consumption.

Technical Specifications

• Model Number: ACS580-01-09A5-4
• Product ID: 3AXD50000038952
• ABB Type Designation: ACS580-01-09A5-4
• EAN: 6438177459224
• Input Frequency: 50/60 Hz
• Analog Inputs: 2, for flexible sensor integration.
• Digital Inputs: 6, enabling comprehensive control signal management.
• Analog Outputs: 2, for feedback and control to other devices.
• Relay Outputs: 3, providing versatile control options.
• Operating Temperature: -15°C to +50°C, ensuring reliable performance in diverse industrial environments.
• Protection Rating: IP21
• Dimensions (H x W x D): Approx. 443 mm x 203 mm x 229 mm (This compact size allows for efficient panel space utilization).
• Weight: Approx. 9.5 kg
• Certifications: CE, UL, cUL, guaranteeing compliance with international safety and quality standards.

Applications

The ABB ACS580-01-09A5-4 is a highly adaptable variable frequency drive perfectly suited for a broad spectrum of industrial applications where precise motor control and energy efficiency are paramount. Its robust design and feature set make it an ideal choice for:

• Pumps: Optimizes flow rates and reduces energy consumption in water and wastewater treatment, HVAC, and industrial pumping systems.
• Fans: Enhances air circulation, improves environmental control, and saves energy in ventilation systems, cooling towers, and industrial fans.
• Compressors: Provides efficient control of air compressors, leading to energy savings and extended equipment life.
• Conveyors: Ensures smooth and controlled material handling, improving production line efficiency and reducing mechanical stress.
• HVAC Systems: Delivers precise control for heating, ventilation, and air conditioning applications, optimizing comfort and energy use.
• General Industrial Automation: A reliable workhorse for various other industrial processes requiring variable speed control and robust performance.

Why Choose This Model?

The ABB ACS580-01-09A5-4 stands out as a superior choice for industrial motor control due to its comprehensive and integrated design. This model offers an all-in-one drive solution, meaning critical functionalities like Safe Torque Off (STO) and an EMC filter are built-in, simplifying installation and reducing the need for external components. It is expertly engineered to support both variable and constant torque loads, providing unmatched flexibility across diverse application requirements. Users benefit from high efficiency and consistently reliable performance, ensuring operational continuity and maximizing productivity. Furthermore, its compact, panel-ready design with IP21 protection streamlines integration into new or existing systems, making commissioning swift and straightforward. Choosing the ACS580-01-09A5-4 means investing in a future-proof solution that delivers exceptional value, operational safety, and energy savings.
