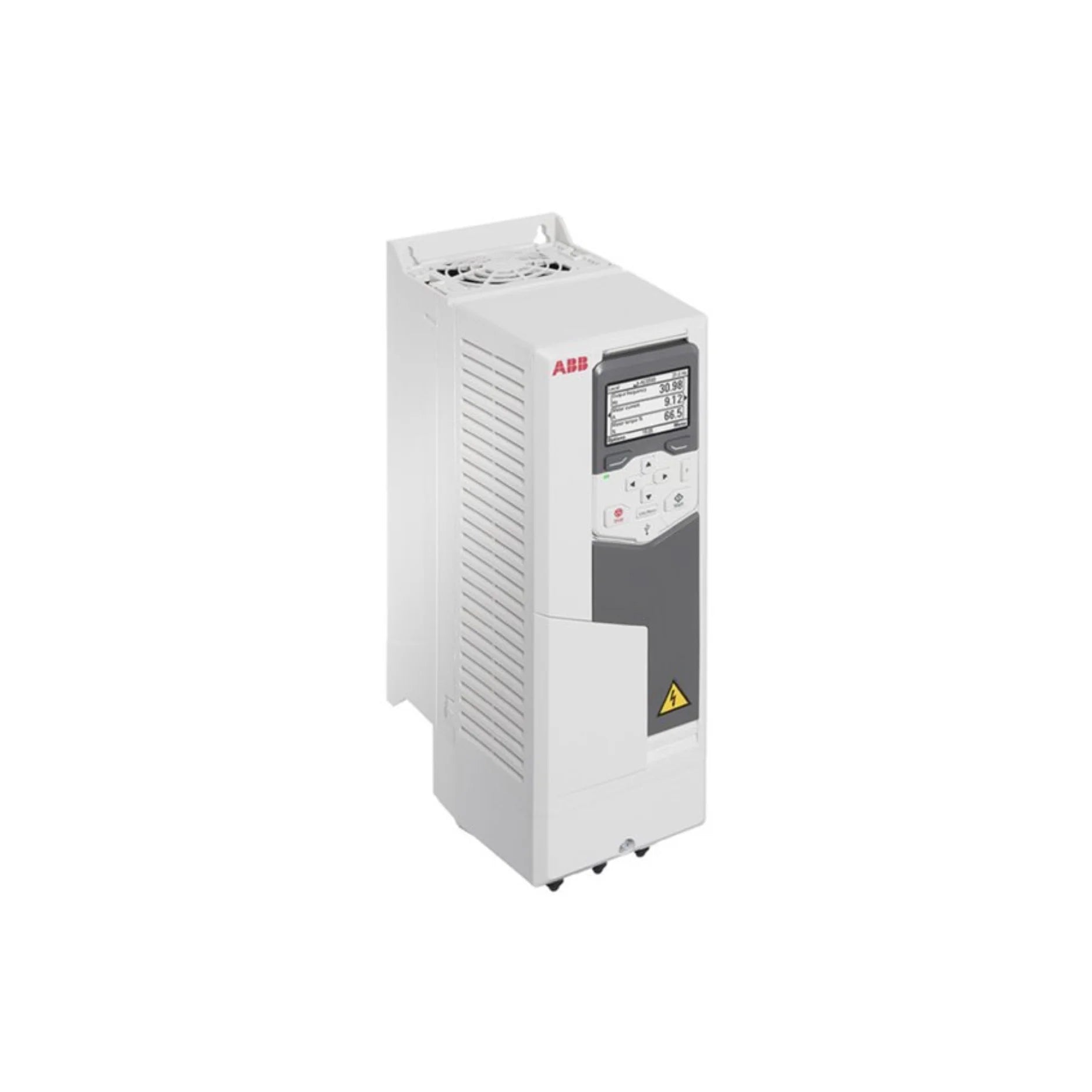

ABB ACS580-01-05A7-4 | 3AXD50000038940

Overview

Unlock superior motor control and energy efficiency across a wide range of industrial applications with the ABB ACS580-01-05A7-4 variable frequency drive. As part of ABB’s renowned ACS580 series, this 2.2 kW (3 HP) VFD is engineered to optimize the speed and torque of motors in both constant and variable torque scenarios. Designed for demanding industrial environments, it features robust 380–480V 3-phase input capabilities and an IP21-rated enclosure, ensuring reliable performance and protection.

The ACS580-01-05A7-4 (Product ID: 3AXD50000038940) stands out as a versatile and "all-compatible" drive, simplifying complex motor control tasks. Its thoughtful design integrates essential functionalities, including a built-in electromagnetic compatibility (EMC) filter and Safe Torque Off (STO) function, delivering a comprehensive solution right out of the box. Experience reduced energy consumption, enhanced operational efficiency, and streamlined system integration with this advanced wall-mounted drive from ABB.

Key Features

• Motor Power: 2.2 kW (3 HP) – Ideal for a broad spectrum of industrial motors.
• Input Voltage: 380–480V AC, 3-phase – Ensures compatibility with standard industrial power supplies.
• Output Current: 5.6 A – Delivers precise and consistent power output for optimal motor performance.
• Output Frequency: 0 to 500 Hz – Provides flexible speed control for diverse application requirements.
• Control Methods: Scalar (V/f) and Sensorless Vector – Offers versatile control strategies for various motor types.
• Overload Capacity:
  • Heavy Duty: 150% for 60 seconds – Guarantees robust performance during peak loads.
  • Normal Duty: 110% for 60 seconds – Maintains stable operation under typical demanding conditions.
• Built-in EMC Filter: Category C2 – Minimizes electromagnetic interference, ensuring system reliability.
• Safety Function: Safe Torque Off (STO) – Enhances operational safety by preventing unexpected motor startup.
• Communication: Modbus RTU (RS-485) – Facilitates seamless integration into existing control systems.
• User Interface: Removable keypad with USB connection – Offers intuitive setup and easy parameter adjustment.
• Enclosure Type: IP21 wall-mounted – Provides protection against solid objects larger than 12.5mm and dripping water.
• Cooling Method: Forced air cooling – Ensures optimal temperatures and extends operational life.

Technical Specifications

• Model Number: ACS580-01-05A7-4
• Global Commercial Alias: ACS580-01-05A7-4
• Product ID: 3AXD50000038940
• ABB Type Designation: ACS580-01-05A7-4
• Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 2.2 kW, 5.6 A (ACS580-01-05A7-4)
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -15°C to +50°C
• Dimensions (H x W x D): 390 mm x 125 mm x 221 mm
• Weight: Approximately 4.5 kg
• Certifications: CE, UL, cUL

Applications

The ABB ACS580-01-05A7-4 variable frequency drive is a versatile solution suitable for optimizing motor control across a broad spectrum of industrial applications, including:

• Pumps: Enhances efficiency and extends the lifespan of pumping systems.
• Fans: Provides precise airflow control for ventilation and cooling systems.
• Compressors: Improves energy efficiency and reduces wear in compressor operations.
• Conveyors: Ensures smooth and controlled material handling.
• Mixers: Offers accurate speed regulation for various mixing processes.
• Industrial Machinery: Optimizes performance and reduces energy consumption in a wide array of manufacturing equipment.
• HVAC Systems: Delivers energy savings and improved comfort in heating, ventilation, and air conditioning applications.

Why Choose This Model?

The ABB ACS580-01-05A7-4 is not just a variable frequency drive; it’s an intelligent investment in your operational efficiency and reliability. Here’s why it stands out:

• All-in-One Functionality: With integrated EMC filtering and Safe Torque Off (STO), this drive offers a complete, ready-to-deploy solution, minimizing the need for external components and simplifying installation.
• Plug-and-Play Installation: Designed for user convenience, its intuitive interface and removable keypad with USB connectivity make setup and parameter adjustments remarkably straightforward, saving valuable time and resources.
• Energy-Efficient Performance: ABB’s commitment to sustainability is evident in this drive, which significantly reduces energy consumption and operational costs by precisely matching motor speed to application demands.
• Reliable and Robust: Built with high-quality components and IP21-rated protection, the ACS580-01-05A7-4 is engineered for durability and consistent performance in challenging industrial environments.
• Perfect for General-Purpose Motor Control: Its versatility makes it an ideal choice for a wide range of general-purpose motor control applications across various industries, offering exceptional value and adaptability.

Order Now

Ready to enhance your industrial motor control with the reliable and energy-efficient ABB ACS580-01-05A7-4 variable frequency drive? This exceptional product is available for worldwide delivery, bringing ABB's renowned quality directly to your operations.
