ABB ACS580-01-033A-4 | 3ABD50000038961

Overview

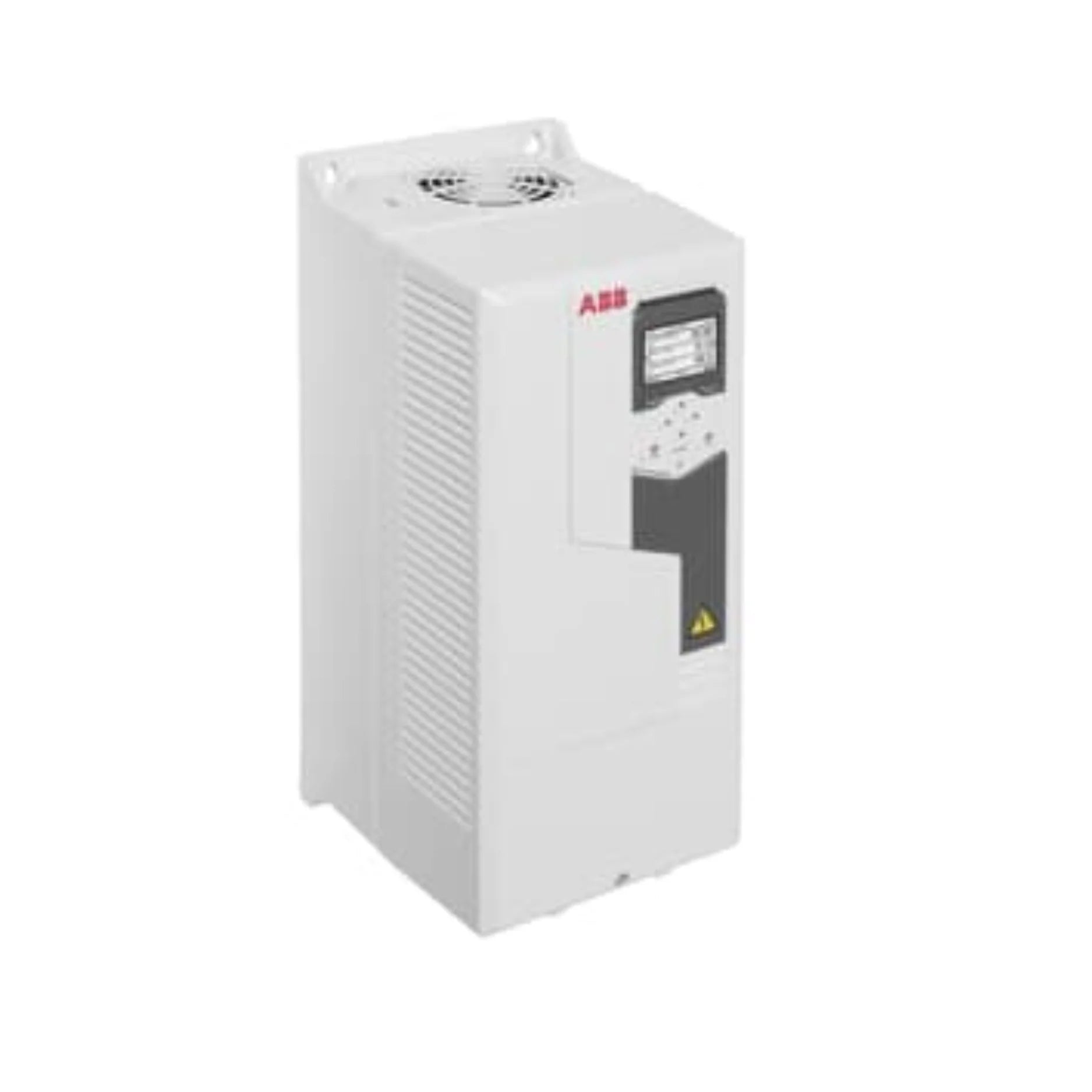

The ABB ACS580-01-033A-4 is a top-tier 15 kW (20 HP) variable frequency drive (VFD) engineered for superior motor control in a multitude of industrial settings. As a key component in the renowned ACS580 series, this drive delivers unparalleled scalability and energy efficiency for both variable and constant torque applications. Designed to operate with a 380–480V 3-phase input and boasting an IP21 protection rating, it ensures reliable performance even in demanding environments. Its comprehensive suite of built-in features streamlines integration, making it an ideal solution for modern industrial automation.

This general-purpose, wall-mounted VFD is designed for versatility and ease of use. It incorporates advanced control methods like Scalar (V/f) and Sensorless Vector, ensuring precise and responsive motor operation. From optimizing energy consumption in pumping systems to enhancing the precision of conveyor belts, the ACS580-01-033A-4 provides a robust and intelligent solution for sophisticated motor management.

Key Features

• Motor Power: 15 kW (20 HP)
• Input Voltage: 380–480V AC, 3-phase
• Output Current: 32 A
• Output Frequency: 0 to 500 Hz
• Control Methods: Scalar (V/f), Sensorless Vector
• Overload Capacity:

  • Heavy Duty: 150% for 60 sec
  • Normal Duty: 110% for 60 sec
• Built-in EMC Filter: Category C2
• Safety Function: Safe Torque Off (STO)
• Communication: Modbus RTU (RS-485)
• User Interface: Removable keypad with USB PC connection
• Enclosure Type: IP21 wall-mounted
• Cooling Method: Forced air cooling

Technical Specifications

• Model Number: ACS580-01-033A-4
• Product ID: 3ABD50000038961
• ABB Type Designation: ACS580-01-033A-4
• Output Current: 32 A (ND) / 25 A (HD)
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -15°C to +50°C
• Dimensions (H x W x D): 490 mm x 203 mm x 229 mm
• Weight: Approximately 11.8 kg
• Certifications: CE, UL, cUL

Applications

The ABB ACS580-01-033A-4 is an incredibly versatile VFD, making it suitable for optimizing a broad spectrum of industrial applications. Its robust design and intelligent control capabilities ensure peak performance and energy efficiency across various sectors. Key applications include:

• Pumps: Enhances fluid management systems by providing precise flow control and reducing energy consumption.
• Fans: Ideal for ventilation and HVAC systems, ensuring optimal airflow and significant energy savings.
• Conveyors: Provides smooth and controlled acceleration/deceleration, reducing wear and tear and improving material handling efficiency.
• Compressors: Improves efficiency and extends the lifespan of compressor systems by regulating motor speed according to demand.
• Extruders: Offers precise speed control for consistent product quality in plastics and other extrusion processes.
• Mixers: Ensures optimal mixing performance across diverse materials by allowing precise speed adjustments.
• Centrifuges: Provides accurate speed control for separation processes, enhancing efficiency and product output.

This drive is particularly well-suited for use in industries such as food and beverage, material handling, agriculture, textiles, and plastics, where reliable and efficient motor control is paramount.

Why Choose This Model?

The ABB ACS580-01-033A-4 stands out as a premier choice for industrial motor control due to its exceptional design and feature set. It embodies the reliability and innovation that ABB is known for, offering significant advantages for businesses looking to enhance their operations:

• All-in-One Functionality: This model comes standard with essential built-in features, including an Integrated electromagnetic compatibility (EMC) filter (Category C2) and Safe Torque Off (STO) functionality. This reduces the need for external components, simplifying installation, minimizing costs, and enhancing overall system safety.
• Easy Setup and Commissioning: Designed with user-friendliness in mind, the ACS580-01-033A-4 features an intuitive interface and an assistant-based configuration process. This significantly streamlines commissioning, allowing for quick deployment and reduced downtime. The removable keypad with a USB PC connection further facilitates easy parameter management and system diagnostics.
• Reliable and Energy-Efficient Performance: ABB's commitment to quality ensures that this VFD delivers dependable performance day in and day out. By precisely controlling motor speed, it minimizes energy consumption, leading to substantial operational cost savings and a reduced environmental footprint. Its robust construction ensures durability in various operating conditions.
• Supports a Wide Range of Industrial Motor Applications: From heavy-duty industrial machinery to precision process equipment, this drive is engineered to capably handle diverse motor control requirements. Its flexibility with various applications makes it a valuable asset across numerous industrial sectors, proving its adaptability and comprehensive capability.
• Robust Design: With an IP21 wall-mounted enclosure and forced air cooling, the ACS580-01-033A-4 is built to withstand challenging industrial environments, ensuring a long operational life and consistent performance.

Order Now

Elevate your industrial operations with the precision and efficiency of the ABB ACS580-01-033A-4 variable frequency drive. This high-performance VFD is ready to optimize your motor control applications globally.

We are proud to offer worldwide delivery, ensuring that you can access this essential technology no matter your location. Take the next step towards enhanced productivity and energy savings by securing your ABB ACS580-01-033A-4 today.

For more innovative solutions, explore our comprehensive ABB ACS580 General Purpose Drives collection or delve into the broader range of products in our ABB Variable Frequency Drives main category.
