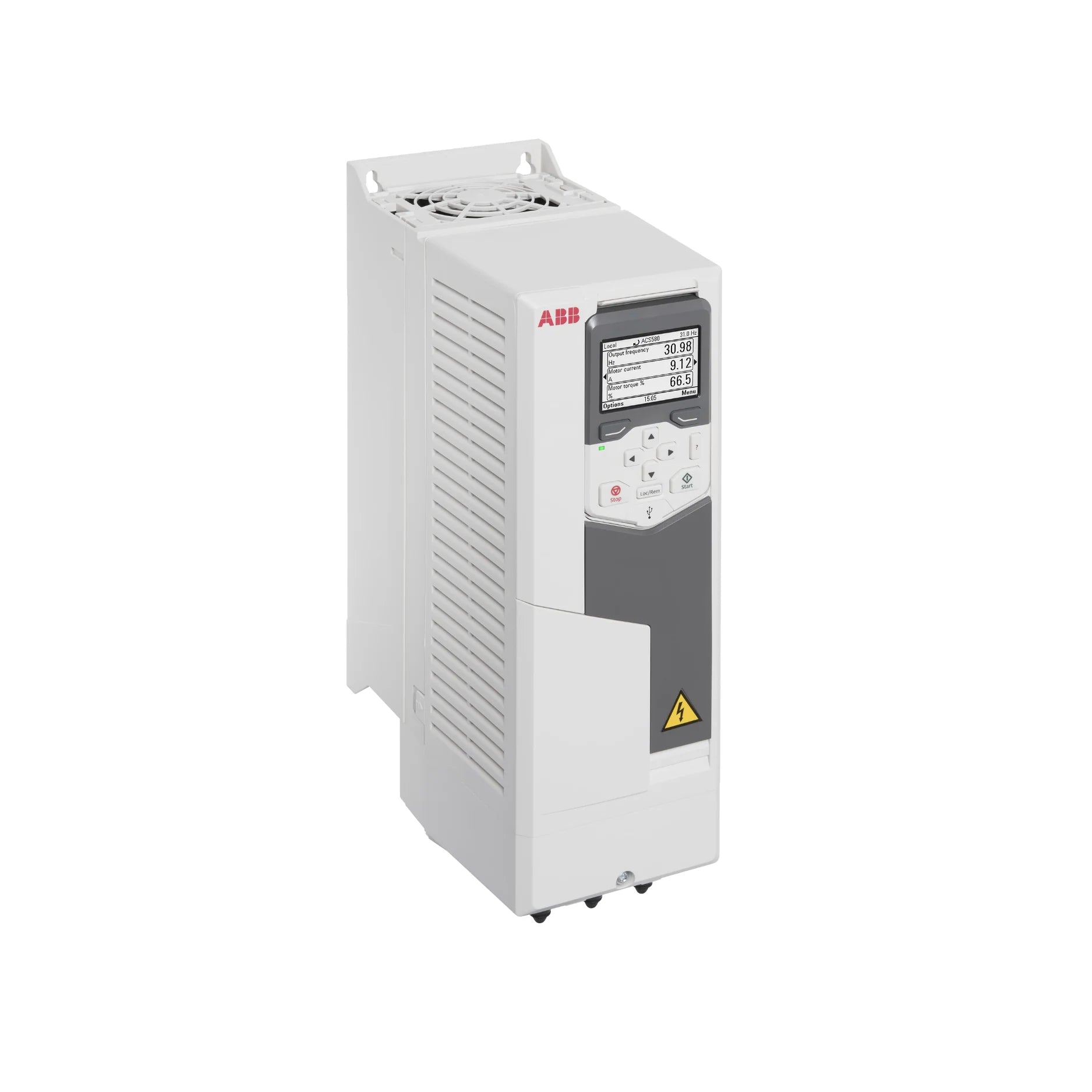

ABB ACS580-01-02A7-4 | 3AUA0000138092

Overview

The ABB ACS580-01-02A7-4 is a state-of-the-art 1.1 kW (1.5 HP) variable frequency drive (VFD) meticulously engineered for precise and efficient motor control across an extensive range of industrial applications. This robust, wall-mounted unit is designed to optimize performance for both variable and constant torque loads, ensuring smooth operation and energy savings. With its 3-phase 380–480V input and IP21 protection, the ACS580-01-02A7-4 provides reliable operation in diverse industrial environments. Integrated functionalities, including Safe Torque Off (STO) and a built-in electromagnetic compatibility (EMC) filter, streamline installation and enhance operational safety, making this VFD a versatile solution for modern industrial automation.

Key Features

• Motor Power: 1.1 kW (1.5 HP) – Ideal for a wide array of motor-driven equipment.
• Input Voltage: 380–480V AC, 3-phase – Compatible with standard industrial power supplies.
• Output Current: 2.7 A – Delivers stable current for consistent motor performance.
• Output Frequency: 0 to 500 Hz – Provides flexible speed control for various applications.
• Control Methods: Scalar (V/f), Sensorless Vector – Offers precise and efficient motor control.
• Overload Capacity: Heavy Duty: 150% for 60 sec; Normal Duty: 110% for 60 sec – Ensures reliable operation under demanding conditions.
• Built-in EMC Filter: Category C2 – Minimizes electromagnetic interference for compliant operation.
• Safety Function: Safe Torque Off (STO) – Enhances operational safety by preventing unexpected motor startup.
• Communication: Modbus RTU (RS-485) – Enables seamless integration into existing control systems.
• User Interface: Removable keypad with USB PC connection – Facilitates easy commissioning and monitoring.
• Enclosure Type: IP21 wall-mounted – Provides protection against dust and dripping water, suitable for industrial settings.
• Cooling Method: Forced air cooling – Ensures optimal operating temperatures for extended drive life.

Technical Specifications

• Model Number: ACS580-01-02A7-4
• Product ID: 3AUA0000138092
• Global Commercial Alias: ACS580-01-02A7-4
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -15°C to +50°C
• Dimensions (H x W x D): 375 mm x 125 mm x 227 mm
• Weight: Approximately 3.5 kg
• Certifications: CE, UL, cUL

Applications

The versatility and robust design of the ABB ACS580-01-02A7-4 make it an ideal choice for a broad spectrum of industrial applications, including:

• Pumps: Optimizes fluid transfer systems, reducing energy consumption and wear.
• Fans: Enables precise airflow control for ventilation and exhaust systems.
• Compressors: Enhances efficiency and extends the lifespan of air and gas compression equipment.
• Mixers: Provides accurate speed control for various mixing processes in manufacturing.
• Conveyors: Ensures smooth and controlled material handling in production lines.
• HVAC Systems: Improves energy efficiency and climate control in commercial and industrial buildings.
• Industrial Process Control: Offers reliable and adaptable motor control for a multitude of industrial processes.

Why Choose This Model?

The ABB ACS580-01-02A7-4 stands out as a superior choice for industrial motor control due to its blend of advanced features, robust construction, and user-centric design. This VFD delivers compact efficiency, making it suitable for installations where space is a premium. Its ability to support multiple motor control applications, coupled with built-in safety features like STO and integrated EMC filtering, ensures both reliable performance and regulatory compliance. The intuitive keypad and straightforward configuration assistant significantly simplify commissioning, reducing setup time and costs. Furthermore, its rugged IP21 wall-mounted enclosure guarantees durability in challenging industrial environments. Choosing the ACS580-01-02A7-4 means investing in a solution that not only streamlines operations but also contributes to long-term energy savings and enhanced safety.
