ABB ACS580-01-026A-4 | 3AXD50000038960

Overview

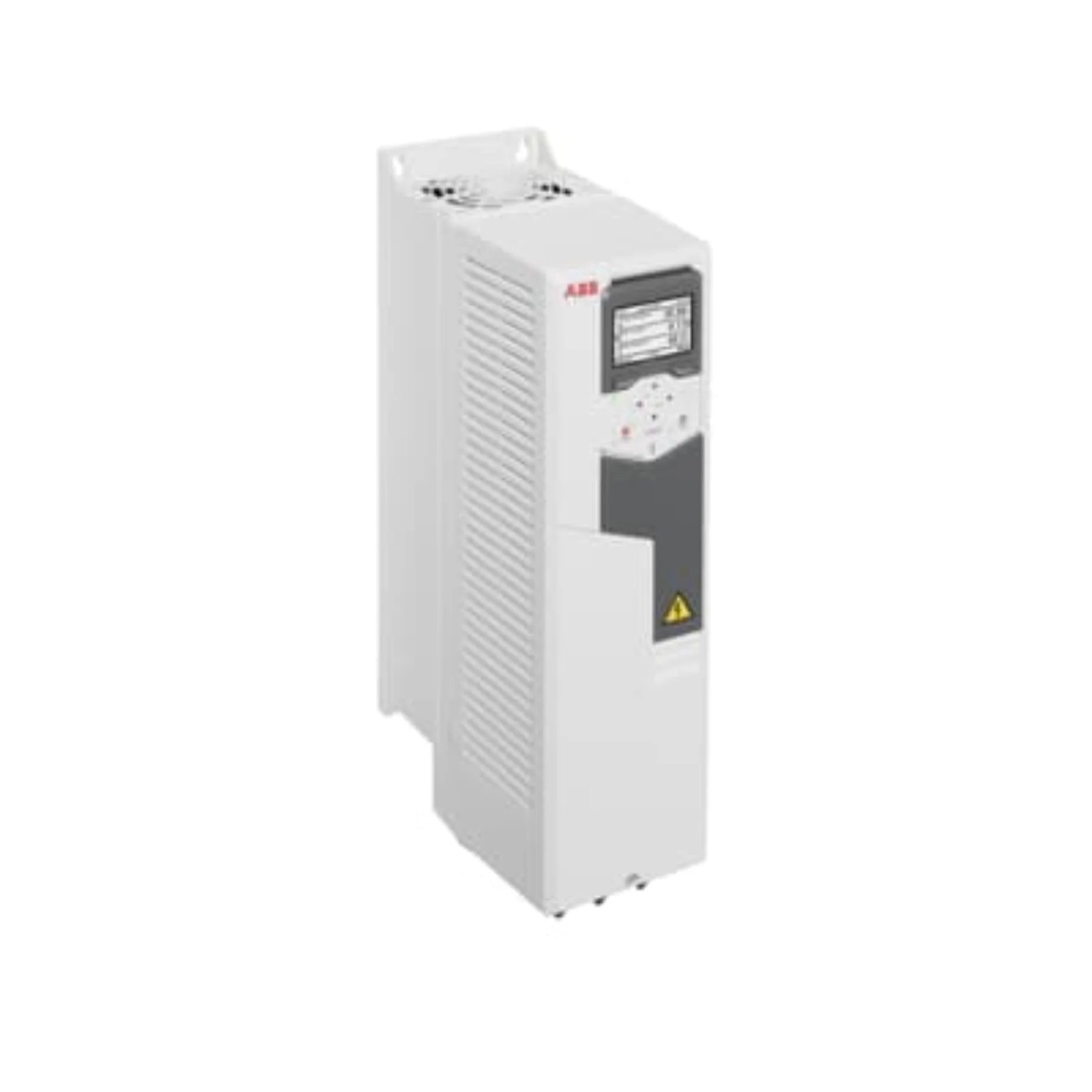

The ABB ACS580-01-026A-4 is a robust and versatile 11 kW (15 HP) variable frequency drive engineered to optimize motor control across a multitude of industrial applications. As a cornerstone of the acclaimed ACS580 series, this general-purpose VFD is meticulously designed for both constant and variable torque demands, making it an ideal solution for critical equipment such as pumps, fans, conveyors, and sophisticated mixers. Operating with a 400V 3-phase input and delivering a potent 25 A output, this wall-mounted unit boasts an IP21 enclosure, ensuring protection in various operational environments. Its integrated feature set significantly streamlines installation and commissioning processes, reducing the need for external components and accelerating deployment.

Key Features

• Motor Power: 11 kW (15 HP) – Providing ample power for a wide range of industrial equipment.
• Input Voltage: 380–480V AC, 3-phase – Compatible with standard industrial power supplies.
• Output Current: 25 A – Delivering stable and efficient power to connected motors.
• Output Frequency: 0 to 500 Hz – Offering precise speed control for diverse applications.
• Overload Capacity: Optimised for demanding tasks with 150% for 60 seconds (Heavy Duty) and 110% for 60 seconds (Normal Duty).
• Control Modes: Supports both Scalar (V/f) and Sensorless Vector control for versatile motor management.
• Safety Function: Integrated Safe Torque Off (STO) for enhanced operational safety.
• EMC Filter: Built-in Category C2 EMC filter minimizes electromagnetic interference.
• Communication: Features Modbus RTU via RS-485 for seamless integration into existing control systems.
• User Interface: Equipped with an intuitive integrated keypad and USB connectivity for PC-based configuration.
• Enclosure Type: IP21 wall-mounted design, offering protection against solid objects and vertically falling drops of water.
• Cooling: Efficient forced air cooling ensures reliable performance under various operating conditions.

Technical Specifications

• Model Number: ACS580-01-026A-4
• Global Commercial Alias: ACS580-01-026A-4
• Product ID: 3AXD50000038960
• ABB Type Designation: ACS580-01-026A-4
• EAN: 6438177459255
• Output Current: 25 A
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -15°C to +50°C
• Dimensions (H x W x D): 490 mm x 203 mm x 229 mm
• Weight: Approximately 10.5 kg
• Certifications: CE, UL, cUL – Ensuring compliance with international standards.

Applications

The flexibility and robust design of the ABB ACS580-01-026A-4 make it suitable for a vast array of industrial applications, significantly improving operational efficiency and control for:

• Pumps: Optimizing fluid transfer and pressure control.
• Fans: Enhancing ventilation and air handling systems.
• Compressors: Managing air and gas compression processes with precision.
• Conveyors: Ensuring smooth and controlled material transport.
• Mixers: Regulating agitation speeds for consistent product quality.
• Extruders: Controlling extrusion processes in plastics and other industries.
• Centrifuges: Providing precise speed control for separation processes.

This drive is particularly well-suited for diverse industries including food and beverage processing, plastics manufacturing, textile production, agricultural machinery, and various material handling operations where reliable and efficient motor control is paramount.

Why Choose This Model?

The ABB ACS580-01-026A-4 stands out as a superior choice for businesses seeking to enhance their industrial processes. Its integrated functionality is a key advantage, significantly reducing the need for additional external components and simplifying system architecture. This not only lowers overall costs but also minimizes potential points of failure, leading to increased reliability. The drive’s user-friendly interface, complemented by intuitive parameter menus and an integrated keypad, facilitates quick setup, commissioning, and ongoing maintenance, saving valuable time and resources. Engineered for both light and demanding industrial environments, this VFD provides reliable and precise motor control, adapting seamlessly to wide-ranging torque demands. Its robust construction and adherence to international standards (CE, UL, cUL) underscore its dependability and long-term performance, making it a smart investment for optimizing operational efficiency and productivity.

Order Now

Elevate your industrial control systems with the ABB ACS580-01-026A-4 Variable Frequency Drive. This high-performance VFD is available for worldwide delivery, ensuring that your operations, regardless of location, can benefit from ABB’s renowned quality and innovation. For more advanced protection requirements, IP55 and flange-mount versions are also available. Explore our extensive collection of ABB ACS580 General Purpose Drives or delve into the broader range within the ABB Variable Frequency Drives main category to find the perfect solution for your specific needs.
