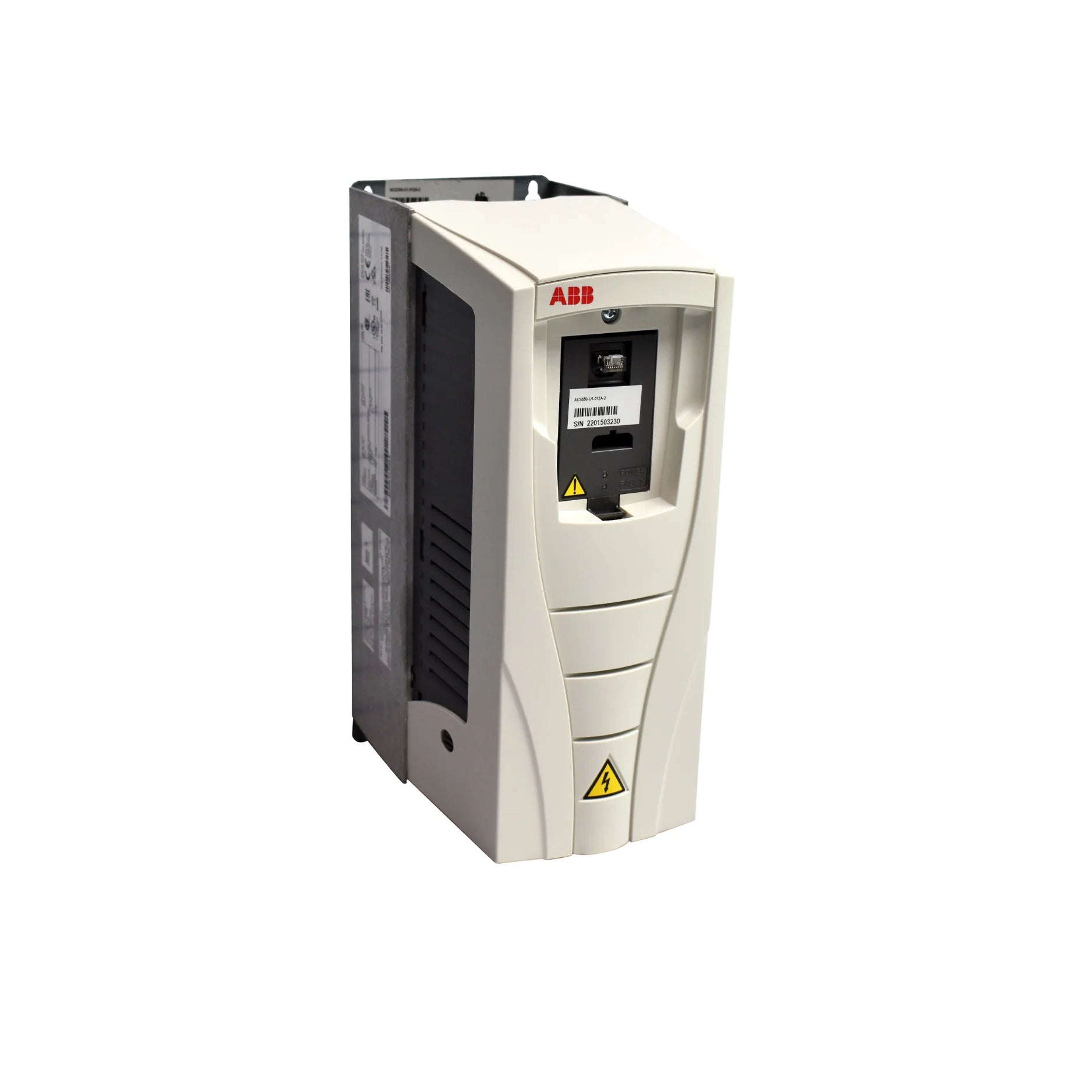

ABB ACS550-U1-078A-4 | 3AUA0000009443

Overview

The ABB ACS550-U1-078A-4, identified by Product ID 3AUA0000009443, is a high-performance 50 HP variable frequency drive (VFD) meticulously engineered for diverse industrial and commercial motor control applications. This robust unit delivers reliable and energy-efficient operation for 3-phase, 380–480 V systems, making it an ideal choice for enhancing productivity and reducing operational costs. Its compact IP21 wall-mountable design ensures seamless integration into a wide range of environments, even where space is at a premium.

As part of ABB's esteemed ACS550 series, this general-purpose AC drive combines advanced functionality with user-friendly features. From its integrated safety functions like Safe Torque Off (STO) to its built-in EMC filter, the ACS550-U1-078A-4 is designed to meet the rigorous demands of modern automation, providing precise motor control and safeguarding your operations.

Key Features

• Motor Power: 37 kW (50 HP) – Optimally controls powerful industrial motors.
• Input Voltage: 380–480 V AC, 3-phase – Compatible with standard industrial power supplies.
• Output Current: 78 A – Delivers robust current for demanding applications.
• Output Frequency: 0 to 500 Hz – Provides wide-ranging speed control flexibility.
• Control Methods: Scalar (V/f), Sensorless Vector – Offers versatile motor control strategies for various loads.
• Overload Capacity:
  • Heavy Duty: 150% for 60 sec – Handles temporary peak loads with ease.
  • Normal Duty: 110% for 60 sec – Ensures stable operation under typical conditions.
• Built-in EMC Filter: Category C2 – Minimizes electromagnetic interference for compliant operation.
• Safety Function: Safe Torque Off (STO) – Enhances operator safety and simplifies machine design.
• Communication: Modbus RTU (RS-485) – Enables seamless integration into existing control networks.
• User Interface: Integrated keypad with navigation assistant – Facilitates easy setup and monitoring.
• Enclosure Type: IP21 wall-mounted – Provides protection against dust and dripping water, suitable for indoor use.
• Cooling Method: Forced air cooling – Ensures optimal performance and longevity.

Technical Specifications

• Model Number: ACS550-U1-078A-4
• Global Commercial Alias: ACS550-U1-078A-4
• Product ID: 3AUA0000009443
• ABB Type Designation: ACS550-U1-078A-4
• Input Frequency: 50/60 Hz
• Analog Inputs: 2
• Digital Inputs: 6
• Analog Outputs: 2
• Relay Outputs: 3
• Operating Temperature: -10°C to +50°C
• Dimensions (H x W x D): 600 mm x 203 mm x 229 mm
• Weight: Approx. 17.3 kg
• Certifications: CE, UL, cUL – Guarantees compliance with international standards.

Applications

The versatility and robust design of the ABB ACS550-U1-078A-4 make it suitable for a broad spectrum of industrial and commercial applications, including:

• Industrial Ventilation and HVAC: Precisely control fans and blowers for optimal air quality and energy savings.
• Pumping Systems: Enhance the efficiency and longevity of pumps in water treatment, irrigation, and industrial processes.
• Conveyor Systems: Ensure smooth and controlled material handling in manufacturing and logistics.
• General-Purpose Automation and Processing: Adaptable for various machinery requiring reliable and variable speed control.

Why Choose This Model?

The ABB ACS550-U1-078A-4 stands out as a premier choice for businesses seeking an efficient and dependable variable frequency drive:

• Powerful and Compact Solution: Expertly designed to manage 50 HP motors efficiently within a space-saving IP21 enclosure.
• Fast Installation and Configuration: The integrated keypad with navigation assistant streamlines setup, reducing commissioning time and effort.
• Integrated EMC and STO Safety: Built-in features ensure operational safety and regulatory compliance, offering peace of mind.
• Ideal for Various Industrial Applications: Its adaptability and robust performance make it a valuable asset across numerous sectors.
• Energy Efficiency: Optimize motor performance to significantly reduce energy consumption and operational costs.
• Reliability: ABB's reputation for quality and durability is embedded in every unit, ensuring long-term, trouble-free operation.

Order Now

Invest in the superior performance and reliability of the ABB ACS550-U1-078A-4 variable frequency drive. This essential component for modern industrial automation is available for global delivery, backed by comprehensive technical support and detailed documentation to ensure seamless integration and operation.
